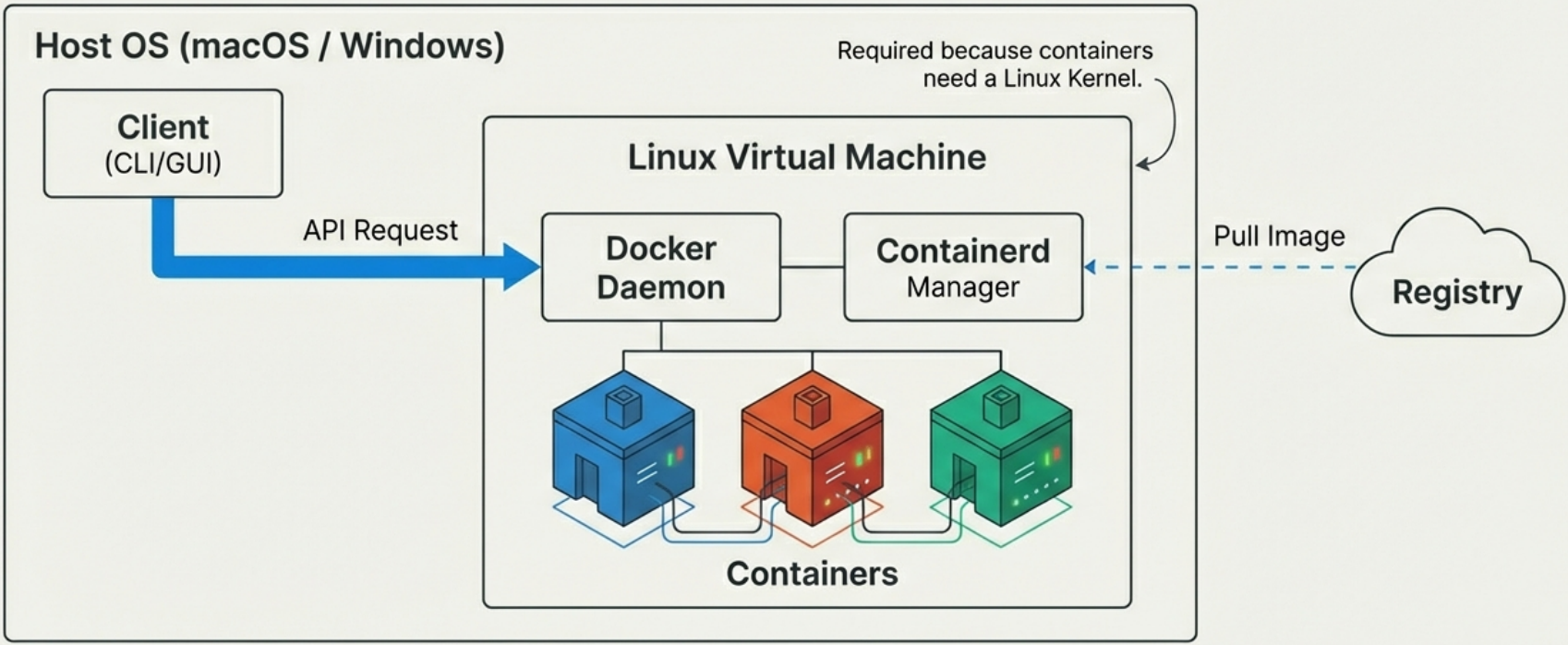

Docker Architecture

Docker uses a client-server architecture: the Docker CLI (client) converts commands into API requests and sends them to the Docker daemon (dockerd), which coordinates the actual work through a chain of specialized runtimes. The client and daemon can be on the same host or connected over a network.

---

The Delegation Chain

No single component creates a container alone. Responsibility is delegated down a chain:

Docker CLI → dockerd → containerd → shim → runc → container process

Component	Role
Docker CLI	Translates user commands into Docker API requests
dockerd	Receives API calls, coordinates the rest - no longer creates containers directly
containerd	High-level runtime - manages container lifecycle, converts images to OCI bundles
shim	Per-container process that outlives runc, keeps streams open, enables daemonless containers
runc	Low-level OCI runtime - calls the kernel to build namespaces and cgroups, then exits

For the full deep dive on each component - including history, internals, the step-by-step startup sequence, and Linux binaries - see Docker Engine.

---

Why Client-Server?

The separation of client and daemon is a deliberate design choice with real consequences:

• The daemon runs as root. dockerd needs elevated privileges to create namespaces, manage cgroups, and manipulate network interfaces. The CLI does not need to run as root - it just sends API requests.
• Remote management is a first-class feature. The daemon listens on a socket; any authorized client anywhere on the network can manage it. CI runners, Portainer, VS Code extensions - they all speak the same Docker API.
• Crash isolation. Because the daemon and the container processes are decoupled via shims, a dockerd crash or restart does not kill running containers. The shim keeps the container alive and reconnects the daemon when it comes back.

Caution

Because dockerd runs as root, access to the Docker socket is equivalent to root access on the host. A user who can run docker commands (or write to /var/run/docker.sock) can trivially escalate to root - for example, by bind-mounting / into a container. Treat Docker group membership the same as sudoers.

---

Docker Contexts

A context is a named configuration that points the Docker CLI at a specific Docker daemon. This lets you manage multiple Docker environments (local, remote server, Docker Desktop, cloud) from the same terminal without changing environment variables.

# List all configured contexts - the active one is marked with *
docker context ls

# Switch to a different context
docker context use my-remote-server

# Run any Docker command against the active context
docker ps

# Create a new context pointing at a remote daemon over SSH
docker context create my-remote-server \
  --docker "host=ssh://user@remote-host"

# Create a context for a TLS-secured remote daemon
docker context create prod \
  --docker "host=tcp://prod-host:2376,cert=~/.docker/certs/prod"

# Inspect a context
docker context inspect my-remote-server

# Remove a context
docker context rm my-remote-server

Tip

SSH contexts (host=ssh://...) are the safest way to manage a remote daemon

• they use your existing SSH key auth and don’t require opening the Docker port. No TLS certificates to manage.

Contexts in Practice

Use Case	Context setup
Local development	Default context (Docker Desktop or Engine)
Remote production server	SSH context: host=ssh://deploy@prod-host
Multiple cloud environments	Separate context per region/account
CI/CD runner	Set DOCKER_CONTEXT environment variable

# Override context for a single command without switching
docker --context my-remote-server ps

# Or use the DOCKER_CONTEXT environment variable
DOCKER_CONTEXT=my-remote-server docker ps

---

Daemonless Containers

A key architectural property of Docker’s shim-based design: running containers are not children of the daemon. The shim process (containerd-shim-runc-v2) becomes the parent of each container’s PID 1 after runc exits.

This means:

• dockerd can be stopped, updated, and restarted without touching running containers
• containerd can be upgraded independently of the containers it manages
• The container survives daemon crashes - the shim holds the I/O streams and re-reports status when the daemon reconnects

This design is what makes zero-downtime Docker daemon upgrades possible on production hosts.

---

Rootless Docker

In standard mode, dockerd runs as root. A vulnerability in the daemon, or an escaped container, gives the attacker root on the host. Rootless mode eliminates this entire threat class by running the daemon and all container processes entirely within an unprivileged user account.

How It Works

Rootless Docker uses two components to emulate the privileges normally required:

Component	Role
rootlesskit	Creates a user namespace where the current user appears as root (UID 0) inside the namespace, mapped to their real UID outside. Acts as the “outer” process that launches dockerd.
slirp4netns	Provides networking without root — implements a user-space TCP/IP stack that tunnels traffic without requiring CAP_NET_ADMIN.

The result: dockerd, containerd, runc, and every container process all run as the invoking user on the host. Inside their namespaces they appear to have root. Outside, they have no elevated privileges.

Host OS                     Rootless user namespace
───────────────────────     ───────────────────────
uid=1000 (alice)    ───▶    uid=0 (root inside namespace)
                            │
                            ├─ dockerd (as alice on host)
                            ├─ containerd (as alice on host)
                            └─ container process (as alice on host)

Installation and Setup

# Install rootless Docker (must be run as a non-root user)
# Requires: uidmap package, kernel user namespace support
dockerd-rootless-setuptool.sh install

# The daemon socket moves to the user's runtime directory
export DOCKER_HOST=unix://$XDG_RUNTIME_DIR/docker.sock
docker ps

# Start the rootless daemon as a systemd user service
systemctl --user start docker
systemctl --user enable docker   # auto-start on login

# Verify it is running rootless
docker info | grep "rootless"

Standard vs Rootless Comparison

	Standard Docker	Rootless Docker
Daemon privilege	Root (uid=0)	Non-root (invoking user)
Container isolation	Kernel namespaces	Kernel namespaces + user namespaces
Daemon compromise impact	Full host root	Limited to invoking user’s permissions
Performance	Full native	Small overhead (~3-5%) from user-namespace UID mapping
Privileged ports (<1024)	Supported	Not supported by default
Overlay networks	Supported	Not supported (use bridge networks)
AppArmor / SELinux	Full support	Limited (profile loading requires root)
--privileged containers	Works	Not supported
Best for	Servers, CI/CD runners	Shared dev machines, security-sensitive environments

What Rootless Mode Protects Against

The core security argument is daemon compromise isolation:

• In standard mode: dockerd exploited → attacker has root on the host
• In rootless mode: dockerd exploited → attacker has the invoking user’s permissions only (no /etc/shadow, no sudo, no kernel module loading)

This also protects against container escape — if a container process breaks out of its namespace, it runs as an unprivileged user on the host rather than as root.

Caution

Rootless mode does not eliminate container escapes — it limits their impact. It is a defense-in-depth layer, not a replacement for capabilities, seccomp, and AppArmor/SELinux. See Docker Security for the full layered model.

Rootless Mode vs userns-remap

These are two different mechanisms that are often confused:

	userns-remap	Rootless mode
What runs as root	dockerd still runs as root	dockerd runs as the invoking user
What is remapped	Container UIDs → unprivileged host UIDs	Everything — daemon + containers
Configuration	daemon.json option, applied by a root-owned daemon	Per-user installation, no daemon.json
Use case	Shared server where daemon must be root	Fully unprivileged development/CI environments

userns-remap is “root daemon, unprivileged containers.” Rootless mode is “unprivileged daemon + unprivileged containers.” They can coexist but target different environments.

When to Use Rootless Docker

• Shared developer machines — multiple users each run their own daemon instance; no shared root process
• Security-sensitive environments — minimizes the blast radius of daemon vulnerabilities
• CI runners on shared infrastructure — Kubernetes pods running Docker-in-Docker without privileged mode
• Avoid it when: you need overlay networks, privileged containers, AppArmor profile loading, or full-speed I/O on storage drivers

Note

Rootless mode requires Docker Engine 20.10+ and a kernel with user namespace support (CONFIG_USER_NS=y). Also requires newuidmap / newgidmap from the uidmap package. Docker Desktop runs its entire engine inside a VM and is effectively rootless by nature on macOS and Windows.

---

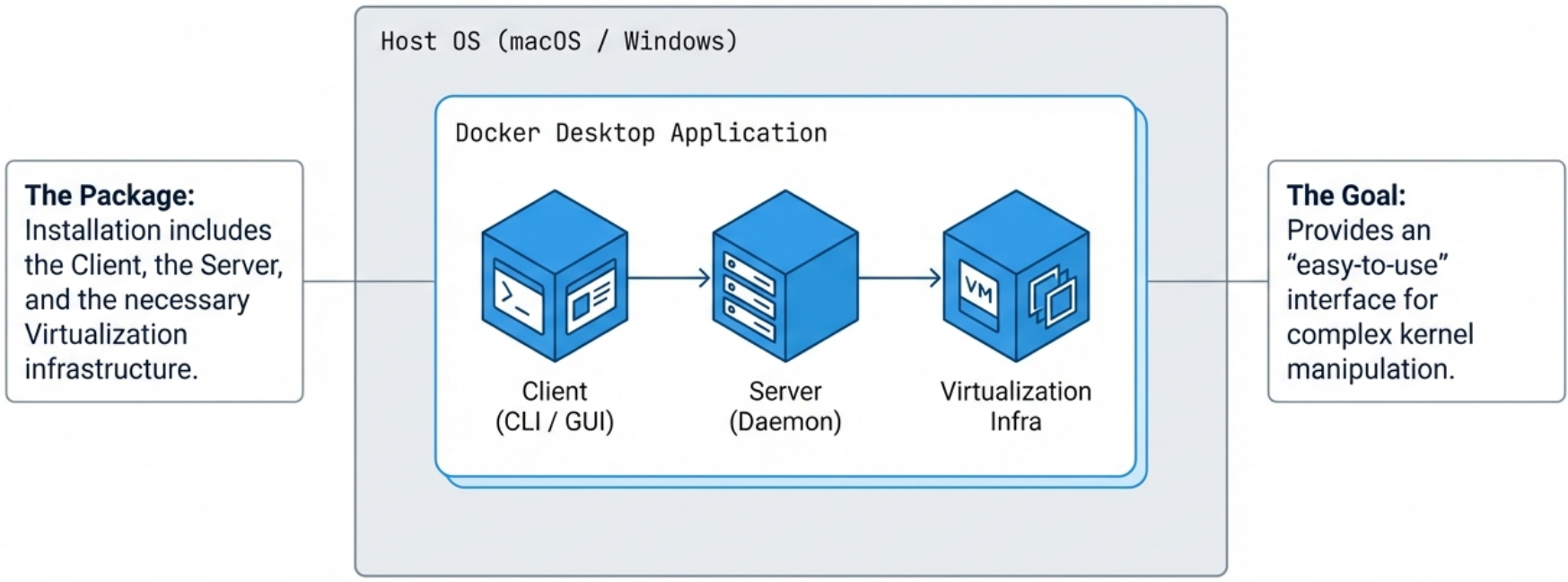

Docker Desktop

Docker Desktop is the developer-friendly distribution for macOS and Windows. It wraps Docker Engine in a Linux VM (via Apple Hypervisor / WSL2) and adds:

Component	Purpose
CLI	Standard docker commands
GUI	Manage images, containers, resource limits (CPU/memory/disk)
Credential Helper	Secure credential storage for private registries
Extensions	Third-party tools (e.g., Dive, Portainer, Trivy)
Optional Kubernetes	Single-node K8s cluster alongside Docker

Docker Engine vs Docker Desktop

	Docker Engine	Docker Desktop
OS	Linux only	macOS, Windows, Linux
License	Free (Apache 2.0)	Free for personal use; paid for large orgs
Kubernetes	Not included	Optional, single-node
GUI	None	Included
VM overhead	None	Yes (Linux VM layer)

• On Linux, prefer Docker Engine for servers and CI runners - no VM overhead, full performance.
• On macOS/Windows, Docker Desktop is the practical choice. The VM boundary means bind mounts have some performance overhead compared to native Linux.

---

How the API Works

Client and daemon communicate over a local socket by default:

• Linux: /var/run/docker.sock
• Windows: \\.\pipe\docker_engine

# Connect CLI to a remote Docker daemon
docker -H remote-host:2375 ps
export DOCKER_HOST=tcp://remote-host:2375

# The CLI is just a REST API wrapper - you can call it directly:
curl --unix-socket /var/run/docker.sock http://localhost/containers/json

Caution

Port 2375 is unauthenticated and unencrypted. Anyone who can reach it has full control of your Docker daemon - which is effectively root on the host. For remote access, use the TLS-secured port (2376) with client certificate auth, or tunnel over SSH: docker -H ssh://user@remote-host ps.

Any tool that speaks the Docker REST API - Portainer, VS Code Docker extension, CI runners - can manage Docker. The CLI is not special.
