The Transport and Application Layers

The Transport Layer

The transport layer is layer 4 in the TCP/IP model. Its job is to take data from the application layer above and deliver it to the right application on the right host - reliably (TCP) or as-fast-as-possible (UDP).

Two core responsibilities:

• Multiplexing - combining data streams from multiple sockets into one transmission channel, tagging each with a port number so the receiver knows where to send it.
• Demultiplexing - at the receiving end, reading that port number and routing each segment to the correct application socket.

Ports

A port is a 16-bit number (0-65535) that identifies which application on a host should receive incoming traffic. IP addresses get you to the right machine; ports get you to the right program.

Port Range	Category	Description
1 - 1023	System / Well-known	Reserved for standard services (HTTP, SSH, DNS). Binding requires root/admin.
1024 - 49151	User / Registered	Vendor-registered ports. Not as strict.
49152 - 65535	Ephemeral / Dynamic	OS-assigned temporary ports for outgoing client connections.

Note

Not all OSes follow the IANA boundaries exactly. Linux uses 32768-60999 as ephemeral range by default. Check /proc/sys/net/ipv4/ip_local_port_range.

Common Ports Quick Reference

Port	Protocol	Service
20 / 21	TCP	FTP (data / control)
22	TCP	SSH
23	TCP	Telnet (unencrypted - avoid)
25	TCP	SMTP (email sending)
53	TCP/UDP	DNS
67 / 68	UDP	DHCP (server / client)
80	TCP	HTTP
110	TCP	POP3
143	TCP	IMAP
443	TCP	HTTPS (TLS)
3306	TCP	MySQL
3389	TCP	RDP (Remote Desktop)
5432	TCP	PostgreSQL
6443	TCP	Kubernetes API server
8080	TCP	HTTP alternate / dev servers

Tip

Check what’s listening on a port right now:

# Linux - show all listening TCP sockets with process
ss -tlnp

# or with the old tool
netstat -tlnp

# Check what's on a specific port
ss -tlnp | grep :443
lsof -i :8080

---

TCP - The Reliable Protocol

Transmission Control Protocol (TCP) is a connection-oriented, reliable transport protocol. Before any data moves, the two sides agree to communicate. Along the way, every segment is acknowledged. Lost segments are retransmitted.

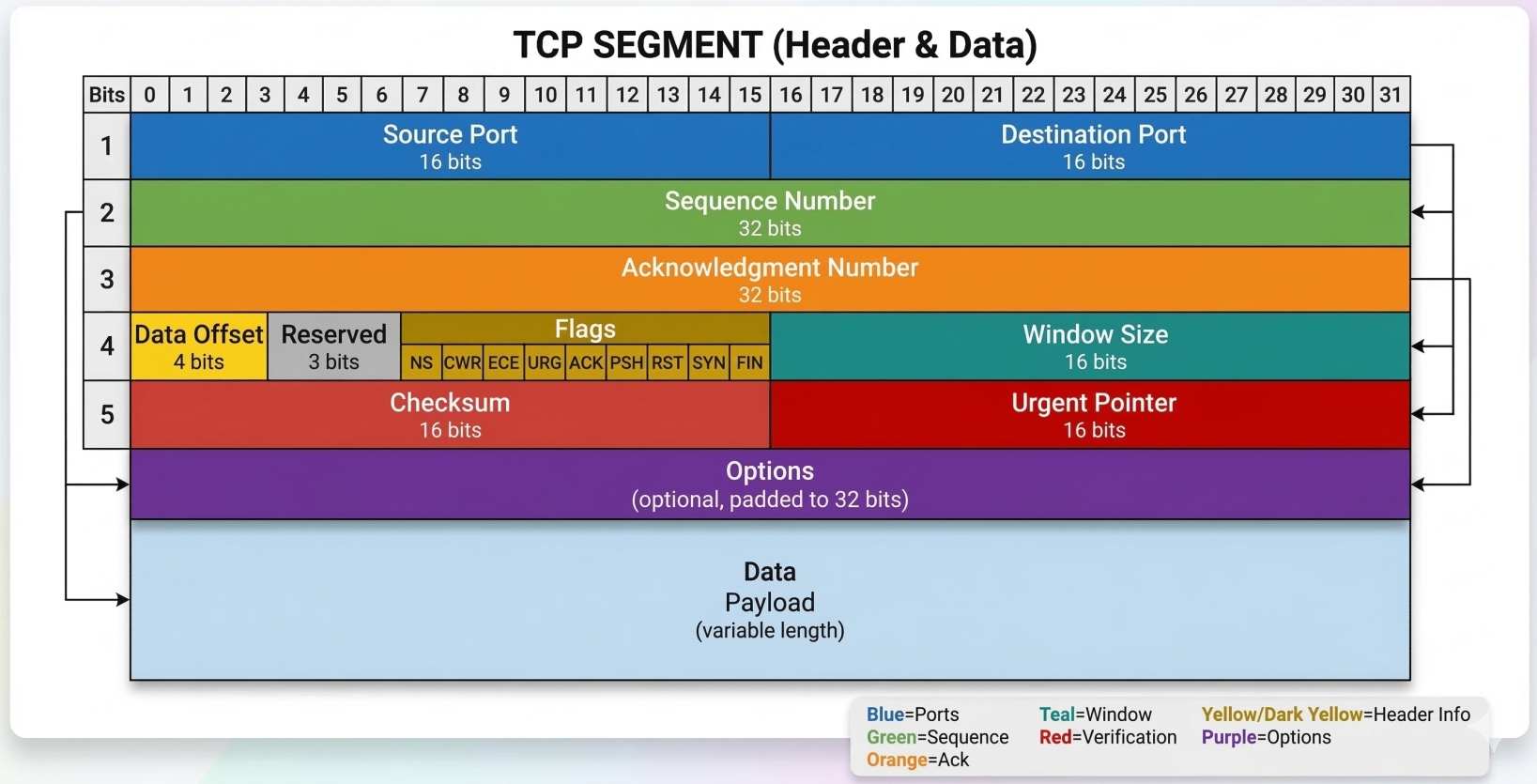

TCP Segment Structure

A TCP segment has a mandatory header followed by the data payload. The header contains 10 mandatory fields:

Field	Size	Purpose
Source Port	16 bits	Sending application’s port
Destination Port	16 bits	Receiving application’s port
Sequence Number	32 bits	Byte offset in the data stream - used for ordering
Acknowledgment Number	32 bits	Next expected byte from the other side
Header Length (Data Offset)	4 bits	Header size in 32-bit words (tells OS where data starts)
Control Flags	6-8 bits	URG, ACK, PSH, RST, SYN, FIN (+ ECE, CWR for ECN)
Window Size	16 bits	How many bytes the receiver can accept before needing an ACK (flow control)
Checksum	16 bits	Integrity check over header + data + IP pseudoheader
Urgent Pointer	16 bits	Only relevant when URG flag is set. Rarely used in practice.
Options	0-40 bytes	Extensions: MSS, Window Scaling, SACK, Timestamps

Note

Ethernet frames are typically limited to 1518 bytes (1500-byte payload = MTU). TCP splits large application data into multiple segments to fit. The sequence number tracks where each segment fits in the full data stream.

Key TCP Options:

• MSS (Maximum Segment Size) - negotiated at connection setup; the largest chunk of data TCP will send in one segment
• Window Scaling - allows the 16-bit window field to be multiplied (necessary for high-bandwidth long-distance links)
• SACK (Selective Acknowledgement) - receiver tells sender exactly which out-of-order segments were received, avoiding retransmitting already-delivered data
• Timestamps - used for RTT measurement and PAWS (Protection Against Wrapped Sequence numbers)

TCP Control Flags

Six flags you’ll see constantly:

Flag	What it does
SYN	Initiates a connection. Synchronizes sequence numbers.
ACK	Acknowledges received data. Set on almost every segment after the first SYN.
FIN	Begins graceful connection teardown. “I’m done sending.”
RST	Abruptly terminates a connection. No graceful close.
PSH	Tell the receiver: flush this to the application now, don’t buffer.
URG	Urgent data present (pointer field valid). Almost never used in practice.

---

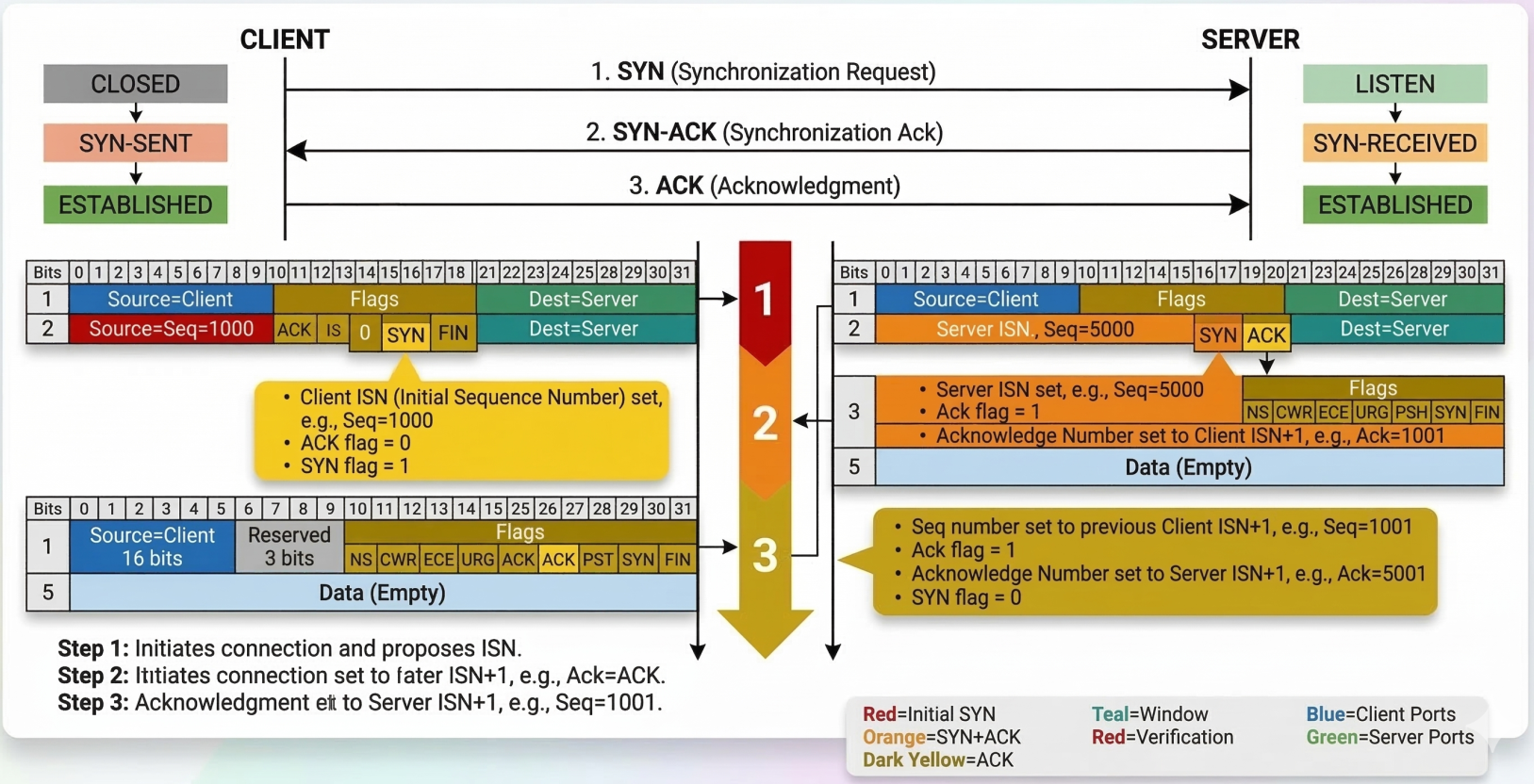

The Three-Way Handshake

TCP requires a handshake before any application data flows. The goal: both sides synchronize sequence numbers and confirm they can reach each other.

Client                          Server
  |                               |
  |------ SYN (seq=1000) -------->|   Client picks ISN (Initial Sequence Number)
  |                               |
  |<-- SYN-ACK (seq=5000,        |   Server picks its own ISN, ACKs client's SYN
  |             ack=1001) --------|
  |                               |
  |------ ACK (ack=5001) -------->|   Client ACKs server's SYN
  |                               |
  |====== Data flows now =========|

After the handshake, the connection is full-duplex - both sides can send simultaneously, and every segment gets an ACK.

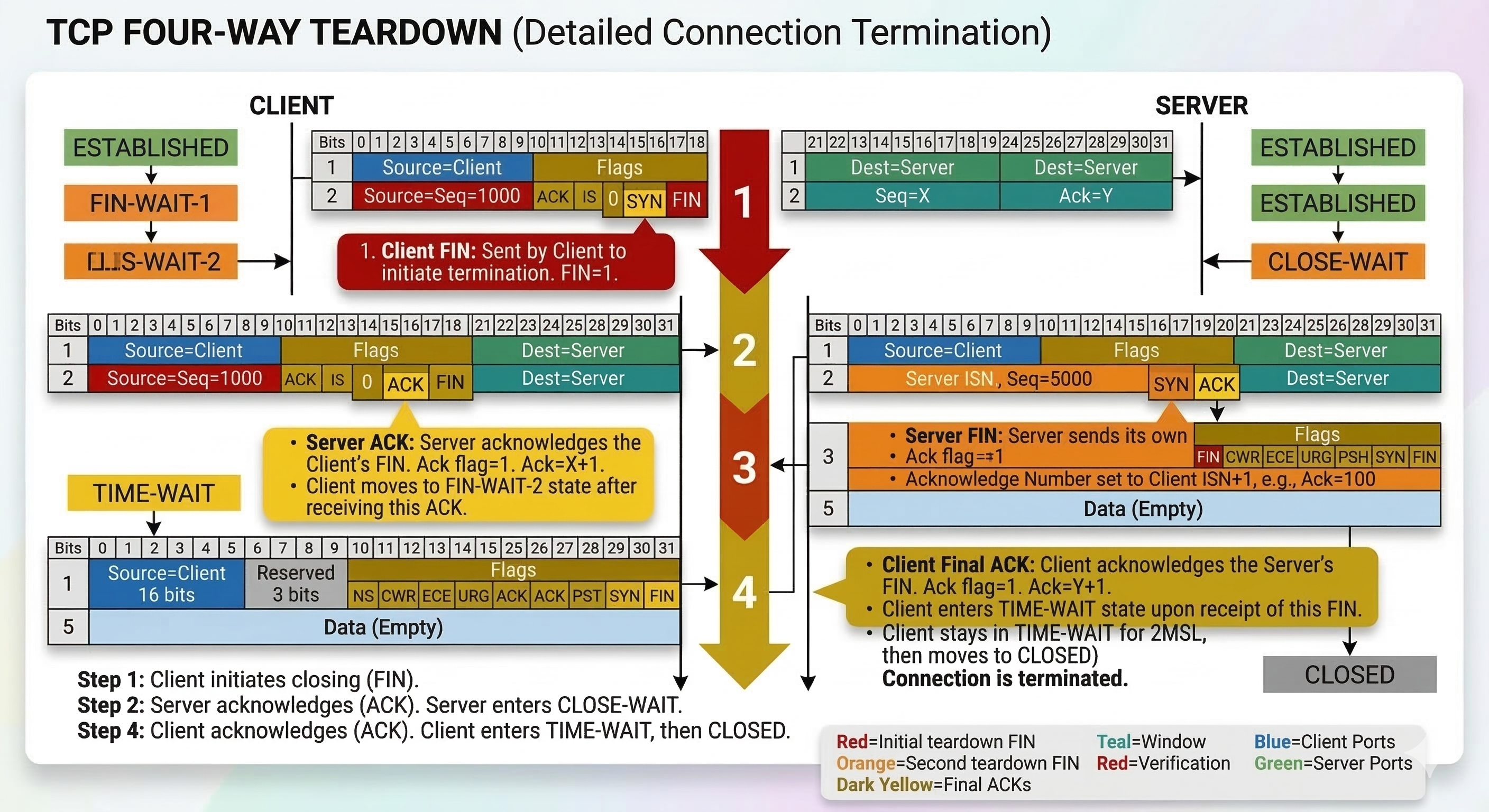

Four-Way Teardown

Closing is also graceful - each side independently signals it’s done sending:

Client                          Server
  |                               |
  |-------- FIN ----------------->|   "I'm done sending"
  |<-------- ACK -----------------|   "Got it"
  |                               |   (Server may still send data here)
  |<-------- FIN -----------------|   "I'm also done sending"
  |--------- ACK ---------------->|   "Got it"
  |                               |
  |===== Connection closed =======|

Tip

Spot a RST in Wireshark/tcpdump? That means one side rejected the connection or something went wrong - a firewall dropping packets, a service that isn’t running, or a timeout. RST is never part of a normal close.

# Capture the handshake on interface eth0, port 443
sudo tcpdump -i eth0 'tcp port 443 and (tcp-syn != 0 or tcp-fin != 0 or tcp-rst != 0)'

---

TCP Socket States

A socket is an instantiated endpoint - a port that a program has actually opened and is listening on. You can send to any port, but only get a response if a socket is open there.

TCP connections move through a state machine:

Connection Establishment States

State	Who	Meaning
CLOSED	Both	No connection exists
LISTEN	Server only	Waiting for incoming SYN
SYN-SENT	Client only	Sent SYN, waiting for SYN-ACK
SYN-RECEIVED	Server only	Got SYN, sent SYN-ACK, waiting for ACK
ESTABLISHED	Both	Connection open, data flows

Connection Termination States

State	Meaning
FIN-WAIT-1	Sent FIN, waiting for ACK
FIN-WAIT-2	Got ACK for our FIN, waiting for remote FIN
CLOSE-WAIT	Received FIN, notified application to close
LAST-ACK	Sent our FIN, waiting for final ACK
TIME-WAIT	Both sides closed; lingering to catch any late packets (lasts 2x MSL)

Tip

Diagnose real socket states:

# Show all TCP sockets and their states
ss -tan

# Filter for established connections only
ss -tan state established

# See TIME-WAIT sockets (can indicate connection teardown happening quickly)
ss -tan state time-wait | wc -l

# See what process is holding a specific socket
ss -tlnp sport = :80

Many TIME-WAIT sockets are normal for a busy web server. Thousands of CLOSE-WAIT sockets usually mean an application bug - the app received FIN but isn’t calling close().

---

TCP vs UDP

Property	TCP	UDP
Connection	Yes (3-way handshake)	No
Reliability	Guaranteed delivery + ordering	Best-effort
Overhead	Higher (headers, ACKs, retransmits)	Lower
Speed	Slower (wait for ACKs)	Faster
Flow control	Yes (window size)	No
Use cases	HTTP, SSH, FTP, databases	DNS, video streaming, VoIP, gaming

Note

UDP isn’t broken - it’s a deliberate choice. DNS uses UDP because a single request/response pair doesn’t need a handshake; if it fails, the resolver just asks again (DNS implements its own lightweight retry). Video streaming uses UDP because a dropped frame is better than a stale one.

---

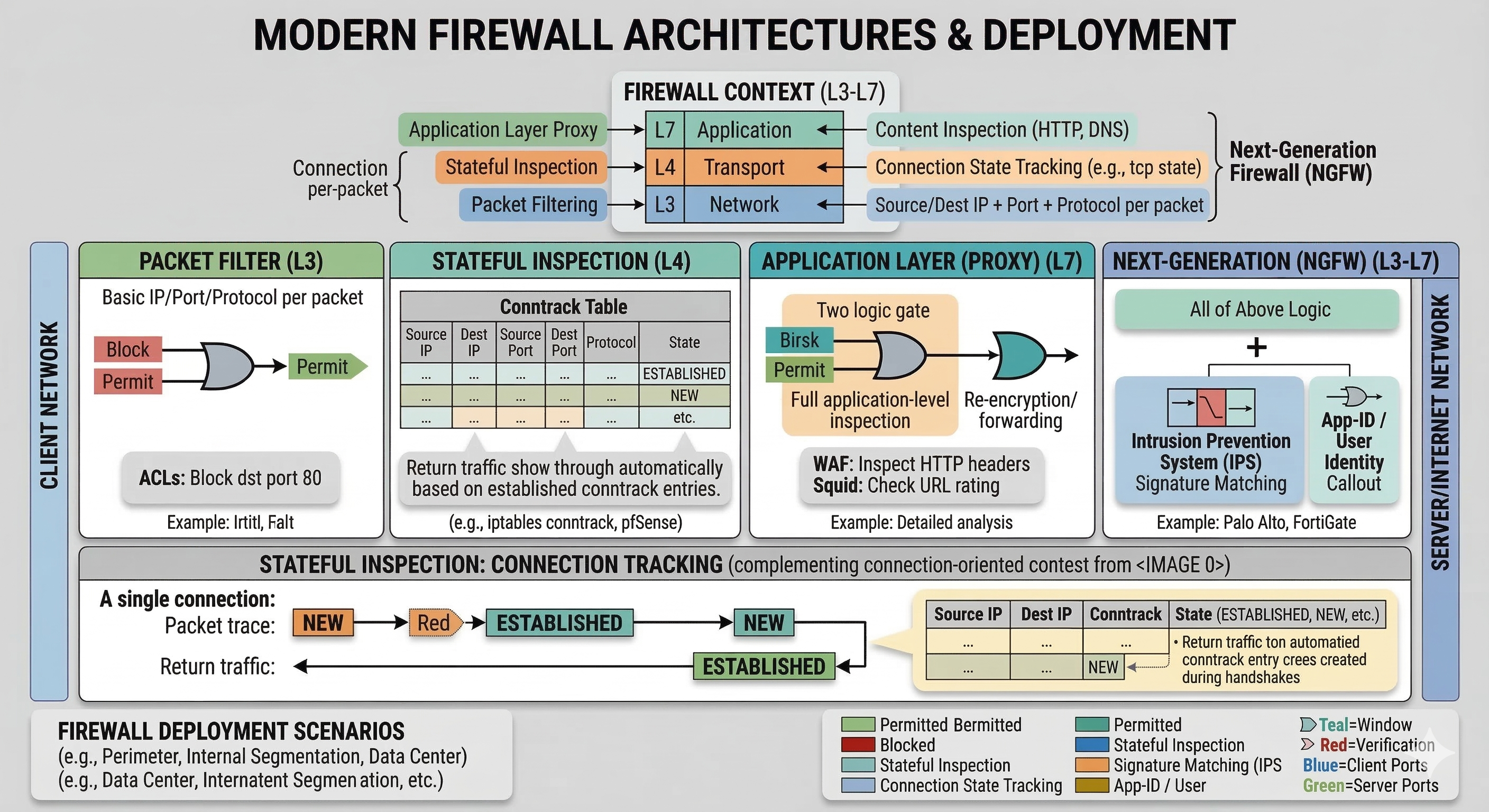

Firewalls

A firewall blocks or permits network traffic based on rules. Most commonly deployed at the transport layer, making decisions based on ports and connection state.

Firewall Types

Type	Works at	How it decides	Example
Packet filter	Network layer (L3)	Source/dest IP + port + protocol per-packet	Router ACLs
Stateful inspection	Transport layer (L4)	Tracks connection state; allows return traffic automatically	iptables conntrack, pfSense
Application layer (proxy)	Application layer (L7)	Inspects content - HTTP headers, DNS payloads	WAF, squid proxy
Next-generation (NGFW)	L3-L7	All of above + IPS, app identification, user identity	Palo Alto, FortiGate

Note

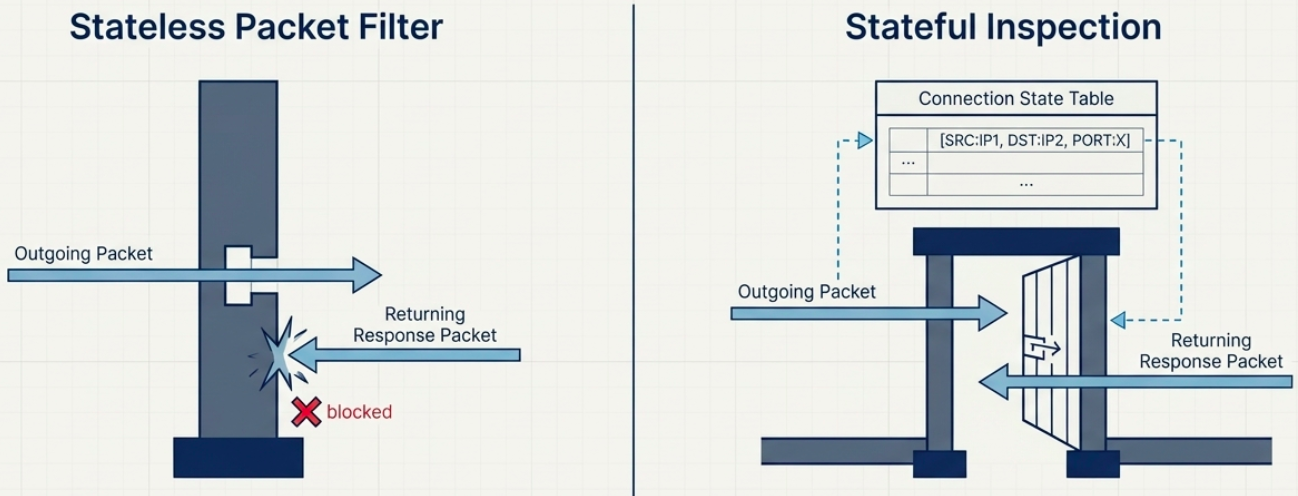

Stateful vs stateless is the critical distinction. A stateless packet filter has to explicitly allow return traffic (e.g., ESTABLISHED,RELATED rules in iptables). A stateful firewall tracks the connection table and automatically allows return packets for sessions it saw initiate.

Common Linux firewall tools:

# iptables - classic stateful firewall (older but ubiquitous)
# Allow established/related return traffic
sudo iptables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT

# Allow SSH inbound
sudo iptables -A INPUT -p tcp --dport 22 -j ACCEPT

# nftables - modern replacement for iptables
# List all rules
sudo nft list ruleset

# ufw - user-friendly frontend for iptables (Ubuntu/Debian)
sudo ufw allow 22/tcp
sudo ufw allow 443/tcp
sudo ufw status verbose

# firewalld - zone-based firewall (RHEL/CentOS/Fedora)
sudo firewall-cmd --list-all
sudo firewall-cmd --add-service=https --permanent
sudo firewall-cmd --reload

Firewalls also appear at other layers now: cloud security groups (AWS/GCP/Azure), Kubernetes NetworkPolicies, and container-level rules - same concept, different control plane.

---

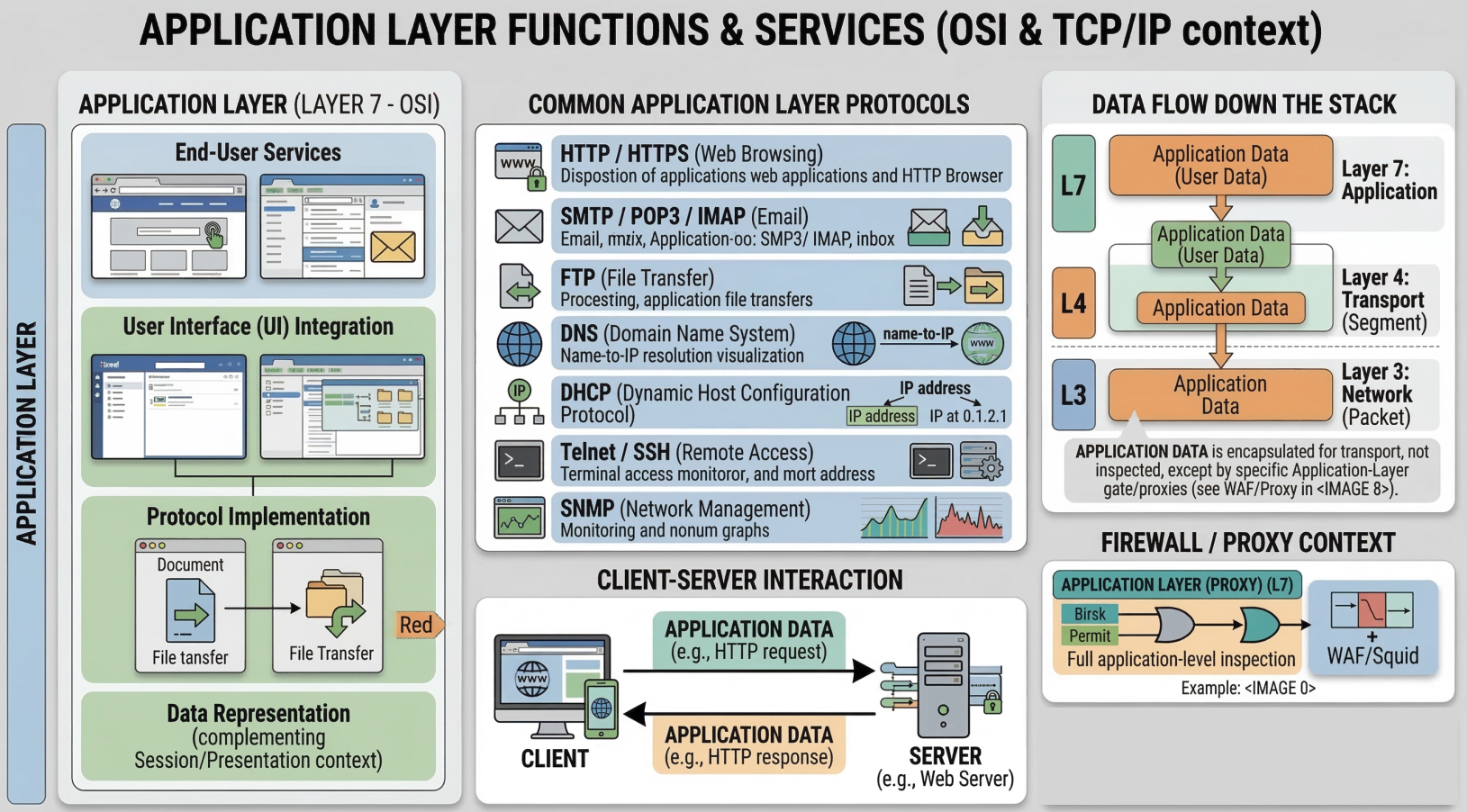

The Application Layer

The application layer (Layer 5 in TCP/IP) is where actual applications exchange data. It sits on top of transport - it doesn’t care how the data got there, just whether it arrived.

Key principle: interoperability through protocol standardization. Chrome and Firefox both speak HTTP. Apache and Nginx both speak HTTP. Any browser can talk to any web server because they all implement the same HTTP spec. The same logic applies to FTP clients, SMTP mail servers, SSH clients vs servers.

TCP segments carry the full application-layer payload in their data section.

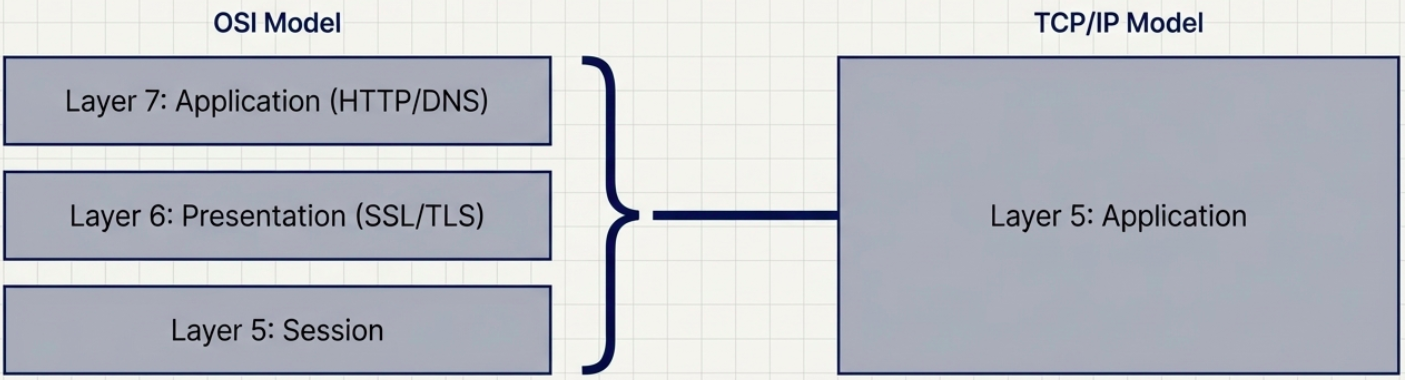

Application Layer and the OSI Model

The TCP/IP model’s application layer (layer 5) maps to three layers in the 7-layer OSI model:

OSI Layer	Name	What it does	TCP/IP equivalent
7	Application	User-facing protocols: HTTP, FTP, SMTP, DNS	Application layer
6	Presentation	Encryption, encoding, compression (SSL/TLS lives here conceptually)	Application layer
5	Session	Managing sessions, checkpoints, reconnects	Application layer / TCP

Note

The OSI model is a teaching tool and a troubleshooting framework (“is this a Layer 2 problem or a Layer 3 problem?”). In practice, nobody implements all 7 layers separately - the 5-layer TCP/IP model is what’s actually running on the internet.

---

Troubleshooting Transport Layer Issues

# Test TCP connectivity to a specific port (the "is this port open?" check)
nc -zv example.com 443         # Linux/Mac - verbose, zero i/o mode
# -z = scan only, don't send data
# -v = verbose output
# Exit code 0 = success, non-zero = failed

# Windows equivalent
Test-NetConnection -ComputerName example.com -Port 443

# Quick port scan of common ports on a host (use only on hosts you own)
nc -zv 192.168.1.1 20-25 80 443 8080

# Test UDP connectivity (harder - nc sends a probe, may or may not get response)
nc -zuv 8.8.8.8 53

# Trace a TCP connection - see where it drops
traceroute -T -p 443 example.com    # TCP traceroute (bypasses ICMP blocks)
sudo tcptraceroute example.com 443  # alternative tool

# Watch live TCP connections
watch -n1 'ss -tan | grep ESTABLISHED'

Tip

When nc -zv host 443 fails:

1. Is the service actually running? (ss -tlnp | grep :443)
2. Is a local firewall blocking it? (sudo iptables -L -n -v or sudo ufw status)
3. Is a network firewall in the path? (try traceroute -T -p 443)
4. Is DNS resolving correctly? (dig host to confirm IP)
