Filesystem Hierarchy

Filesystem Hierarchy Standard (FHS)

Linux systems store files according to the Filesystem Hierarchy Standard (FHS), maintained by the Linux Foundation. The standard ensures that users, administrators, and developers can move between distributions without re-learning how the system is organized.

Key differences from Windows:

• Uses / (forward slash) as path separator, not \
• No drive letters - everything is part of a single unified tree
• Multiple drives and partitions are mounted as directories within that tree
• All filesystem names are case-sensitive: /boot, /Boot, and /BOOT are three different directories
• Removable media (USB, CD) appears at /run/media/username/label (modern) or /media (older distros)

---

Directory Reference

Directory	Purpose
/	Root of the entire filesystem tree
/bin	Essential user binaries needed in single-user mode (cat, ls, mv, cp, rm, ps, kill, mount, sh)
/sbin	Essential system administration binaries (fsck, ip, fdisk, iptables)
/boot	Kernel (vmlinuz), initramfs, GRUB config, System.map
/dev	Device nodes - interfaces to hardware and virtual devices
/etc	System-wide configuration files only; no binaries
/home	User home directories (/home/alice, /home/bob)
/lib	Shared libraries for binaries in /bin and /sbin
/lib64	64-bit libraries (on systems that run both 32- and 64-bit)
/media	Auto-mount points for removable media (older distributions)
/mnt	Temporary manual mount point (UNIX convention since the beginning)
/opt	Optional self-contained application packages (keeps files isolated from system dirs)
/proc	Virtual filesystem - live kernel data, process info, tunables
/run	Runtime variable data (replaces /var/run); implemented as tmpfs
/root	Home directory for the root user (not the same as /)
/srv	Data served by the system (web, FTP); seldom used
/sys	Virtual filesystem - hardware/device tree, kernel parameters (newer and stricter than /proc)
/tmp	Temporary files; often cleared on reboot; sometimes a ramdisk
/usr	Non-essential programs, libraries, headers, man pages; theoretically read-only
/var	Variable-size data: logs, spool, caches, databases

Note

/ (root directory) is not /root (the root user’s home). Common source of confusion!

---

Deep Dives on Key Directories

/ - The Root Partition

While the whole system is one tree, the root partition is special. It must contain everything needed to:

1. Boot the system (kernel, initramfs, bootloader)
2. Restore the system from external media (backup utilities, drivers)
3. Recover a damaged system (diagnostic and repair tools)

Separate partitions (e.g., /home, /var, /opt) are mounted later in the boot process. The FHS prohibits applications from creating new top-level directories under /.

/bin and /sbin

• /bin: commands needed by all users (cat, cp, ls, mv, ps, rm, date, echo, kill, ln, login, mount, umount, sed, sh, su, sync, uname)
• /sbin: commands for system administration (fsck, fdisk, mkfs, ip, iptables, reboot, shutdown)
• Commands not needed at boot go in /usr/bin and /usr/sbin

Note

On modern distributions, /bin and /usr/bin (and /sbin and /usr/sbin) are often symbolic links pointing to the same location. The historical reason for the split was so /usr could be a separate mountable partition brought in later at boot.

/etc - Configuration

• Contains only text-based configuration files; no binaries
• Only root can modify files here; regular users cannot
• User-specific config always goes in the user’s ~/.config or home directory

Notable contents:

File/Dir	Purpose
/etc/passwd	User account database
/etc/shadow	Hashed passwords
/etc/group	Group definitions
/etc/fstab	Filesystem mount table
/etc/hosts	Static hostname-to-IP mappings
/etc/resolv.conf	DNS server configuration
/etc/skel/	Template files copied to new user home dirs
/etc/systemd/	Systemd service and timer unit configurations
/etc/crontab	System-wide cron jobs

/proc - The Process Filesystem

/proc is a pseudo-filesystem - it has no presence on disk. It provides a file-interface to live kernel data structures. The information is generated on-demand when you read it.

# Key files
cat /proc/cpuinfo             # CPU model, cores, flags
cat /proc/meminfo             # memory breakdown
cat /proc/mounts              # currently mounted filesystems
cat /proc/version             # kernel version
cat /proc/partitions          # block devices and partitions
cat /proc/interrupts          # IRQ assignments

# Per-process info (replace PID with actual number)
ls /proc/1234/                # directory for process 1234
cat /proc/1234/status         # name, state, memory, UIDs
cat /proc/1234/cmdline        # full command line
ls /proc/1234/fd/             # open file descriptors
cat /proc/1234/maps           # memory map

# The current process
ls /proc/self/                # always points to the running process

# Kernel tunables (writable)
cat /proc/sys/vm/swappiness
echo 10 > /proc/sys/vm/swappiness    # change temporarily

/sys - The Device/Hardware Filesystem

/sys (sysfs) is newer than /proc and adheres to stricter standards. It exposes the Unified Device Model - the kernel’s view of all hardware and drivers.

# Examples
ls /sys/class/net/             # network interfaces
cat /sys/class/net/eth0/speed  # interface speed
ls /sys/block/                 # block devices
cat /sys/block/sda/queue/scheduler   # I/O scheduler
cat /sys/block/sda/size        # disk size in 512-byte sectors

/dev - Device Nodes

/dev contains device nodes - special files that serve as interfaces to hardware and virtual devices. They are created dynamically by udev when devices are detected.

• Block devices: random-access storage (/dev/sda, /dev/nvme0n1)
• Character devices: sequential streams (/dev/tty, /dev/null, /dev/urandom, /dev/zero)
• Pseudo-devices: /dev/null (discards writes), /dev/zero (stream of null bytes), /dev/random, /dev/urandom

ls -l /dev/sd*               # list SATA disk device nodes
ls -l /dev/null /dev/zero    # pseudo-devices

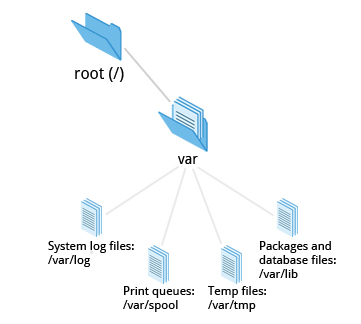

/var - Variable Data

/var holds data that grows or changes during normal operation. It is often mounted as its own partition so that runaway growth (e.g., huge log files) doesn’t bring down the root filesystem.

Subdirectory	Contents
/var/log	System and application log files
/var/lib	Persistent application state (databases, package manager data)
/var/spool	Queued data: print jobs, mail, cron jobs
/var/tmp	Temp files that survive reboots (unlike /tmp)
/var/cache	Cached application data (can be rebuilt)
/var/www	Web server document root (conventional)
/var/ftp	FTP server root (conventional)

Tip

/var must never be mounted read-only. Consider putting it on its own partition so a full /var/log doesn’t crash the OS.

/boot - Boot Files

For each installed kernel version:

File	Purpose
vmlinuz-X.Y.Z	Compressed Linux kernel image
initramfs-X.Y.Z.img	Initial RAM filesystem (or initrd)
config-X.Y.Z	Kernel build configuration (debugging only)
System.map-X.Y.Z	Kernel symbol table (debugging only)

GRUB bootloader files live at /boot/grub/grub.cfg or /boot/grub2/grub2.cfg.

/usr - User Programs

/usr contains programs and data not needed at boot. It can be a separate partition and can even be shared across machines via NFS. It is theoretically read-only.

Subdirectory	Contents
/usr/bin	Primary directory for user commands
/usr/sbin	Non-essential system admin commands
/usr/lib	Libraries for /usr/bin and /usr/sbin
/usr/lib64	64-bit libraries
/usr/include	C/C++ header files for development
/usr/share	Architecture-independent shared data (man pages, icons, locales)
/usr/share/man	Man page documentation
/usr/src	Kernel source code
/usr/local	Locally installed software (outside package manager); mirrors /usr layout

/home and /root

• /home/username - Personal files, dotfiles, settings for each regular user
• /root - Home directory for the root account (superuser)

On multi-user systems, /home is often a separate filesystem (NFS-mounted or on its own partition), so users’ data persists across OS reinstalls.

/run - Runtime Data

/run is implemented as tmpfs (RAM disk). It stores:

• PID files (which process is running as which daemon)
• Sockets and lock files
• Volatile state that must exist early in boot

/var/run and /var/lock are now symlinks to /run and /run/lock.

/tmp vs /var/tmp

	/tmp	/var/tmp
Cleared on reboot	Yes (usually)	No
Typical use	In-session temp files	Temp files that must survive a reboot
Implementation	Often tmpfs	Usually on disk

---

Key FHS Rules to Remember

1. Applications should not create directories directly under /
2. /etc is for system configuration; user config goes in ~
3. /usr should be read-only in production
4. Variable data belongs in /var, not /usr
5. Locally-compiled/installed software goes in /usr/local to avoid conflicts with package manager
