Docker Mounting

• All data written inside a container’s writable layer is ephemeral - it disappears when the container is removed.
• Every container gets its own MNT namespace - an isolated file tree rooted at /. Docker mounts the container image at this root, then attaches external storage (volumes, bind mounts, tmpfs) at specific paths within that tree.
• To persist data or share it between containers and the host, you attach external storage via a mount.
• Three main mount types: Volumes (Docker-managed), Bind Mounts (host path), tmpfs (memory-only).
• Stateful applications (databases, file servers, message queues) must use volumes or mounts - data must outlive the container. Stateless applications can rely on the ephemeral writable layer for temporary data only.

Mount Types Comparison

Type	Managed by	Persists after docker rm	Performance	Best For
Volume	Docker	Yes	Native	Production data, database storage
Bind Mount	Host OS	Yes (host file)	Native	Development, config injection
tmpfs	Kernel (memory)	No	Fastest	Secrets at runtime, temp caches

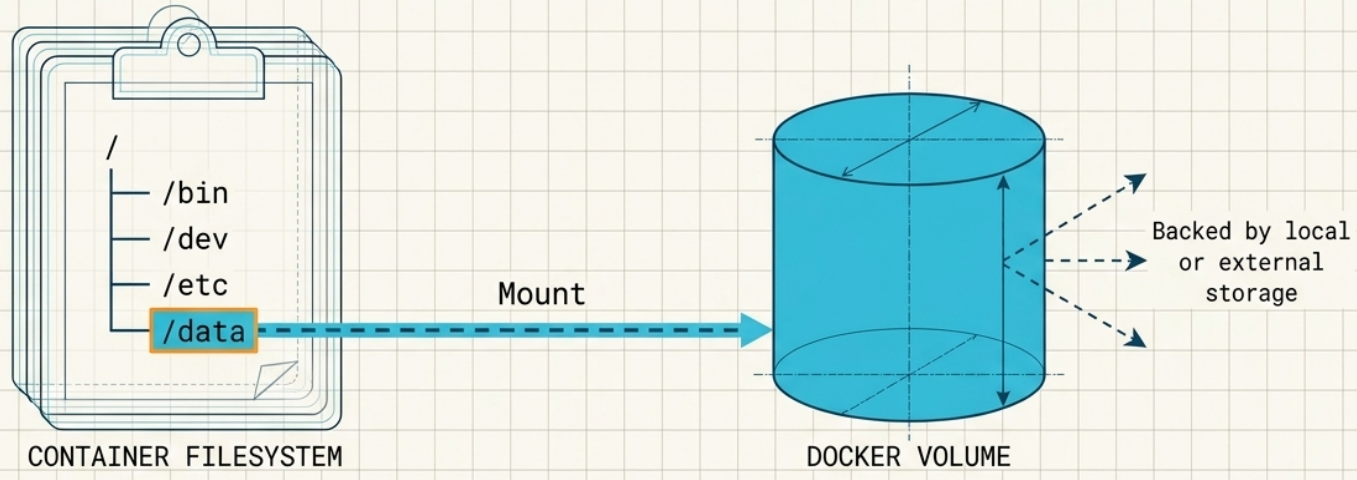

Volumes

• Volumes are the recommended way to persist data in production. Docker creates a directory on the host (typically /var/lib/docker/volumes/<name>/_data) and manages it independently of the container lifecycle.

• Volumes can be shared across multiple containers and survive container removal.

• Native I/O performance: Volumes bypass the container’s Copy-on-Write filesystem layer entirely, giving native disk throughput. Critical for I/O-intensive workloads like databases - CoW overhead degrades performance under sustained write load.

• Host-independent portability: Unlike bind mounts, volumes don’t require containers to know the host directory structure. The same image runs identically on any machine.

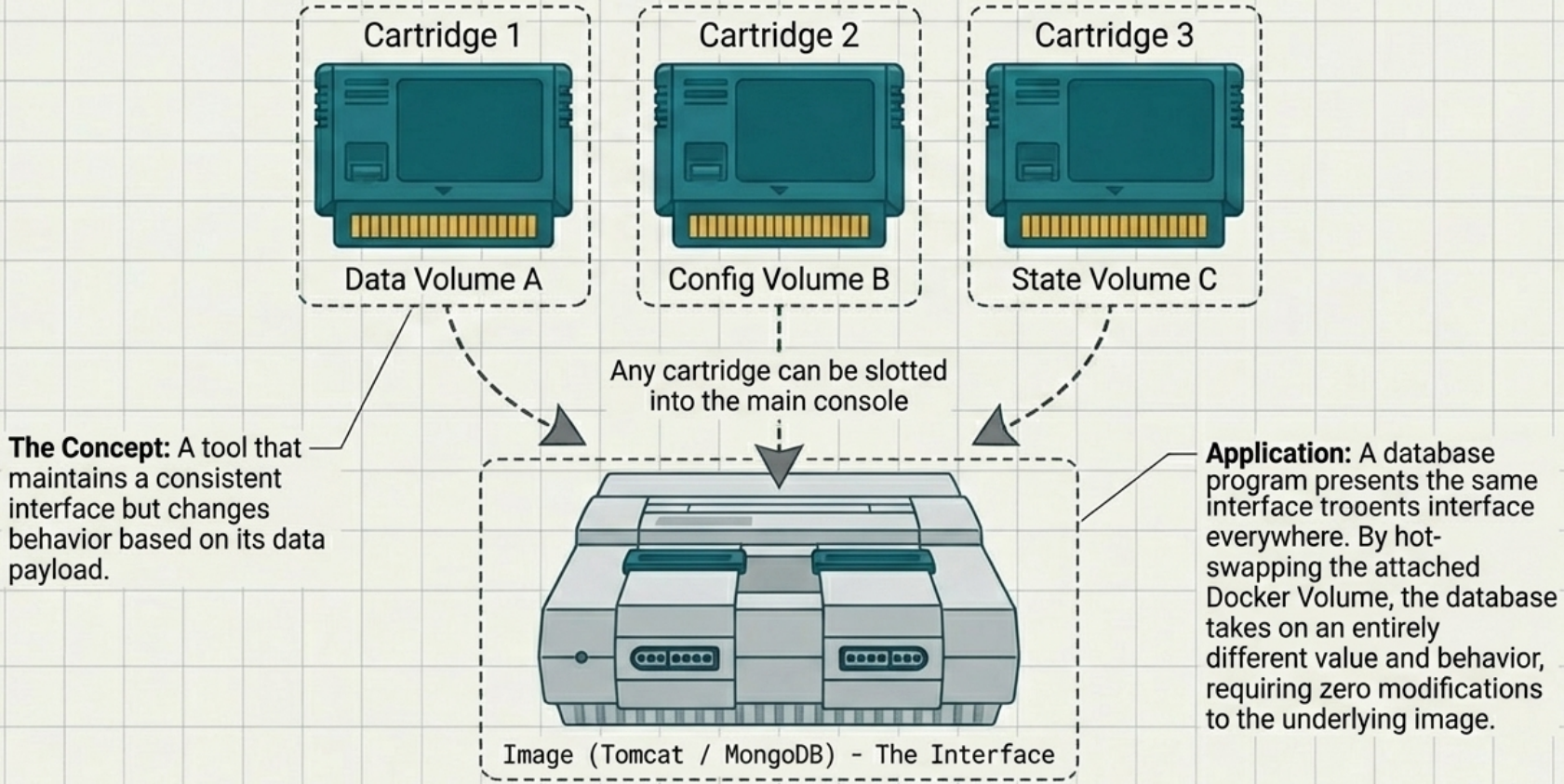

• Polymorphic container pattern: The image packages static software; the volume provides dynamic data. A database image always runs the same binary - the mounted volume defines what data it holds. Same image + different volume = different database (prod, staging, test) with zero code changes.



  # Create a named volume
  docker volume create db-data

  # Create with a label (for filtering and organizing volumes)
  docker volume create --label env=prod db-data

  # List volumes
  docker volume ls

  # Inspect a volume - the "Mountpoint" field in output shows the exact host path where data lives
  docker volume inspect db-data

  # Mount a volume at container run time
  docker run -d \
    -v db-data:/var/lib/postgresql/data \   # named volume syntax
    postgres:16-alpine

  # Same with --mount (more explicit, preferred in scripts)
  docker run -d \
    --mount type=volume,src=db-data,dst=/var/lib/postgresql/data \
    postgres:16-alpine

  # Read-only volume
  docker run -d \
    --mount type=volume,src=config-vol,dst=/etc/app,ro \
    my-app

  # Remove a volume (only when no containers use it)
  docker volume rm db-data

  # Remove volumes not currently mounted to any container or service
  docker volume prune

  # Remove ALL volumes on the host - including unmounted ones (data loss risk)
  docker volume prune --all

  # Target specific volumes using a filter (e.g., by label)
  docker volume prune --filter label=env=staging

  # Suppress confirmation prompt (for automation/scripts)
  docker volume prune --force

Note

docker compose down does NOT remove named volumes. Use docker compose down -v to also remove volumes. This is intentional - protecting production data from accidental down commands.

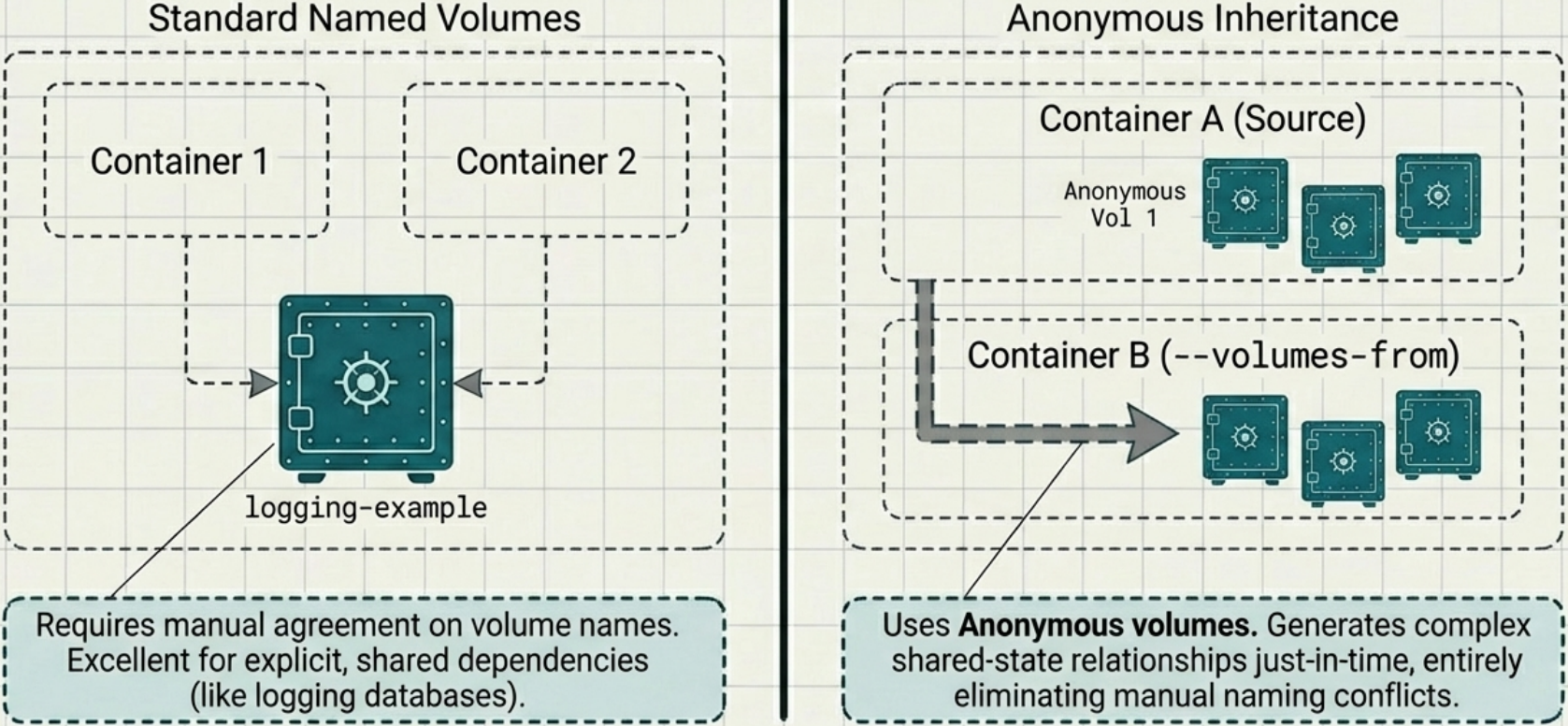

Named vs anonymous volumes:

• Named volumes (docker volume create my-data or -v my-data:/path) persist until explicitly deleted - they survive all container lifecycles, including docker run --rm. Useful for periodic job containers that must preserve output even after auto-cleanup.
• Anonymous volumes (created without a name, e.g., from a bare VOLUME instruction in a Dockerfile) are automatically deleted when the container is removed with docker run --rm or docker rm -v.

Note

The VOLUME <mount-point> instruction in a Dockerfile declares that path as a volume mount point. You cannot specify a host path in a Dockerfile - host paths differ between operating systems. Any host-to-container mapping must be specified at runtime via -v or --mount, or in a Compose file.

Where Volume Data Lives

On Linux: /var/lib/docker/volumes/<volume-name>/_data

On Docker Desktop (macOS/Windows), Docker runs inside a Linux VM. Volume data is inside that VM’s filesystem - not directly accessible from your Mac/Windows filesystem. To inspect it:

# Access the Docker Desktop VM filesystem (use this exact pinned image - security)
docker run -it --rm --privileged --pid=host \
  justincormack/nsenter1@sha256:5af0be5e42ebd55eea2c593e4622f810065c3f45bb805eaacf43f08f3d06ffd8

# Then navigate to the volume data inside the VM
ls /var/lib/docker/volumes/db-data/_data

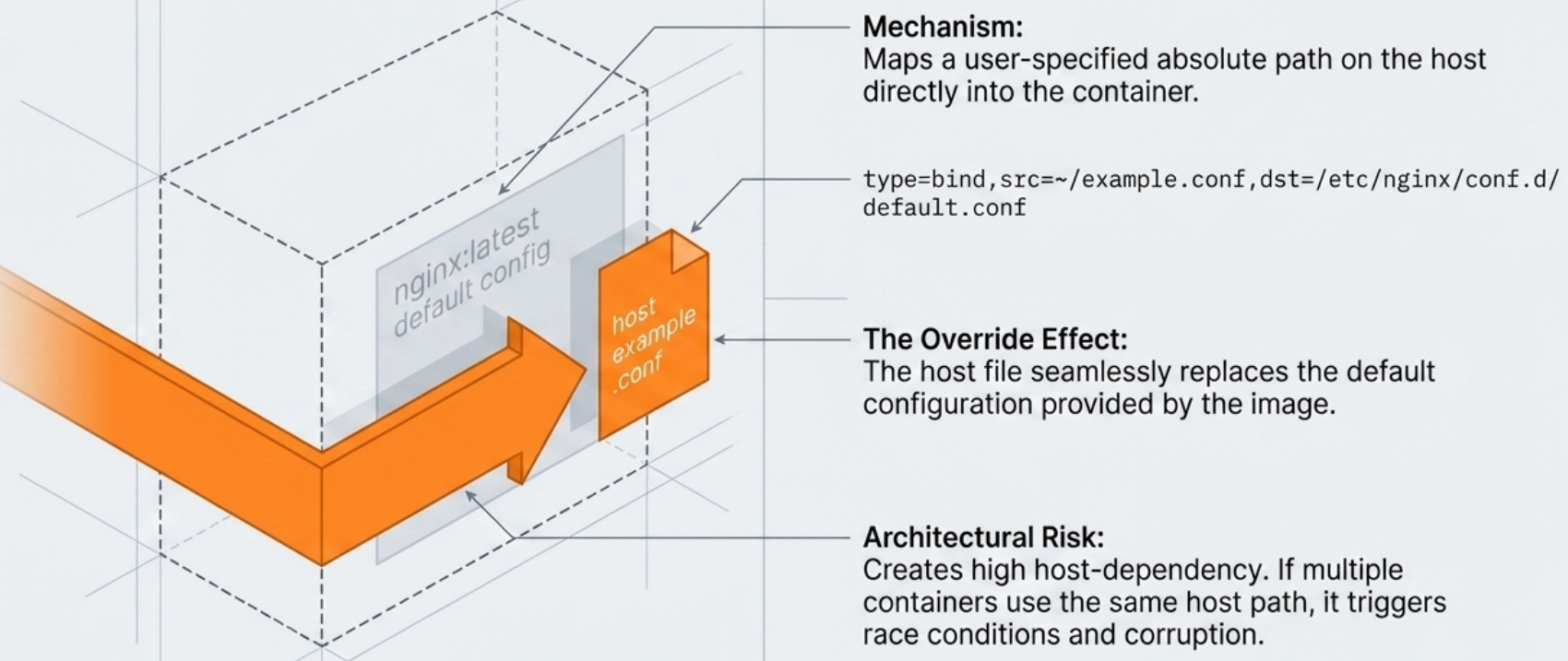

Bind Mounts

• Maps a specific host path directly into the container. Changes are immediately visible on both sides.
• Ideal for development (mount source code into a container so edits are reflected live), injecting configuration files, or exporting container output - e.g., bind-mounting a log directory so a log-forwarding agent on the host can read it directly.
• Not portable - depends on a specific host path existing. Avoid in production images.
• Mount shadowing: When you mount to a directory that already has content from the image (e.g., /app), the mount hides the image’s original files for the life of the container. The image files are not deleted - just obscured. Unmounting restores visibility.

# Bind mount the current directory to /app in the container
docker run -d \
  -v $(pwd):/app \                  # short syntax
  -v $(pwd)/nginx.conf:/etc/nginx/nginx.conf:ro \  # read-only
  my-app

# --mount equivalent (clearer for CI/CD scripts)
docker run -d \
  --mount type=bind,src=$(pwd),dst=/app \
  my-app

# Read-only bind mount via --mount (use readonly=true, not :ro)
docker run -d \
  --mount type=bind,src=$(pwd)/config,dst=/etc/app,readonly=true \
  my-app

Note

Changes in a bind mount are immediate and bidirectional. Deleting files in the container deletes them on the host. Be careful in development with bind mounts on directories containing important data.

Caution

Bind mount data corruption: Never point the same bind-mounted host directory at multiple concurrent instances of a stateful container. Two Cassandra containers sharing the same bind mount will corrupt each other’s database - they compete for the same files with no coordination mechanism. Use a named volume per instance instead.

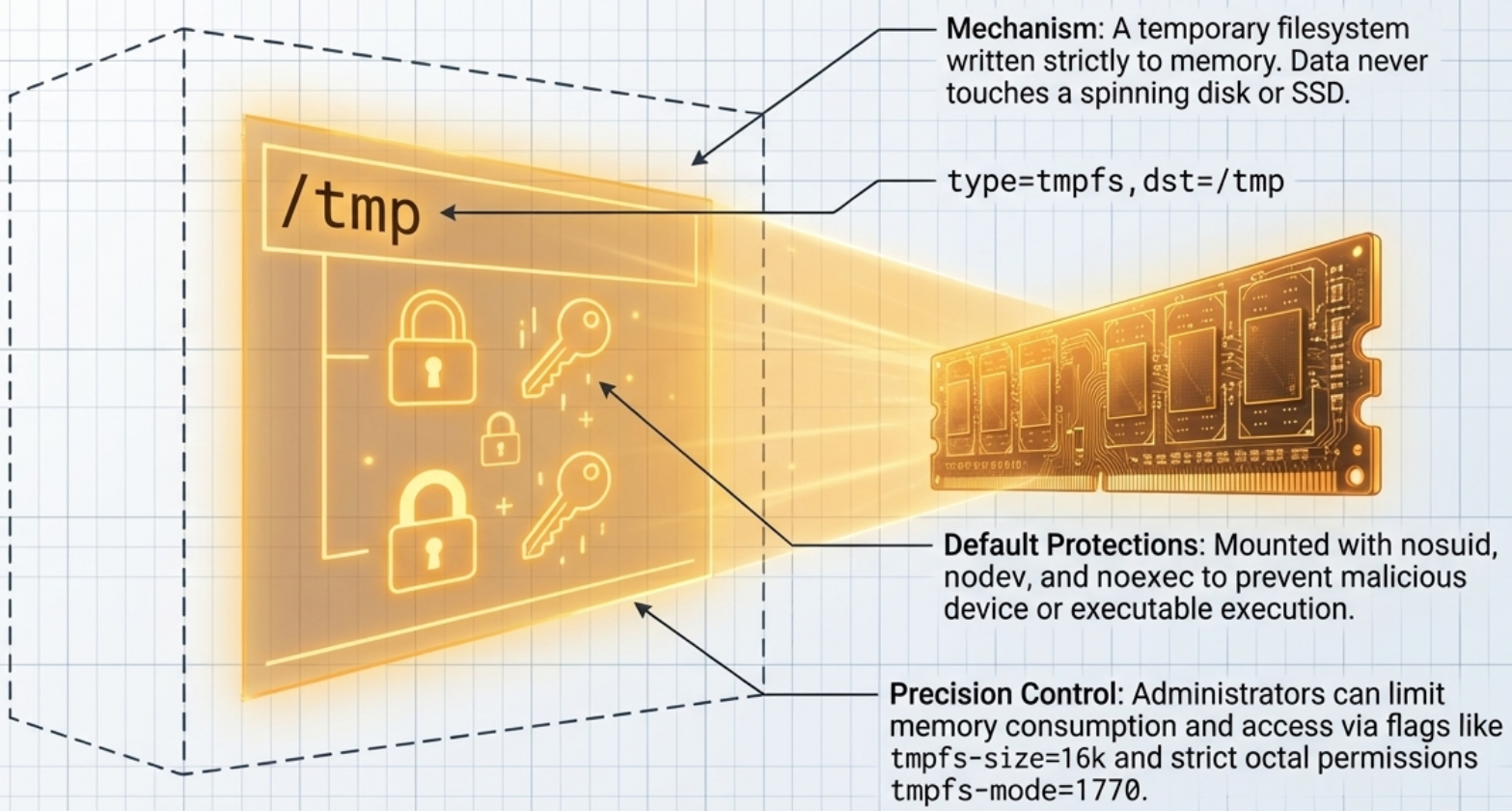

tmpfs Mounts

• Data stored in memory only - never written to disk. Lost when the container stops or restarts.
• Use for sensitive data (tokens, API keys at runtime) that must not be persisted to disk, or for high-speed temporary caches.
• Docker’s tmpfs defaults (applied automatically unless overridden): no size limit, world-writable (1777 permissions), noexec (files cannot be executed), nodev (no special device files), suid bits ignored. Sensible for scratch space, but always set tmpfs-size and tmpfs-mode for security-critical mounts.

# Mount a tmpfs at /tmp/cache in the container
docker run -d \
  --mount type=tmpfs,dst=/tmp/cache \
  my-app

# With size and mode options
# tmpfs-mode=1700 = octal 0o1700 = sticky bit + rwx for owner only (no group/other access)
docker run -d \
  --mount type=tmpfs,dst=/tmp/secrets,tmpfs-size=64m,tmpfs-mode=1700 \
  my-app

Note

If the host runs out of memory, the kernel may swap tmpfs to disk, defeating the purpose. Monitor memory usage if relying on tmpfs for secret isolation.

Configs and Secrets (Swarm Mode Only)

• Secrets and Configs are Docker Swarm primitives for distributing sensitive data to services without embedding it in images or environment variables.
• Only available in Swarm mode - not in standalone docker run or Compose without Swarm.

# Create a secret from a file
echo "supersecretpassword" | docker secret create db_password -

# Use in a Swarm service
docker service create \
  --name my-app \
  --secret db_password \
  my-app-image
# Secret is mounted at: /run/secrets/db_password

• In Compose with Swarm, use the secrets: key. For non-Swarm Compose, use environment variables from .env files or bind-mount config files instead.

Volume Drivers

By default, volumes are stored on the local host filesystem. Volume drivers let you back a named volume with remote or distributed storage:

# Example: NFS-backed volume (useful with AWS EFS on EC2)
docker volume create \
  --driver local \
  --opt type=nfs \
  --opt o=addr=efs.example.com,rw \
  --opt device=:/ \
  efs-data

Cloud-native alternatives: AWS EFS CSI driver (EKS), Azure Files (AKS), GCS Fuse - these are typically configured at the orchestrator level, not directly with Docker.

Popular third-party volume plugins: REX-Ray, Portworx, Docker CloudStor, Flocker, Blockbridge. These integrate with AWS EBS, SAN, NAS, NFS, Ceph, and vSphere. Plugins are managed via docker plugin subcommands:

# List installed plugins
docker plugin ls

# Install a plugin
docker plugin install rexray/ebs

# Create a volume using the installed driver
docker volume create --driver rexray/ebs ebs-vol

Caution

Always test external volume drivers in a non-production environment before committing critical data. Behavior under failure conditions (node loss, network partition, plugin crash) varies significantly between drivers.

Caution

Shared storage and data corruption: When multiple containers across different hosts share a volume, uncoordinated writes can silently corrupt data. Classic failure mode:

1. Container A writes data but holds the change in a local cache (not yet committed to the volume)
2. Container B writes to the same location and commits directly to the volume
3. Container A eventually flushes its cache - overwriting B’s change, with no error detected by either container

Applications sharing volumes must implement their own locking or coordination strategy. Docker does not handle application-level write conflicts.

Note

--volumes-from copies all volume mount definitions from a source container. Key behaviors and limitations:

• Multiple sources: Can be set multiple times in a single command to inherit from several source containers simultaneously.
• Transitive: If container C copies from B, and B copied from A, container C inherits A’s volumes too.
• Fixed mount paths: Volumes mount at the same path as in the source - you cannot remount to a different directory.
• Race conditions: If two source containers use the same mount point, only one definition wins and the result is undefined.
• Fixed permissions: You cannot change read-write to read-only (or vice versa) during the copy.

This is a legacy pattern - use named volumes for explicit, portable, conflict-free sharing.

Choosing the Right Mount

• Databases and stateful services in production → Named Volume
• Source code in development → Bind Mount (live reload)
• Config files → Bind Mount (read-only) or Docker Secret (Swarm)
• Build artifacts or temp files → tmpfs or anonymous volume
• Sharing data between containers → Named Volume
• Cross-host persistence (multi-node) → Volume with NFS/cloud driver or orchestrator CSI
