Docker Image

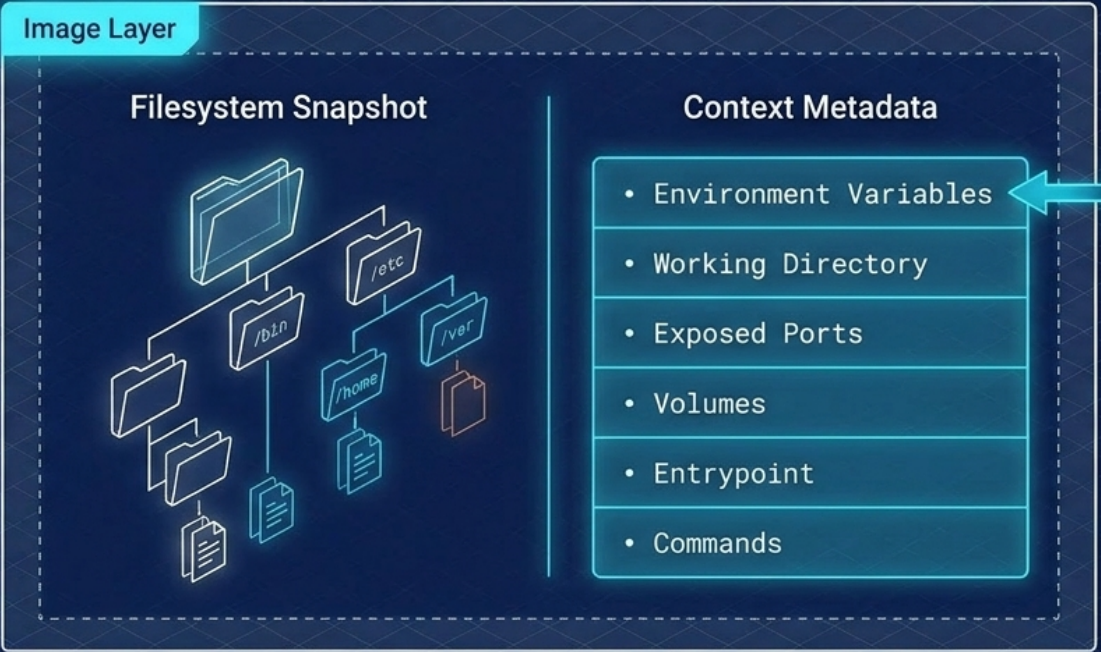

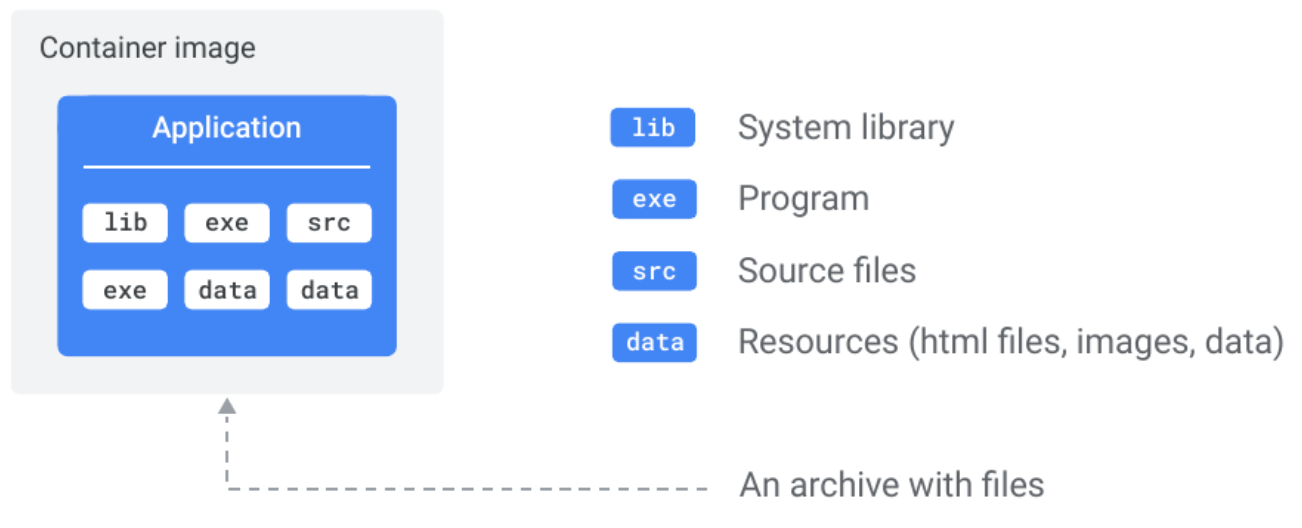

• A Docker image is a read-only, layered filesystem snapshot containing everything needed to run an application: code, runtime, libraries, environment variables, and configuration.
• Images are immutable - you never modify a running image. Updates mean building a new image.
• Built from a Dockerfile using docker build. Hosted on a registry and pulled to any machine with a Docker runtime.

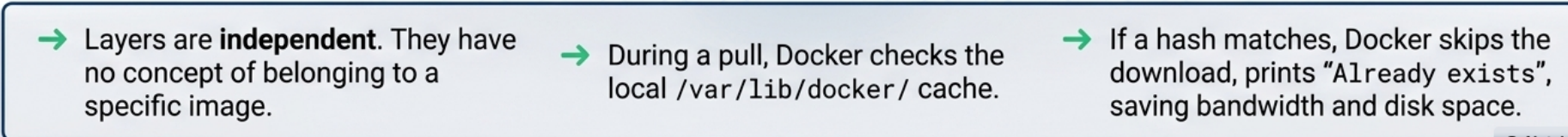

Layered Architecture

• Every instruction in a Dockerfile that modifies the filesystem creates a new layer.

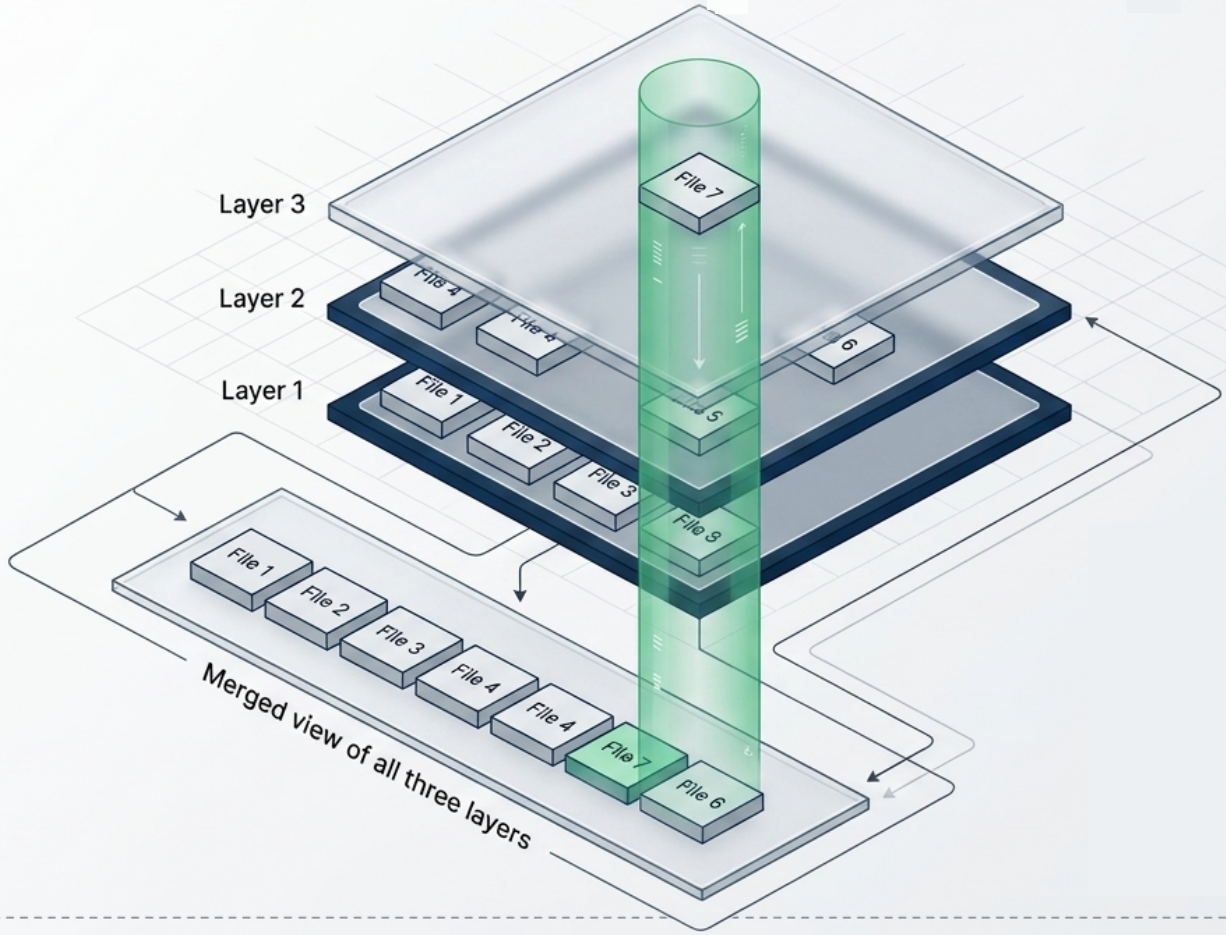

• Layers are stacked using a Union Filesystem (overlayfs on modern Linux). Each layer contains only the delta from the previous.

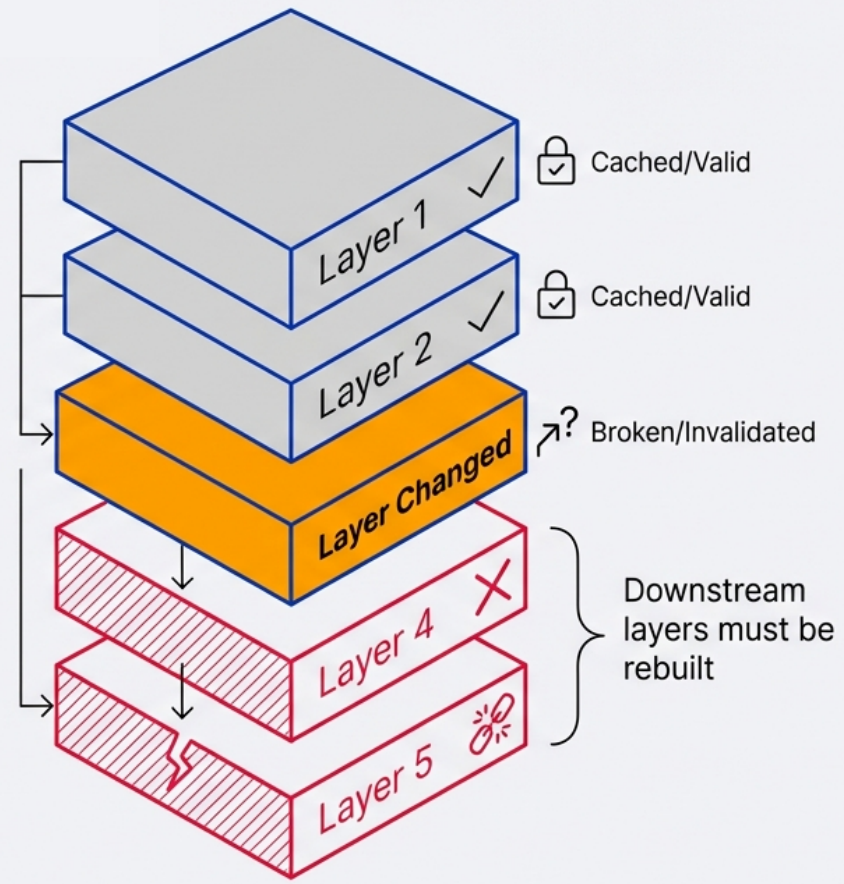

• Layers are cached and reused - if a layer hasn’t changed, Docker skips rebuilding it and reuses the cached version. This makes rebuilds fast.

  FROM ubuntu:22.04          → Layer 1: Base OS filesystem
  RUN apt-get install nginx  → Layer 2: nginx binaries added
  COPY ./site /var/www/html  → Layer 3: your site content added

• Shared layers: Multiple images that share a base layer (e.g., all your apps based on node:20-alpine) only store that base layer once on disk. No duplication.


Image vs Container

	Docker Image	Docker Container
What it is	Blueprint (read-only layers)	Running instance of an image
State	Static, immutable	Has a writable layer on top
Lifecycle	Built once, used many times	Created from an image, stopped, removed
Storage	Passive - no CPU/RAM required	Active - consumes RAM while running
Data	Baked in at build time	Runtime writes go to container layer (ephemeral)
Sharing	Pushed/pulled via registry	Not shareable - run a new container instead

• When a container starts, Docker adds a thin read-write layer on top of the image’s read-only layers.
• Any data written to this layer is lost when the container is removed unless mounted to a volume.

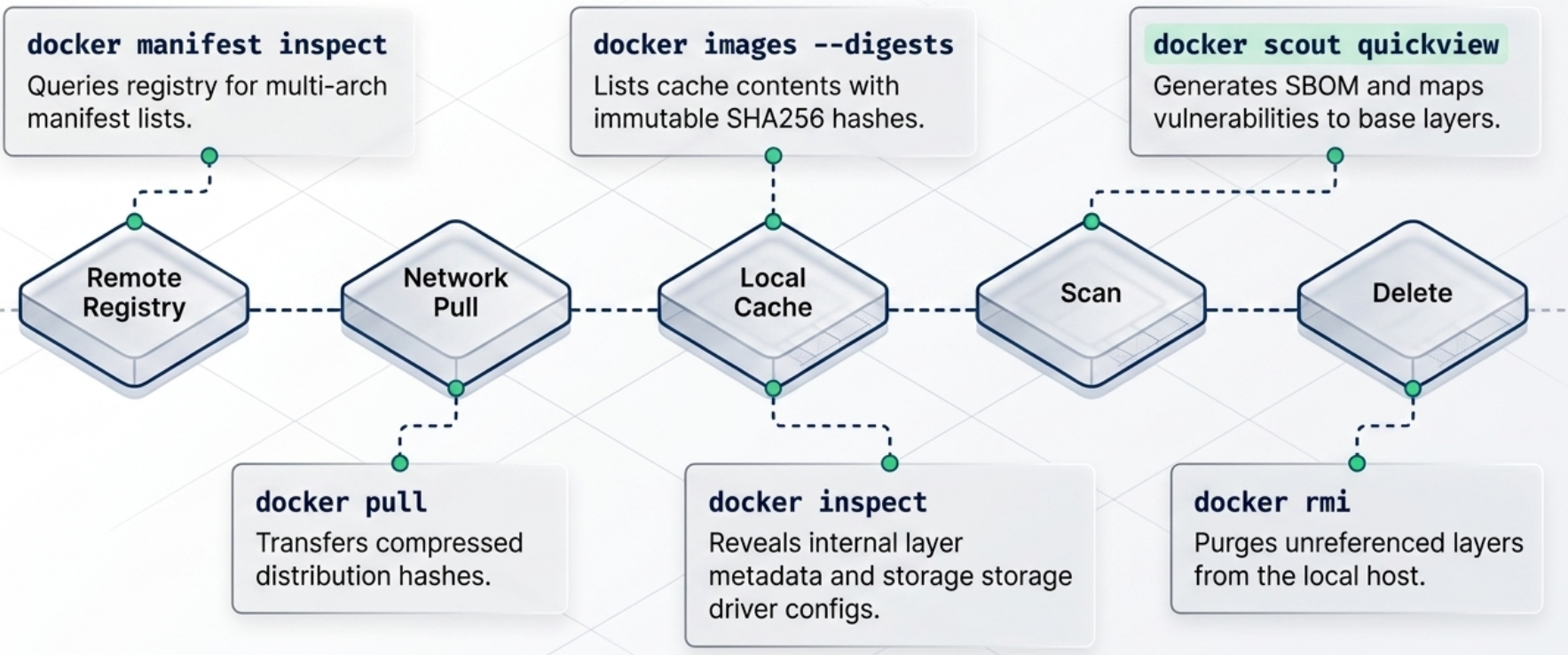

Key Image Commands

# Build an image from a Dockerfile in the current directory
docker build -t my-app:1.0 .

# List images on the local machine
docker images

# Pull an image from a registry
docker pull nginx:alpine

# Inspect image layers and metadata
docker inspect nginx:alpine
docker history nginx:alpine   # Show all layers

# Tag an existing image for a different registry
docker tag my-app:1.0 myregistry.io/team/my-app:1.0

# Push to a registry (must be logged in)
docker push myregistry.io/team/my-app:1.0

# Remove an image
docker rmi my-app:1.0

# Remove dangling (untagged) images only — images used by stopped containers are kept
docker image prune

# Remove ALL unused images (not referenced by any container, running or stopped)
docker image prune -a

Image Naming and Tags

Images are identified as: [registry/][namespace/]name[:tag]

Example	Meaning
nginx	docker.io/library/nginx:latest (implicit)
nginx:alpine	Official nginx, alpine variant
myregistry.io/myteam/app:v2.1	Private registry, specific version
myapp@sha256:abc123...	Pinned to exact digest - most reproducible

• Always pin versions in production - nginx:1.25.3 not nginx:latest. Tags are mutable; latest can change without warning.
• Use digest pinning for critical dependencies - digest (sha256:...) is immutable and guarantees the exact image.
