Graphical User Interface

CLI vs GUI

Linux supports both a Command Line Interface (CLI) and a Graphical User Interface (GUI):

	CLI	GUI
Best for	Repetitive tasks, scripting, remote admin	Occasional tasks, visual navigation
Speed	Faster once learned	Easier for infrequent operations
Resource use	Minimal	Higher (GPU, RAM)
Remote access	SSH works natively	Requires X forwarding or VNC/RDP

---

Display Architecture

Modern Linux desktop graphics involves several layers of software:

Application
     |
     v
Display Server (X11 or Wayland)
     |
     v
Window Manager / Compositor
     |
     v
Display Manager (login screen: gdm, sddm, lightdm)
     |
     v
Desktop Environment (GNOME, KDE, XFCE, ...)

X Window System vs. Wayland

Aspect	X Window System (X11)	Wayland
Architecture	Client-server: X server acts as middleman between apps and hardware	Client talks directly to compositor (combined display server + window manager)
Performance	Can show screen tearing; more overhead from its client-server model	Lower latency, smoother, less tearing
Security	Any app can snoop on other windows’ input; legacy design	Apps isolated from each other; stronger sandboxing
Hardware support	Requires many extensions for modern high-DPI and multi-head setups	Designed for modern GPU hardware and HiDPI
Compatibility	Native X11 app support; backward-compatible	Legacy X11 apps run through XWayland compatibility layer
Adoption	Legacy; still widely supported	Default on Fedora, RHEL 8+, Ubuntu 22.04+, and most modern distros

Wayland is gradually replacing X11 as the default. In practice it’s mostly transparent to users - applications work the same way.

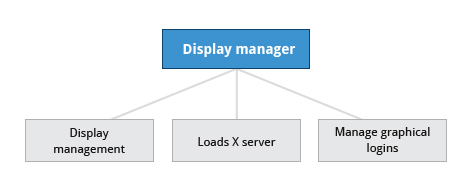

Display Manager

The Display Manager is the graphical login screen. It:

• Starts the X/Wayland display server
• Shows the login prompt
• Launches the chosen desktop environment after authentication

Display Manager	Default for
gdm (GNOME Display Manager)	GNOME, Fedora, RHEL, Ubuntu
sddm	KDE Plasma
lightdm	XFCE, older Ubuntu (pre-18.04)
xdm	Minimal/generic X11

# Check which display manager is active
systemctl status display-manager

# Switch default display manager
sudo dpkg-reconfigure gdm3               # Debian/Ubuntu
sudo systemctl enable gdm --force        # Fedora/RHEL

If no display manager is running, start a graphical session manually:

startx          # start X session using ~/.xinitrc config

---

GUI Startup Sequence

When the system reaches graphical.target, the following happens:

1. systemd starts the display manager (e.g., gdm)
2. Display manager initializes the display server (X or Wayland)
3. Display manager shows the login screen
4. User authenticates - PAM verifies credentials
5. Display manager launches the desktop environment (session manager + window manager)

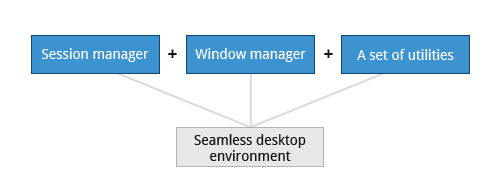

Session Components

Component	Role
Session Manager	Starts/maintains graphical session components; restores previous session on login
Window Manager	Controls window placement, title bars, borders, resizing, and focus
Compositor	Handles rendering effects (transparency, animations); may be integrated with window manager
Panel/Taskbar	Application launcher, clock, system tray, open windows

---

Desktop Environments

Desktop Environment	Default Shell	Philosophy
GNOME	GNOME Shell	Clean, minimal, modern; keyboard-friendly
KDE Plasma	Plasmashell	Highly customizable; Windows-like layout
XFCE	Xfwm	Lightweight and fast; classic desktop layout
LXDE / LXQt	Openbox / KWin	Extremely lightweight; old hardware
MATE	Marco	GNOME 2 fork; traditional desktop
Cinnamon	Muffin	GNOME 3 fork; Windows-like; Linux Mint default

Install a desktop environment on a server (Debian/Ubuntu example):

sudo apt install gnome-core             # minimal GNOME
sudo apt install kde-plasma-desktop     # KDE Plasma
sudo systemctl set-default graphical.target  # ensure it starts at boot

---

Useful GUI Navigation Shortcuts (GNOME)

Shortcut	Action
Ctrl-1 / Ctrl-2	Switch between icon and list view in file manager
Ctrl-H	Show/hide hidden files (dotfiles)
Ctrl-F	Open search box in file manager
Ctrl-L	Open location bar (type a path directly)
Super (Windows key)	Open Activities overview
Super-Tab	Switch between running applications
Alt-F4	Close current window
Ctrl-Alt-T	Open terminal (most distributions)

---

Working Without a GUI (Headless / Server)

On servers, the GUI is typically disabled:

# Check current default
systemctl get-default

# Set to text mode (disable GUI startup)
sudo systemctl set-default multi-user.target

# Re-enable GUI
sudo systemctl set-default graphical.target

# Temporarily start GUI without changing default
sudo systemctl isolate graphical.target

# Check display server and session info
echo $DISPLAY                           # X11 display (e.g., :0)
echo $WAYLAND_DISPLAY                   # Wayland socket (e.g., wayland-0)
echo $XDG_SESSION_TYPE                  # x11 or wayland

Tip

For remote graphical access: use ssh -X (X11 forwarding), VNC (tigervnc, vncserver), or RDP (xrdp). For purely text-based remote access, plain ssh is always preferred.
