TLS/SSL and HTTPS

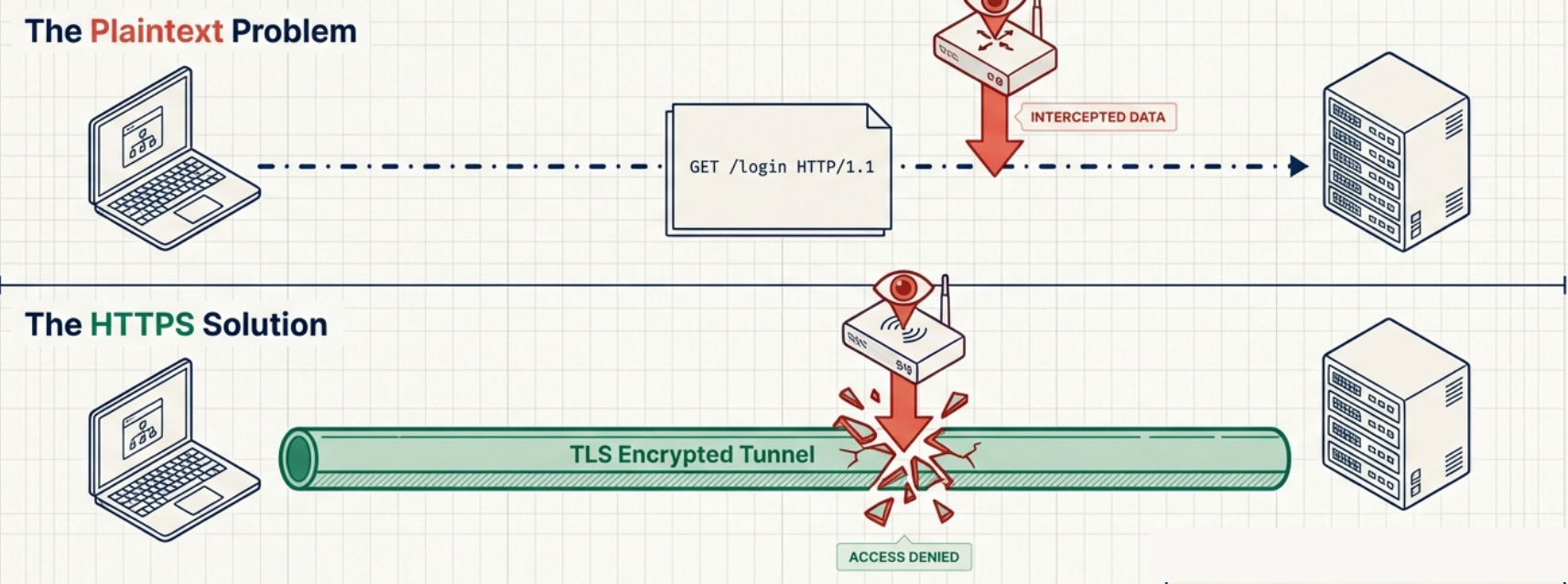

Why TLS Exists

HTTP sends everything in plaintext. Anyone between you and the server (ISP, a coffee shop router, a MITM attacker) can read or modify it. TLS (Transport Layer Security) wraps HTTP in an encrypted tunnel - the result is HTTPS.

TLS operates at the session/presentation layer (between TCP and the application). It provides:

• Confidentiality - traffic is encrypted, eavesdroppers can’t read it
• Integrity - data can’t be tampered with undetected (HMAC)
• Authentication - you’re talking to the real server, not an impersonator (certificates)

---

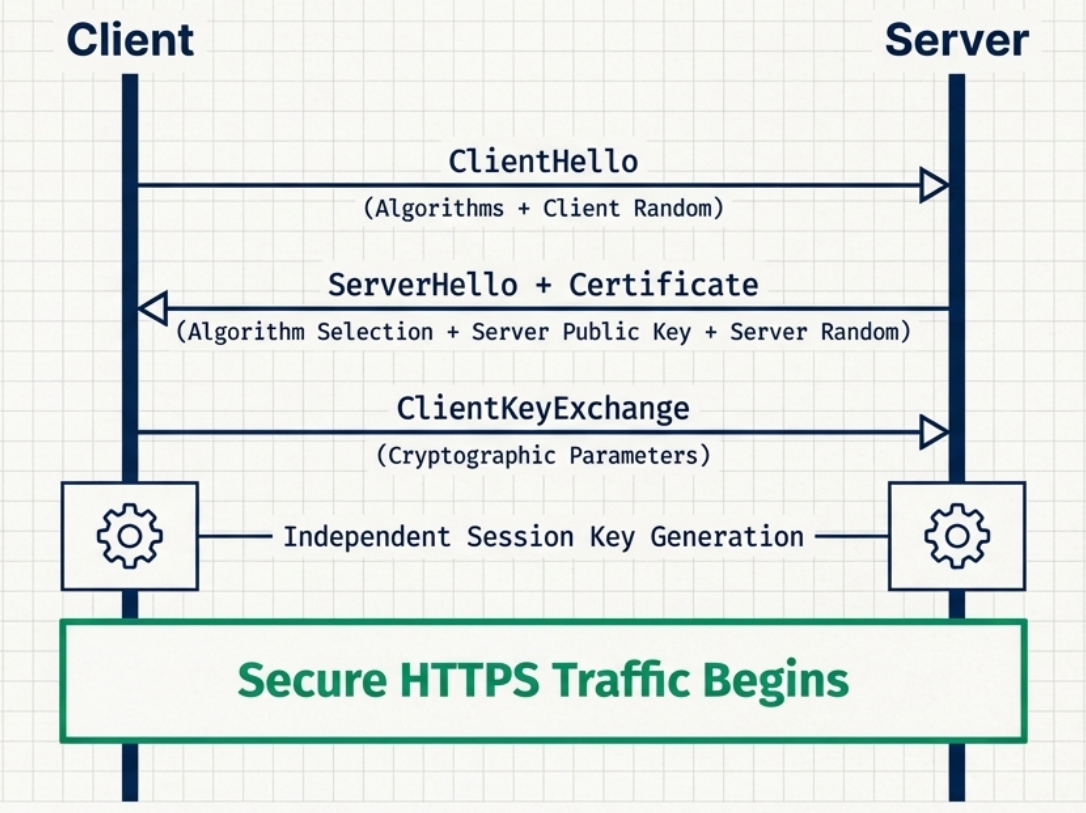

The TLS Handshake (TLS 1.2)

Before any encrypted data flows, the client and server negotiate which algorithms to use and exchange keys:

Client                                    Server
  │                                          │
  │──── ClientHello ─────────────────────────▶│
  │     (TLS version, cipher suites,         │
  │      client random, SNI)                 │
  │                                          │
  │◀─── ServerHello ─────────────────────────│
  │     (chosen cipher suite,                │
  │      server random, session ID)          │
  │                                          │
  │◀─── Certificate ─────────────────────────│
  │     (server's X.509 cert)                │
  │                                          │
  │◀─── ServerHelloDone ─────────────────────│
  │                                          │
  │  [Client verifies certificate]           │
  │                                          │
  │──── ClientKeyExchange ───────────────────▶│
  │     (pre-master secret, encrypted        │
  │      with server's public key)           │
  │                                          │
  │  [Both sides derive session keys         │
  │   from pre-master + both randoms]        │
  │                                          │
  │──── ChangeCipherSpec ───────────────────▶│
  │──── Finished (encrypted) ───────────────▶│
  │◀─── ChangeCipherSpec ────────────────────│
  │◀─── Finished (encrypted) ────────────────│
  │                                          │
  │═══════ Encrypted Application Data ════════│

Key insight: The pre-master secret is never transmitted directly. Both sides independently derive the same session key using the same inputs (pre-master secret + both random values). This is why intercepting the encrypted key exchange doesn’t give you the session key.

---

TLS 1.3 - The Better Version

TLS 1.3 (2018) makes the handshake faster and removes weak algorithms:

Aspect	TLS 1.2	TLS 1.3
Handshake round trips	2 round trips	1 round trip (0-RTT possible for repeat visits)
Key exchange	RSA or DHE	Only ECDHE (ephemeral, forward secrecy mandatory)
Cipher suites	37 options (many weak)	5 options (all strong)
Forward secrecy	Optional	Required
Replay attacks	Not addressed	0-RTT has limited replay protection
Removed	N/A	RC4, DES, 3DES, MD5, SHA-1, RSA key exchange, static DH

Note

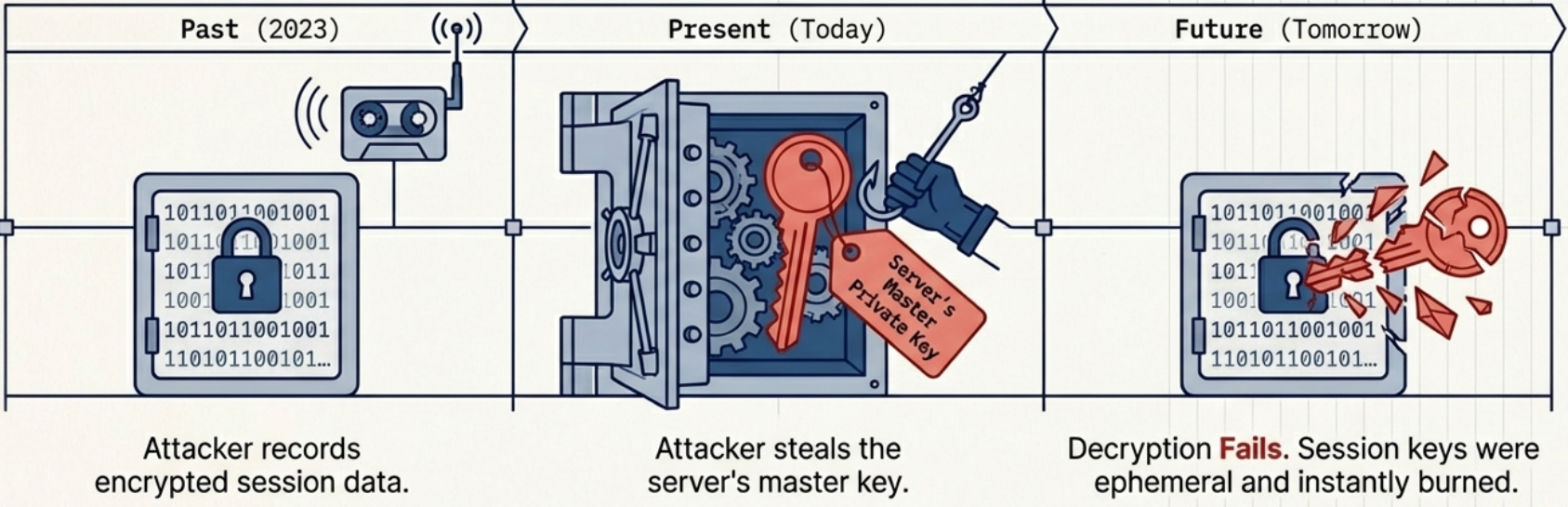

Forward secrecy means: even if the server’s private key is compromised in the future, previously recorded encrypted sessions cannot be decrypted. TLS 1.3 makes this mandatory by using ephemeral key exchange (the key changes every session and is never stored).

---

Certificates and the Chain of Trust

A TLS certificate is an X.509 document that:

• Contains the server’s public key
• Is signed by a Certificate Authority (CA) that vouches for the server’s identity
• Contains the domain name(s) it’s valid for (Subject Alternative Names)
• Has an expiry date

The Chain of Trust

Root CA (self-signed)
  └── Intermediate CA (signed by Root CA)
        └── Server Certificate (signed by Intermediate CA)
              └── Your website's public key

Browsers ship with a list of trusted Root CAs (Certificate Store). When you visit HTTPS:

1. Server sends its certificate + intermediate CA’s certificate
2. Browser walks the chain: Server cert → Intermediate CA → Root CA
3. If the chain terminates at a trusted Root CA and the domain matches → ✅ trusted

Caution

Certificate pinning - some apps (especially mobile) pin the exact certificate fingerprint and refuse to connect if it changes. This prevents MITM attacks even with a fraudulently-issued cert from a trusted CA. It also breaks corporate SSL inspection (which uses a company CA to MITM HTTPS for monitoring).

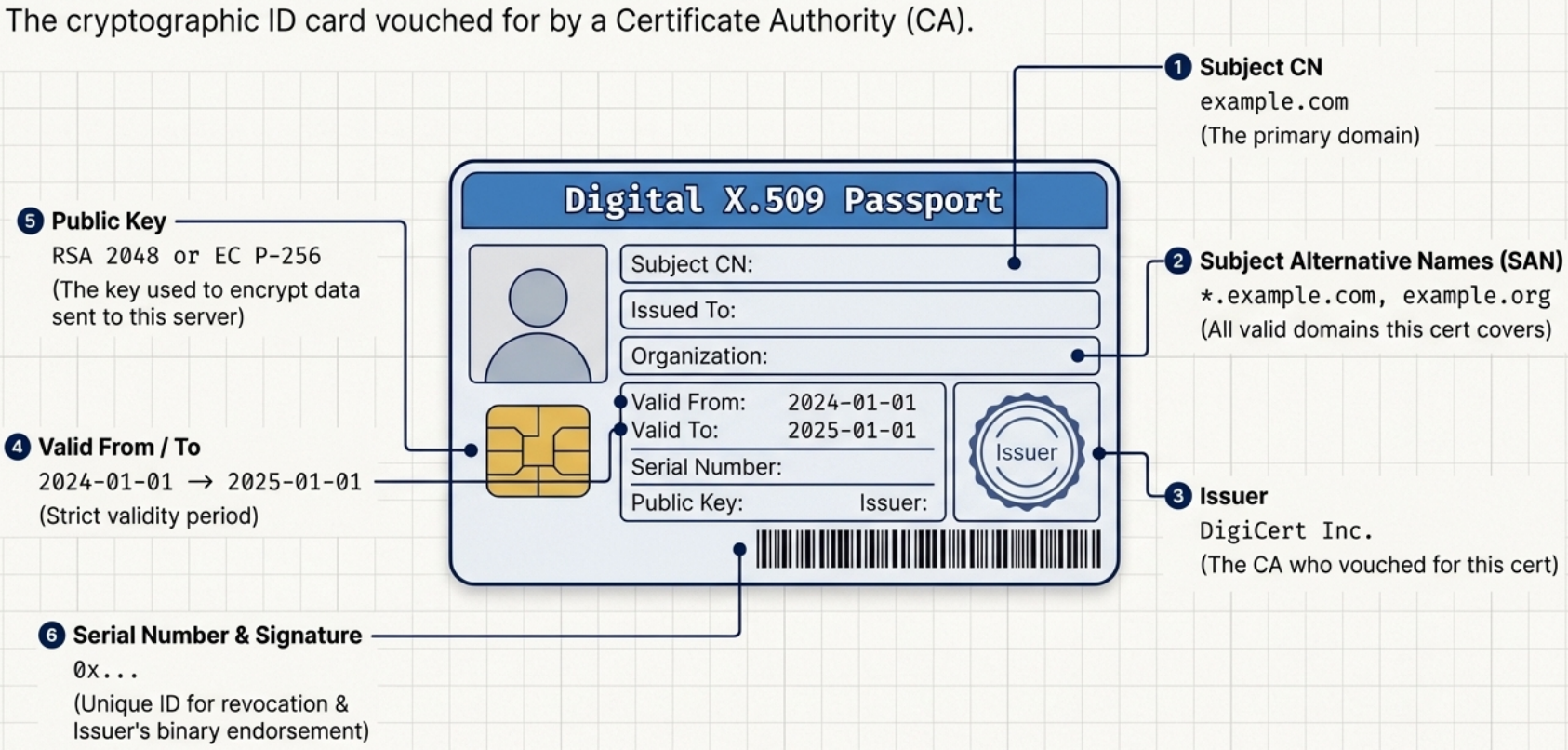

Certificate Fields

Field	Example	Purpose
Subject CN	example.com	Primary domain
Subject Alternative Names	*.example.com, example.org	All valid domains
Issuer	DigiCert Inc.	Who signed this cert
Valid From / To	2024-01-01 → 2025-01-01	Validity period
Public Key	RSA 2048 or EC P-256	Encrypt to this key
Signature	(binary)	Issuer’s endorsement
Serial Number	0x...	Unique ID (used in revocation)

---

Practical openssl Commands

# Check a certificate directly from a server
openssl s_client -connect example.com:443 -servername example.com

# Show just the certificate details
openssl s_client -connect example.com:443 -servername example.com 2>/dev/null \
  | openssl x509 -noout -text

# Check expiry date only
openssl s_client -connect example.com:443 -servername example.com 2>/dev/null \
  | openssl x509 -noout -dates
# notBefore=Jan  1 00:00:00 2024 GMT
# notAfter=Jan  1 00:00:00 2025 GMT

# Check which TLS version and cipher is negotiated
openssl s_client -connect example.com:443 -servername example.com 2>/dev/null \
  | grep -E "Protocol|Cipher"
# Protocol  : TLSv1.3
# Cipher    : TLS_AES_256_GCM_SHA384

# Read a local certificate file
openssl x509 -in certificate.crt -text -noout

# Check if cert and private key match (fingerprints must match)
openssl x509 -noout -modulus -in cert.pem | openssl md5
openssl rsa  -noout -modulus -in key.pem  | openssl md5

# Test specific TLS versions
openssl s_client -connect example.com:443 -tls1_2  # force TLS 1.2
openssl s_client -connect example.com:443 -tls1_3  # force TLS 1.3

# Decode what a server returns (for debugging APIs)
curl -v --cacert /etc/ssl/certs/ca-certificates.crt https://api.example.com/

# Skip certificate verification (ONLY for debugging, never production)
curl -k https://example.com

---

Common TLS Errors

Error	Meaning	Fix
SSL_ERROR_RX_RECORD_TOO_LONG	Connecting to HTTP port with HTTPS	Check port (use 443 not 80)
certificate verify failed	Cert not trusted (bad CA, expired, wrong domain)	Check cert chain and expiry
SSL handshake failed	Protocol mismatch (TLS version incompatible)	Check supported TLS versions
ERR_CERT_DATE_INVALID	Certificate expired	Renew certificate
ERR_CERT_COMMON_NAME_INVALID	Domain doesn’t match cert SAN	Check cert’s Subject Alternative Names
NET::ERR_CERT_AUTHORITY_INVALID	Self-signed / unknown CA	Add CA to trust store

---

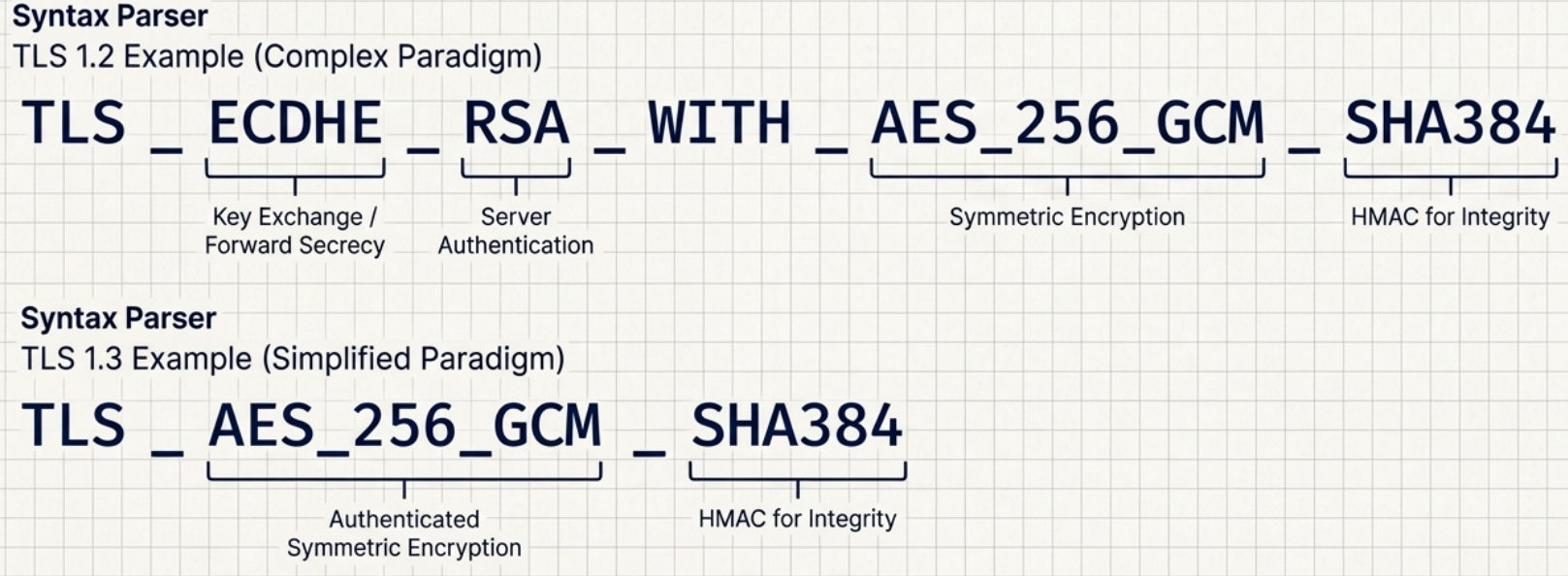

Cipher Suites

A cipher suite is a combination of algorithms used for:

1. Key exchange (how to establish the session key)
2. Authentication (how to verify identity)
3. Symmetric encryption (how to encrypt the data stream)
4. Message authentication (how to verify integrity)

TLS 1.3 cipher suite example: TLS_AES_256_GCM_SHA384

• AES_256_GCM → AES-256 in GCM mode (authenticated encryption)
• SHA384 → HMAC for integrity

TLS 1.2 cipher suite example: TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384

• ECDHE → Elliptic Curve Diffie-Hellman Ephemeral (key exchange, forward secrecy)
• RSA → RSA for authenticating the server
• AES_256_GCM → symmetric encryption
• SHA384 → HMAC
