Docker Registry

• A Docker Registry is a service that stores and distributes Docker images. It’s the central repository from which images are pulled and to which they are pushed.
• Images are identified as [registry-host/][namespace/]name[:tag]
• Default registry: Docker Hub (docker.io). If no registry is specified in an image name, Docker Hub is assumed.

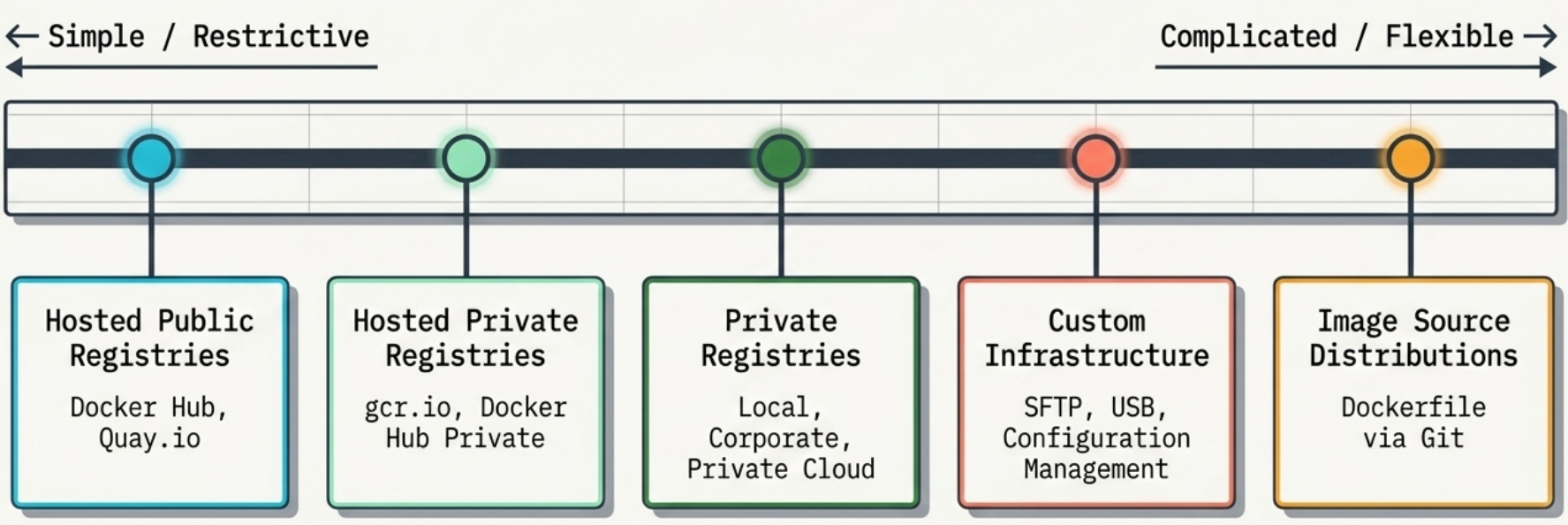

Public vs Private Registries

Registry	Provider	Type	Notes
Docker Hub	Docker Inc	Public/Private	Default. Free tier has pull rate limits.
GitHub Container Registry (GHCR)	GitHub	Public/Private	Integrated with GitHub Actions.
Azure Container Registry (ACR)	Microsoft	Private	Native AKS/Azure integration. Geo-replication.
AWS ECR	Amazon	Private	Native ECS/EKS integration. IAM auth.
Google Artifact Registry	Google	Private	Replaced GCR. Multi-format (Docker, npm, Maven).
Harbor	CNCF	Self-hosted	Open-source. Vulnerability scanning, RBAC.
Nexus Repository	Sonatype	Self-hosted	Multi-format proxy and private registry.

Working with Registries

# Login to Docker Hub
docker login
# ⚠️ Credentials are stored as base64 in ~/.docker/config.json — not encrypted.
# Use a credential helper (docker-credential-pass, docker-credential-osxkeychain)
# to store them securely. See: docker help login

# Login to a private registry
docker login myregistry.azurecr.io

# Pull an image from Docker Hub (implicit registry)
docker pull nginx:alpine

# Pull from a private registry (must be logged in)
docker pull myregistry.azurecr.io/apps/my-app:v1.2

# Tag an existing local image for a registry
docker tag my-app:latest myregistry.azurecr.io/team/my-app:v1.2

# Push to registry
docker push myregistry.azurecr.io/team/my-app:v1.2

# List images in a registry (Docker Hub example via API)
curl -s https://hub.docker.com/v2/repositories/library/nginx/tags | jq '.results[].name'

# Logout
docker logout myregistry.azurecr.io

Running a Private Registry

Docker distributes an official registry image you can self-host:

# Run a local registry on port 5000
docker run -d \
  -p 5000:5000 \
  --name registry \
  --restart=always \
  -v registry-data:/var/lib/registry \   # persist images
  registry:2

# Push an image to your local registry
docker tag my-app:latest localhost:5000/my-app:latest
docker push localhost:5000/my-app:latest

# Pull from your local registry
docker pull localhost:5000/my-app:latest

For a production private registry, add:

• TLS: Use a reverse proxy (Nginx, Caddy) with a valid certificate. Docker requires HTTPS for non-localhost registries.
• Authentication: Basic auth via htpasswd file, or proxy through an OAuth provider.
• Vulnerability scanning: Use Harbor or Trivy integration.

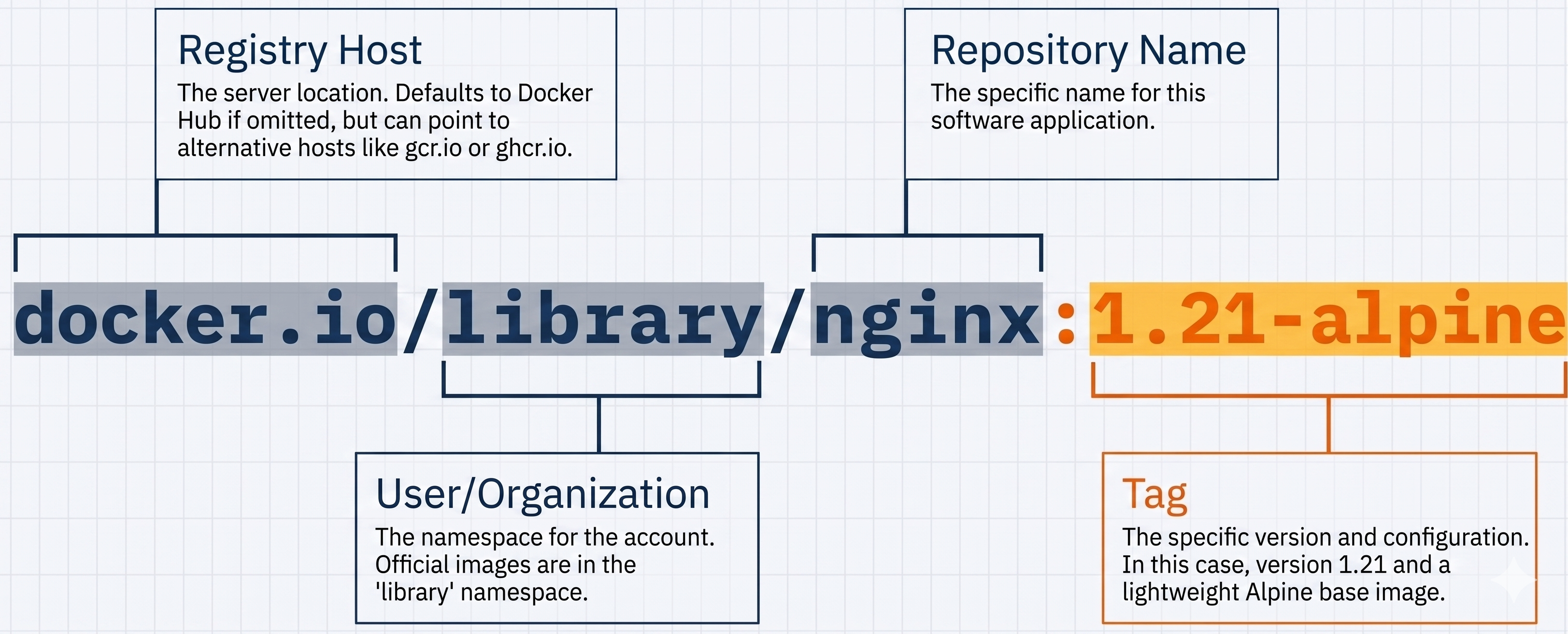

Image Naming Deep Dive

Image Reference	Resolved To
nginx	docker.io/library/nginx:latest
nginx:alpine	docker.io/library/nginx:alpine
myuser/myapp	docker.io/myuser/myapp:latest
myregistry.io/myapp:v2	myregistry.io/myapp:v2
myapp@sha256:abc123	Content-addressed, exact digest

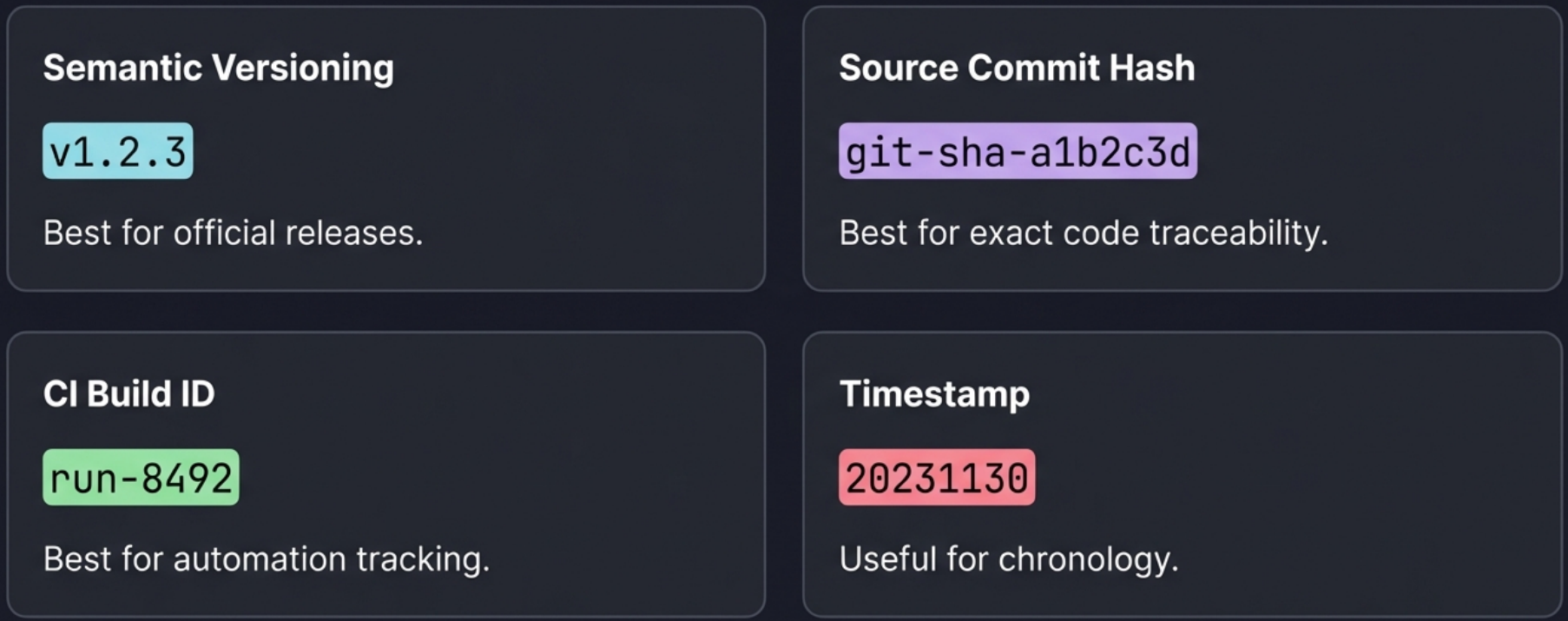

• Digest pinning: sha256:... digests are immutable. Unlike tags, they cannot be overwritten. Use digests in production for reproducible deployments.

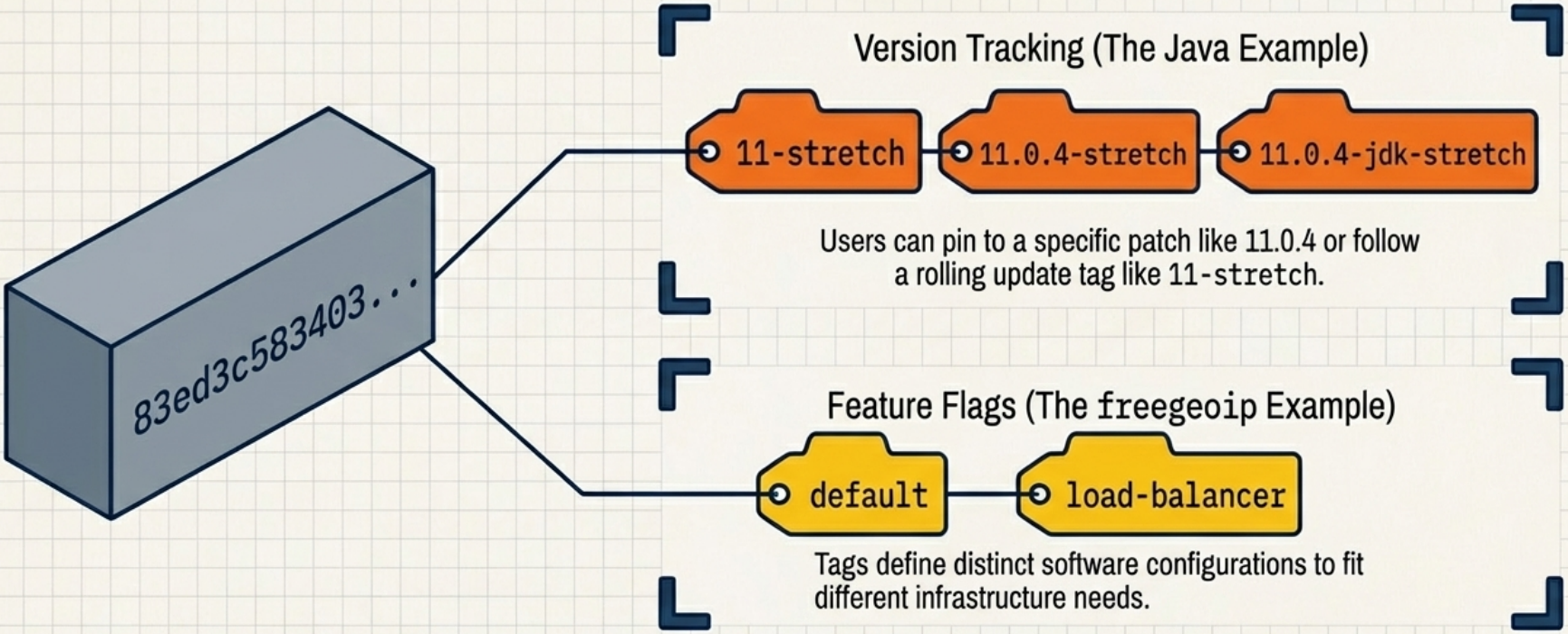

• Tags are mutable. The image behind nginx:latest changes every time a new release is published. Never rely on latest in CI/CD.
• Content Trust: Set DOCKER_CONTENT_TRUST=1 to enforce that only cryptographically signed images are pulled. Requires the image publisher to sign with Docker Notary. Not widely adopted outside official images, but useful in high-security environments.

Docker Hub Rate Limits

• Unauthenticated pulls: 100 pulls per 6 hours per IP.
• Authenticated free tier: 200 pulls per 6 hours per account.
• Paid plans: unlimited.

For CI/CD pipelines that frequently pull from Docker Hub, either:

1. Authenticate your CI runner with a Docker Hub account.
2. Mirror Docker Hub through a private registry (pull-through cache) to avoid rate limits hitting your entire team.

# Configure a Docker Hub pull-through mirror in /etc/docker/daemon.json
cat > /etc/docker/daemon.json <<'EOF'
{
  "registry-mirrors": ["https://my-dockerhub-mirror.mycompany.io"]
}
EOF

# Restart Docker for the change to take effect
systemctl restart docker
