Network Tools & Services

Quick Reference

Tool	Use it for
ping	Basic reachability test
traceroute / mtr	Path troubleshooting; packet loss per hop
ss / netstat	Open sockets, listening ports
nmap	Port scanning; service discovery
tcpdump	Packet capture and analysis
ethtool	NIC speed, duplex, link status
curl	HTTP/API testing, downloads with headers
wget	Recursive download, mirroring
ssh / scp	Remote shell, secure file copy
timedatectl	System clock and NTP status

---

Network Interfaces

Network interfaces are the connection channel between a device and a network. They can be physical (via a NIC) or virtual (software-defined). Multiple interfaces can operate simultaneously; each can be brought up or down independently.

• Information about interfaces is reported by ip (modern) or ifconfig (deprecated)
• ip has far more capabilities but its output is more verbose than ifconfig

ip addr show                    # show all interfaces and IPs
ip addr show eth0               # specific interface
ip link show                    # interface state (UP/DOWN/NO-CARRIER)

Routing

# View routing table
ip route                        # preferred
route -n                        # deprecated but still works (output format differs)

# Manage routes
ip route show default           # show default gateway
ip route add 10.0.0.0/8 via 192.168.1.254 dev eth0   # add static route (temp)
ip route del 10.0.0.0/8

| Task | Command |
|------|---------|
| Show routing table | `ip route` or `route -n` |
| Add static route | `ip route add <network> via <gateway>` |
| Delete route | `ip route del <network>` |

---

Connectivity Testing

ping

ping checks whether a machine can receive and send data - it confirms the remote host is online and responding using ICMP echo packets.

ping -c 4 8.8.8.8              # 4 packets; Ctrl+C to stop otherwise
ping -i 0.2 -c 20 192.168.1.1  # fast ping (0.2s interval)
ping6 ::1                       # IPv6 loopback test

ping can increase network load if run without -c. Always limit in scripts.

traceroute

traceroute inspects the route that packets take to reach the destination, making it useful for isolating network delays and errors between hops.

traceroute 8.8.8.8
traceroute -n 8.8.8.8          # skip hostname resolution (faster)

mtr

mtr combines ping and traceroute into a continuously updated display (like top for network paths). The best tool for diagnosing intermittent packet loss - shows per-hop loss and latency live.

mtr 8.8.8.8
mtr --report 8.8.8.8           # 10-probe report, then exit

---

More Networking Diagnostic Tools

Tool	Description
ethtool	Queries NIC parameters (speed, duplex, link status); can set parameters
netstat	Displays active connections and routing tables - deprecated, use ss
ss	Modern replacement for netstat; faster, more detail
nmap	Scans open ports; important for security analysis and inventory
tcpdump	Dumps network traffic for packet-level analysis
iptraf	Monitors network traffic in text mode (interactive)
dig	Tests DNS; preferred replacement for host and nslookup

Open Ports and Sockets with ss

ss -tulpn          # TCP+UDP listening sockets with process names (needs root for PID)
ss -tp             # established TCP connections with PIDs
ss -s              # socket statistics summary
ss -lp | grep :22  # who's listening on port 22

# netstat equivalent (deprecated but still common)
netstat -tulpn
netstat -rn        # routing table (prefer 'ip route')

Port Scanning with nmap

Caution

Only scan networks and hosts you own or have explicit permission to scan. Port scanning can trigger IDS alerts and may be illegal on unauthorized targets.

nmap 192.168.1.1                 # scan top 1000 ports
nmap -p 22,80,443 192.168.1.1   # specific ports
nmap -p- 192.168.1.1            # all 65535 ports (slow)
nmap -sV 192.168.1.1            # version detection
nmap -O 192.168.1.1             # OS detection (requires root)
nmap -sn 192.168.1.0/24         # ping sweep - find live hosts
nmap -A 192.168.1.1             # aggressive: OS + version + scripts + traceroute

Packet Capture with tcpdump

tcpdump -i eth0                   # capture all traffic on eth0
tcpdump -i eth0 -n                # no hostname resolution
tcpdump -i eth0 port 80           # HTTP only
tcpdump -i eth0 host 10.0.0.1    # traffic to/from specific host
tcpdump -i eth0 -w capture.pcap  # save for Wireshark
tcpdump -r capture.pcap           # read from file
tcpdump -i any 'tcp and port 443 and host 10.0.0.1'

NIC Diagnostics with ethtool

ethtool eth0                 # speed, duplex, link status ("Link detected: yes")
ethtool -i eth0              # driver and firmware info
ethtool -S eth0              # statistics (errors, drops)
ethtool -s eth0 speed 1000 duplex full   # force speed/duplex

---

HTTP Clients - wget and curl

wget

wget downloads files from the command line. It handles large files, recursive downloads, password-required downloads, and multiple files.

wget https://example.com/file.tar.gz        # download file
wget -c https://example.com/file.tar.gz     # resume interrupted download
wget -r -l 2 https://example.com/           # recursive, 2 levels deep
wget -q --spider https://example.com        # check URL exists (no download)

curl

curl is the tool for API testing, scripting, and inspecting HTTP responses.

curl https://example.com                      # GET to stdout
curl -o file.html https://example.com         # save to file
curl -O https://example.com/file.tar.gz       # save with original filename
curl -I https://example.com                   # HEAD request (headers only)
curl -v https://example.com                   # verbose: TLS + headers + body

# POST JSON (common for API calls)
curl -X POST https://api.example.com/data \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $TOKEN" \
  -d '{"key": "value"}'

# Download script and run (fail-safe flags)
curl -fsSL https://example.com/script.sh | bash
#  -f  fail silently on HTTP errors (4xx/5xx)
#  -s  silent (no progress meter)
#  -S  show error even with -s
#  -L  follow redirects

---

Transferring Files

FTP (File Transfer Protocol)

FTP is one of the oldest network data transfer methods (dating to 1971). It uses a client-server model and supports large file transfers. However, FTP is inherently insecure - passwords and data are transmitted in cleartext.

• FTP has been removed from RHEL 8+ and recent Debian/Ubuntu due to its insecurity
• Use sftp (SSH-based) or rsync over SSH instead

Common FTP clients (cli): ftp, sftp, ncftp, yafc

---

SSH - Secure Shell

SSH (Secure SHell) provides encrypted remote login, command execution, and file transfer. It uses strong cryptographic algorithms and replaces insecure legacy protocols like telnet and rlogin.

Connecting and Running Commands

ssh user@host                   # connect (default port 22)
ssh -p 2222 user@host           # custom port
ssh -i ~/.ssh/mykey.pem user@host  # specify private key
ssh -J bastion.host user@target    # ProxyJump through a bastion host

# Run commands remotely
ssh user@host 'df -h'
ssh user@host 'sudo systemctl restart nginx'

# Loop over hosts
for host in web01 web02 db01; do
    echo "=== $host ===" && ssh "$host" 'uptime'
done

# pssh - parallel SSH (if installed)
pssh -viH machine1 machine2 machine3 do_something

File Transfer

# scp
scp file.txt user@host:/tmp/
scp user@host:/var/log/app.log ./
scp -r ./local-dir/ user@host:/remote/path/

# rsync over SSH (preferred for large/incremental transfers)
rsync -avzP ./local/ user@host:/remote/
rsync -avzP user@host:/remote/ ./local/

SSH Configuration Files

All SSH config lives in ~/.ssh/:

File	Purpose
id_rsa / id_ed25519	Private key - never share this
id_rsa.pub / id_ed25519.pub	Public key - safe to share
authorized_keys	Public keys allowed to log in as you
known_hosts	Fingerprints of previously connected hosts
config	Per-host options and aliases

Config file precedence (first match wins): Command line → ~/.ssh/config → /etc/ssh/ssh_config

Key-Based Authentication

# Generate (prefer ed25519 for new keys)
ssh-keygen -t ed25519 -C "[email protected]"
# Or RSA 4096 for compatibility
ssh-keygen -t rsa -b 4096 -C "[email protected]"

# Copy public key to remote host
ssh-copy-id user@host
# Or manually:
cat ~/.ssh/id_ed25519.pub | ssh user@host 'cat >> ~/.ssh/authorized_keys'

# Recover a lost public key from private key
ssh-keygen -y -f ~/.ssh/id_ed25519 > ~/.ssh/id_ed25519.pub

Caution

The private key must have permissions 600 and never leave your machine. The public key is safe to distribute. If a private key is compromised, rotate all associated authorized_keys entries immediately.

~/.ssh/config - Host Aliases

Host myserver
    HostName ec2-12-34-56-78.compute-1.amazonaws.com
    User ubuntu
    IdentityFile ~/.ssh/aws-key.pem

Host bastion
    HostName 10.0.0.5
    User ops
    IdentityFile ~/.ssh/bastion-key

Host prod-db
    HostName 192.168.10.50
    User postgres
    ProxyJump bastion           # tunnel through bastion automatically

Then: ssh myserver, ssh prod-db

SSH on Cloud Systems

• SSH keys for cloud VMs are generated at instance creation time
• The public key is placed in the default user’s authorized_keys automatically
• Password authentication is generally disabled on cloud instances
• You download the private key (.pem) once - if you lose it, regenerate the public key with ssh-keygen -y

Note

OpenSSH hardening guide: https://infosec.mozilla.org/guidelines/openssh

---

Network Time Protocol (NTP)

Accurate time is critical for:

• TLS certificate validation (clocks too far off → connection failures)
• Distributed system coordination (Kafka, etcd, Cassandra)
• Kerberos authentication (fails if clocks differ by >5 minutes)
• Log correlation across machines

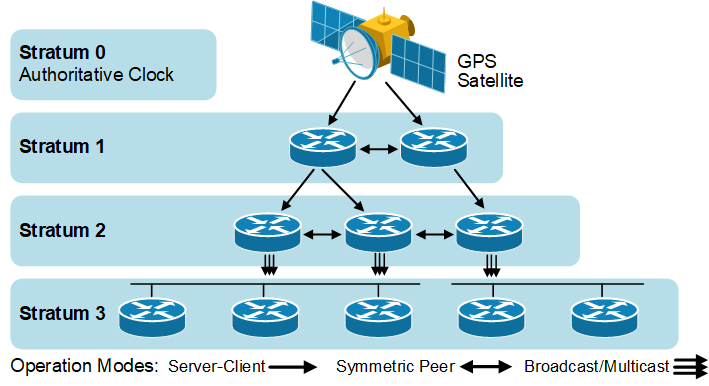

How NTP Works - Strata

NTP time sources are organized in strata (layers):

• Stratum 0 - primary time source: atomic clocks, GPS receivers (not directly on the network)
• Stratum 1 - directly connected to a stratum 0 device via serial or PPS
• Stratum 2 - references a stratum 1 server over NTP
• Stratum 3 - references a stratum 2 server over NTP
• (And so on - accuracy decreases with each hop)

NTP can function as:

• Client - acquires time from a server or peer
• Server - provides time to clients
• Peer - synchronizes with other peers regardless of defined servers

NTP Applications

Application	Config file	Best for
ntpd (ntp)	/etc/ntp.conf	Full-featured; traditional
chronyd	/etc/chrony.conf	Laptops, VMs, intermittent connectivity
systemd-timesyncd	/etc/systemd/timesyncd.conf	Simple SNTP client; sufficient for most clients

Caution

Only run one NTP application at a time. chrony, ntpd, and systemd-timesyncd will conflict if all three are active.

timedatectl - Unified Time Control

timedatectl                          # show time, timezone, NTP status
#               Local time: Sun 2023-03-05 16:13:50 UTC
#           Universal time: Sun 2023-03-05 16:13:50 UTC
#                 RTC time: Sun 2023-03-05 16:13:50
#                 Time zone: Etc/UTC (UTC, +0000)
#   System clock synchronized: yes
#               NTP service: active
#           RTC in local TZ: no

timedatectl list-timezones | grep Asia
sudo timedatectl set-timezone Asia/Kolkata
sudo timedatectl set-ntp true              # enable NTP sync

Configuring chrony (Recommended)

chrony is better than ntpd for environments with intermittent connectivity (laptops, VMs, containers).

sudo systemctl enable --now chronyd
chronyc tracking                   # current sync status and offset
chronyc sources -v                 # time sources with accuracy info
chronyc makestep                   # force immediate time correction

/etc/chrony.conf:

server 0.pool.ntp.org iburst
server 1.pool.ntp.org iburst
server 2.pool.ntp.org iburst
server 3.pool.ntp.org iburst

Configuring ntpd (Server Setup)

For running your own NTP server:

/etc/ntp.conf - client pool:

driftfile /var/lib/ntp/ntp.drift
pool 0.pool.ntp.org
pool 1.pool.ntp.org
pool 2.pool.ntp.org
pool 3.pool.ntp.org

/etc/ntp.conf - access control:

# Default policy: deny all modification/queries
restrict default nopeer nomodify notrap noquery
# Allow a specific subnet
restrict 192.168.1.0 mask 255.255.255.0 nopeer nomodify notrap
# Unrestrict localhost
restrict 127.0.0.1

/etc/ntp.conf - peer and self-as-source declarations:

peer 128.100.49.12            # peer with another NTP server
peer 192.168.0.1

# Declare self as stratum 10 (local clock fallback)
server 127.127.1.0
fudge 127.127.1.0 stratum 10
