Process Management

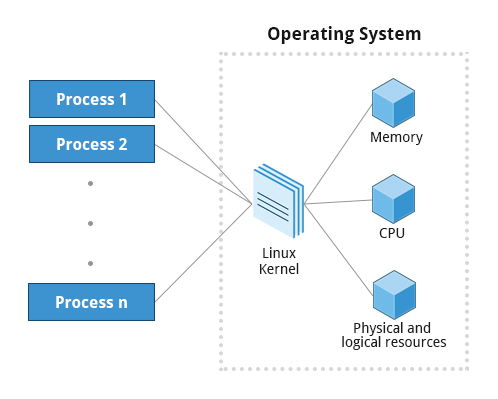

What Is a Process?

Note

A program is a set of instructions plus any data used to carry them out (internal strings, UI prompts) or referenced externally (databases, config files). It may consist of machine-level instructions executed directly by a CPU, or commands interpreted by another program.

A process is an instance of one or more related tasks (threads) executing on your computer. It is not the same as a program or a command - a single command may actually start several processes simultaneously.

Key properties of every process:

• Has a PID (Process ID), PPID (Parent PID), and PGID (Process Group ID)
• Has its own program code, data, variables, file descriptors, and environment
• Is isolated in its own user space to protect it from other processes
• Cannot access hardware directly - must use system calls (the fundamental interface between an application and the kernel)
• Is preemptively scheduled - only the kernel can preempt a process; processes cannot preempt each other

The maximum PID is 32768 (a 16-bit number). You can raise this limit via /proc/sys/kernel/pid_max for high-load servers. When the system reaches pid_max, PIDs wrap around and start again from 300.

---

Process Context and Context Switching

Every process, at any moment, can take a snapshot of itself: its CPU registers, where it is in the program, what is in its memory, open files. This snapshot is the context of the process.

Because processes are constantly scheduled in and out - either sharing CPU time with others, or sleeping while waiting for I/O or user input - the kernel must be able to:

1. Save the entire context when swapping a process out
2. Restore the exact context when resuming execution

This mechanism is called context switching and is the core of how multitasking works.

---

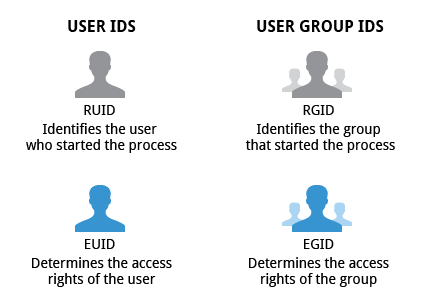

User and Group IDs

ID	Description
RUID (Real User ID)	Identifies the user who started the process
EUID (Effective User ID)	Determines actual access rights; may differ from RUID
RGID (Real Group ID)	Identifies the group of the process owner
EGID (Effective Group ID)	Determines actual group-level access rights

setuid Programs

Programs marked with the s execute bit run with the user ID of the file owner, not the user who launched them. These are setuid programs.

Example: passwd is a setuid program owned by root. Any user can run it, and the process runs as root to write to /etc/passwd and /etc/shadow. This is intentional - but setuid programs owned by root are a potential security risk and should be audited carefully.

---

Process Types

Type	Description	Examples
Interactive	Started by a user (CLI or GUI); needs a terminal	bash, firefox, top
Batch	Automated; disconnected from terminal; run in FIFO queue	updatedb, ldconfig
Daemon	Runs continuously in background; no controlling terminal	httpd, sshd, libvirtd
Thread	Lightweight task under a main process; shares memory with it; can end independently	firefox, gnome-terminal-server
Kernel Thread	Internal kernel tasks; users cannot control them	kthreadd, migration, ksoftirqd

Daemons in Detail

Daemons are background processes whose sole purpose is to provide services to users or the system:

• Only operate when needed - efficient by design
• Many start at boot; others start on demand (xinetd, socket-activated services)
• Names often end in d: httpd, sshd, crond, systemd-udevd
• May respond to external events (udevd) or elapsed time (crond)
• Have no controlling terminal and no standard input/output
• Kernel-created processes appear with names in square brackets [kworker/0:0] in ps output

---

Process States

State	What it means
Running (R)	Currently executing on a CPU, or in the run queue ready to execute
Sleeping (S/D)	Waiting for an event (I/O, signal, timer); S = interruptible, D = uninterruptible
Stopped (T)	Execution suspended - e.g. by CTRL-Z or a debugger (SIGSTOP)
Zombie (Z)	Finished execution but parent hasn’t called wait() yet; holds a process table slot but no resources

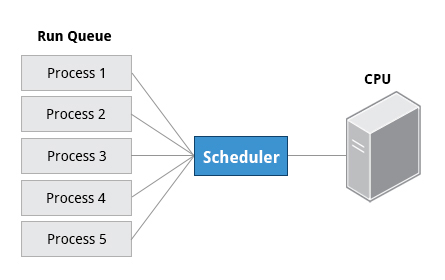

The kernel scheduler constantly shifts processes on and off CPUs, sharing time according to priority, how much time a process needs, and how much it has already received.

• Runnable processes live on the run queue (one per CPU core)
• Sleeping processes live on the wait queue
• Zombie processes are cleaned up when the parent calls wait() or when the parent exits

---

Process and Thread IDs

ID Type	Description
PID	Unique process ID; assigned sequentially at creation
PPID	Parent Process ID; if parent dies, orphans are adopted by init (PID 1) or kthreadd (PID 2)
TID	Thread ID; same as PID for single-threaded processes; each thread in a multi-threaded process gets a unique TID

PID 1 is always init (or systemd on modern systems). Kernel threads appear early in the PID sequence, wrapped in [brackets] in ps output.

---

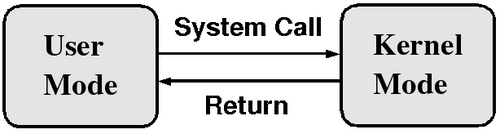

Execution Modes: User vs Kernel

Processes run in one of two CPU modes - enforced by hardware, not software:

Mode	Access	Intel Ring
User mode	Limited; cannot directly access hardware or other processes’ memory	Ring 3
Kernel mode	Full access to hardware, memory, all resources	Ring 0

• Each core has its own independent execution mode
• A process starts in user mode; when it needs a privileged operation, it makes a system call, which triggers a context switch to kernel mode
• After the system call completes, execution returns to user mode
• Application code never runs in kernel mode - only the kernel code of the system call does
• Kernel mode is also used for hardware interrupts, scheduling routines, and other management tasks

Note

Even root users and setuid programs operate in user mode. They can only access privileged resources through system calls.

---

Creating Processes: Fork and Exec

All processes in Linux are created via fork and exec:

• fork: Creates an exact copy (child) of the current process. The original parent continues running.
• exec: Replaces the child’s address space with a new program. The child’s PID is preserved.

The combination fork + exec is the standard mechanism for launching programs.

What Happens When You Run a Command in Bash

1. A new process is forked from your shell
2. A wait system call puts the parent shell to sleep
3. The program is loaded into the child’s space via exec (replacing bash)
4. The command runs to completion and the child exits
5. The shell is woken by the child’s death and prints a new prompt

For background commands (append &): the shell skips the wait call and immediately returns a new prompt while the child runs in parallel.

For shell built-ins (echo, cd, kill): neither fork nor exec is issued - they run directly within the shell process.

---

Resource Limits with ulimit

ulimit is a bash built-in that displays or sets per-process resource limits. Admins use it to:

• Restrict: prevent a runaway process from consuming all memory, open files, or CPU time
• Expand: allow a server to handle more than the default 1024 open file descriptors

ulimit -a                   # show all limits for current shell
ulimit -n 1600              # set max open files to 1600 (current session only)
ulimit -H -n                # show hard limit for open files
ulimit -S -n                # show soft limit for open files

Hard vs Soft Limits

Limit	Who controls it	Description
Hard	Root only	Maximum ceiling a user can raise to
Soft	Any user	Current active limit; can be raised up to hard limit

Changes made with ulimit only affect the current shell session. To persist limits across reboots for all users, edit /etc/security/limits.conf.

---

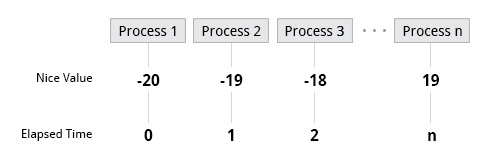

Process Priorities and Nice Values

When multiple processes compete for CPU time, the scheduler chooses based on priority. Linux uses a nice value (niceness) to express priority:

• Range: -20 (highest priority) to +19 (lowest priority)
• Default nice value for new processes: 0
• Lower nice = process gets more CPU time; it is less “nice” to other processes
• Higher nice = process yields to others; it is more “polite”

nice -n 10 myprog           # run myprog at nice value 10 (low priority)
nice -n 19 myprog           # run at lowest priority
nice -n -20 myprog          # run at highest priority (requires root)

renice +5 -p 20003          # raise nice value of running PID 20003 to 5
renice -5 -p 20003          # lower nice value (requires root)

Note

Only root (or a process with CAP_SYS_NICE) can decrease the nice value (increase priority). A non-privileged user who raises their nice value cannot lower it back - only root can.

To allow non-root users to set niceness within a range, configure /etc/security/limits.conf.

---

Load Averages

The load average measures how many processes are competing for CPU over time. It counts:

• Processes actively executing on a CPU
• Processes runnable but waiting for CPU time
• Processes in uninterruptible sleep (typically waiting for I/O)

Note

Linux load averages include uninterruptible sleepers (D-state processes). Other UNIX systems typically do not. This means Linux load averages can be higher than expected on I/O-heavy systems.

uptime
# 19:26:28 up 2 days, 12:08, 2 users, load average: 0.45, 0.17, 0.12

The three numbers represent the 1-minute, 5-minute, and 15-minute averages:

Value	Meaning (single CPU)
< 1.0	System has spare capacity
= 1.0	Fully utilized but not overloaded
> 1.0	Overloaded - processes waiting for CPU

For multi-core systems, divide by the number of cores. A load of 4.00 on a 4-core system = 100% utilized.

A spike in the 1-minute average is usually harmless (startup burst). A sustained high value in the 5- and 15-minute averages warrants investigation.

# Check load average
uptime
w
top                         # shown on the first line

---

Background and Foreground Jobs

By default, commands run in the foreground - your shell waits for them to finish.

long_command &              # run in background, shell returns immediately
jobs                        # list background jobs in this shell session
jobs -l                     # also shows PIDs

CTRL-Z                      # suspend the current foreground job
bg %1                       # resume job 1 in the background
fg %1                       # bring job 1 back to foreground
fg                          # bring most recent background job to foreground

CTRL-C                      # terminate the current foreground job

Note

Background jobs are tied to the terminal session. If you close the terminal, background jobs receive SIGHUP and typically die. To run a job that survives logout, use nohup command & or disown %1.

---

Monitoring Processes

The /proc Filesystem

/proc is a virtual filesystem that exposes kernel data structures as files. Every active process gets a directory named after its PID:

/proc/1234/          - directory for process PID 1234
/proc/1234/status    - name, state, memory, UIDs
/proc/1234/cmdline   - command + arguments
/proc/1234/fd/       - open file descriptors
/proc/1234/maps      - memory map
/proc/self/          - always points to the current process

Tools Overview

Tool	Purpose
ps	Point-in-time snapshot of processes
top	Live, auto-refreshing process view
htop	Enhanced top with colors, mouse, per-core bars
pstree	Process hierarchy as a tree
uptime	System uptime + load averages
mpstat	Per-CPU utilization
iostat	CPU + block device I/O statistics
sar	Collect and report system activity over time
strace	Trace system calls made by a process
numastat	NUMA memory allocation statistics

ps Command

ps takes a snapshot of currently running processes. Two option styles exist from different UNIX lineages:

# System V style (with dashes)
ps -ef                      # all processes, full detail
ps -u username              # processes for one user
ps -eLf                     # one line per thread

# BSD style (no dashes)
ps aux                      # all processes, all users
ps axo pid,ppid,stat,comm   # custom columns
ps --sort=-%cpu | head      # top CPU consumers
ps --sort=-%mem | head      # top memory consumers

# Target specific command
ps -C nginx                 # processes named 'nginx'

pstree

pstree                      # tree of all processes
pstree -p                   # include PIDs
pstree username             # only show processes from a user

Repeated entries are collapsed; threads appear in {curly braces}.

top - Live Process Viewer

top refreshes every 2 seconds. Press q to quit.

Understanding the top header:

Line	Content
Line 1	Uptime, logged-in users, load averages (1m/5m/15m)
Line 2	Process counts: total, running, sleeping, stopped, zombie
Line 3	CPU time split: us (user), sy (kernel), ni (nice), id (idle), wa (I/O wait), hi (hardware IRQ), si (soft IRQ), st (steal)
Line 4	RAM: total, free, used, buff/cache
Line 5	Swap: total, free, used, available

High wa (I/O wait) with high load = disk bottleneck. High us = CPU-bound application. High sy = kernel overhead.

Process columns:

Column	Meaning
PID	Process ID
USER	Owner
PR	Priority (kernel value)
NI	Nice value
VIRT	Total virtual memory claimed
RES	Resident (physical) memory used
SHR	Shared memory
S	State (R/S/D/Z/T)
%CPU	CPU usage since last refresh
%MEM	Physical memory percentage
TIME+	Total CPU time consumed
COMMAND	Process name/command

Interactive keys in top:

Key	Action
k	Kill a process (prompt for PID and signal)
r	Renice a process
f	Field/column configuration
o	Change sort order
A	Sort by top resource consumer
m	Toggle memory display
t	Toggle CPU summary display
1	Toggle per-core CPU breakdown
q	Quit

---

Signals and Process Termination

Signals are software interrupts sent to processes. The kernel, users, and other processes can send them.

kill -l                     # list all signals

# Terminate a process
kill PID                    # sends SIGTERM (15) - polite request to exit
kill -9 PID                 # sends SIGKILL - cannot be caught or ignored
kill -SIGTERM PID           # same as kill PID

# Other useful signals
kill -1 PID                 # SIGHUP - reload config (many daemons)
kill -2 PID                 # SIGINT  - same as CTRL-C
kill -15 PID                # SIGTERM - graceful termination
kill -19 PID                # SIGSTOP - pause (same as CTRL-Z, cannot be ignored)
kill -18 PID                # SIGCONT - resume stopped process

# By name
killall nginx               # send SIGTERM to all processes named 'nginx'
pkill -9 -u username        # kill all processes by user

Caution

kill -9 (SIGKILL) cannot be caught, blocked, or ignored by the process. The kernel handles it directly. Use it only as a last resort - processes killed this way have no opportunity to clean up open files or flush buffers.
