Kubernetes API & Object Model

Kubernetes is completely API-centric. Every resource - Pods, Services, Deployments, StatefulSets - is defined in the API. All configuration and all querying must pass through the API server. Understanding the API’s shape is the prerequisite for understanding everything else in Kubernetes.

The API Server

The API server is the front-end for the Kubernetes API and the central communication hub for the entire cluster. Every interaction with Kubernetes - kubectl commands, kubelet status reports, control plane components sharing state - is a REST call directed at the API server.

• Exposes a secure RESTful HTTPS interface, typically on port 443 or 6443
• All connections are encrypted with TLS; every request must pass authentication and authorization before it is accepted
• Runs as a set of Pods in the kube-system namespace on self-managed clusters; cloud providers fully manage it on hosted services
• Is stateless - it reads and writes all cluster state to etcd

Tip

kubectl proxy exposes the API on your local machine and handles authentication automatically. Once running, you can explore any endpoint with curl localhost:8001/api/v1/namespaces.

CRUD over REST

The API server manages resources using standard HTTP verbs mapped directly to CRUD operations:

CRUD	HTTP method	kubectl equivalent
Create	POST	kubectl create -f / kubectl apply -f
Read	GET	kubectl get
Update	PUT / PATCH	kubectl apply -f / kubectl edit
Delete	DELETE	kubectl delete

Serialisation

Kubernetes supports two serialisation formats:

Format	Used for	Why
JSON	External clients (kubectl, your code)	Human-readable, universally supported
Protobuf	Internal cluster component communication	Faster, more compact, better at scale

Clients indicate the format they accept via the HTTP Accept header; the API server responds with Content-Type: application/json for external requests.

---

Everything is an Object

The fundamental rule of Kubernetes: every entity in the cluster is an object. Pods, Nodes, Namespaces, ConfigMaps, Deployments, Services - all are objects stored in etcd, all are manipulated through the same API, and all follow the same manifest structure.

In object-oriented terms: a primitive (or resource type) is the blueprint, and an object is a running instance of that blueprint. Kubernetes assigns every object a system-generated UID to ensure it is uniquely identifiable even if objects of the same name are created and destroyed over time.

Note

If a resource type does not exist in the API, you cannot deploy it. Third-party tools extend the API by registering their own resource types via CustomResourceDefinitions (CRDs).

---

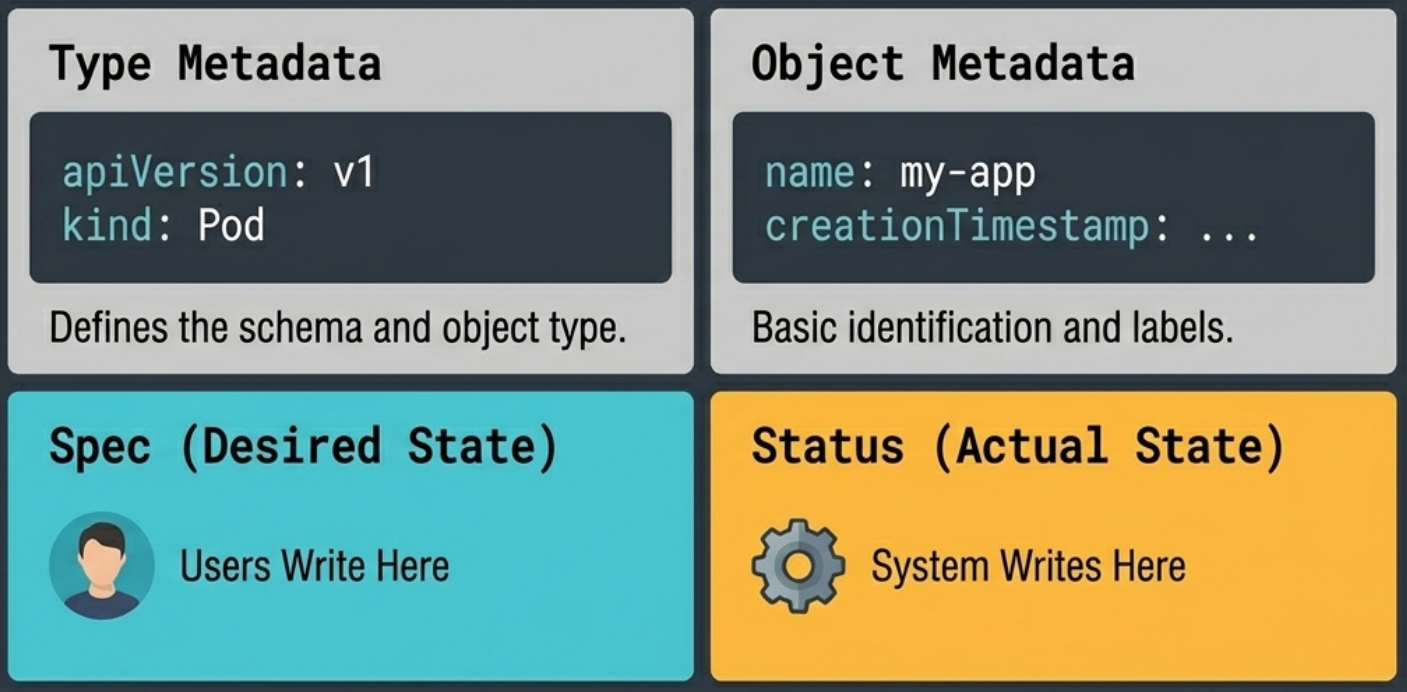

Manifest Structure

Every Kubernetes object is defined in a manifest - a structured YAML (or JSON) file. Manifests share a consistent five-section structure regardless of object type:

apiVersion: apps/v1          # API group + version
kind: Deployment             # resource type
metadata:                    # identity fields
  name: my-app
  namespace: production
  labels:
    app: my-app
spec:                        # desired state - you write this
  replicas: 3
  ...
status:                      # actual state - system writes this
  availableReplicas: 3
  ...

Section	Purpose	Who writes it
apiVersion	Defines the schema version and API group (e.g. apps/v1, v1)	You
kind	Declares the resource type (Pod, Deployment, Service…)	You
metadata	Identity: name, namespace, labels, annotations, uid, resourceVersion	You (uid/resourceVersion set by system)
spec	Desired state - what you want the object to look like	You
status	Actual state - what is currently running	System (controllers)

Even though you only write to spec and read from status, API GET and PUT requests always send and return the entire object.

Note

Not all objects have spec and status. Objects that hold only static data - Event objects are the prime example - lack these sections and a corrosponding controller. Because Kubernetes returns manifest fields alphabetically, Event manifests can look disorganised without the familiar spec/status grouping.

---

API Groups and Versioning

Kubernetes originally stored all resources in a single flat namespace. As the project grew, the API was reorganised into groups - modular collections of related resources.

The Two Types of API Groups

Group type	REST path	Contains
Core group	/api/v1	Original objects: Pods, Nodes, Services, Namespaces, ConfigMaps, Secrets
Named groups	/apis/{group}/{version}/	All newer resources: e.g. apps/v1 for Deployments, networking.k8s.io/v1 for Ingresses

The core group predates the concept of API groups and carries no group name in its path (represented as "" in documentation).

A useful mnemonic for the named-group REST path structure is GVR - Group, Version, Resource:

/apis/apps/v1/deployments
       ^^^^  ^^ ^^^^^^^^^^^
       Group Version Resource

Inspecting Your Cluster’s API

kubectl api-resources   # list all resource types, groups, shortnames, and scope
kubectl api-versions    # list all enabled API versions (e.g. apps/v1, batch/v1)

The Graduation Lifecycle

All new Kubernetes resources move through three maturity stages:

Stage	Characteristics	Default enabled
Alpha	Experimental; bugs expected; features may be removed without notice	❌ Usually disabled
Beta	Near-final; enabled by default; sometimes used in production (with care)	✅ Yes
GA (Stable)	Production-ready; long-term commitment from the project	✅ Yes

Deprecation Policy

Kubernetes has strict rules preventing API sprawl:

• Beta resources must either release a newer beta version or graduate to GA within 9 months of their last release
• GA resources are only deprecated once a newer stable version exists, then supported for 12 months or 3 releases (whichever is longer) before removal
• Deprecated resources trigger a CLI deprecation warning, a k8s.io/deprecated:true audit log annotation, and a Prometheus gauge metric

---

The Declarative Model

Kubernetes strongly prefers a declarative approach to managing objects: you describe the end state you want, and Kubernetes figures out how to get there.

Model	How it works	When to use
Declarative	Describe desired state in a YAML manifest; kubectl apply it	Production, GitOps, anything that needs version control
Imperative	Issue direct commands (kubectl run, kubectl create)	Quick experiments, exam environments, one-off debugging

The declarative model rests on three concepts that apply to every object in the cluster:

• Desired state - what you specified in the manifest (spec)
• Observed state - what is actually running right now (status)
• Reconciliation - the continuous process of closing the gap between the two

flowchart LR
    A["Desired state (spec)"] --> B["Controller compares"]
    B --> C{Gap?}
    C -- Yes --> D["Controller acts to close gap"]
    C -- No --> E["No action"]
    D --> B

Why the declarative model matters in practice:

• Self-healing: if a node kills 2 of your 10 replicas, the observed count drops to 8 - a controller immediately schedules 2 replacements
• Rollouts: update the image tag in your YAML and apply it - the Deployment controller performs a rolling replacement without you scripting a thing
• GitOps-ready: manifests are plain files that live in version control, giving you auditable history and one-command rollback

---

The Object Hierarchy

Applications are rarely deployed as bare Pods. Kubernetes uses object nesting - wrapping objects inside higher-level controllers - where each layer adds operational value:

flowchart TD
    A["Container - app code + dependencies"] --> B["Pod - schedules container on the cluster"]
    B --> C["Deployment - self-healing, scaling, rolling updates"]

Pods

The Pod is the atomic, minimum unit of scheduling in Kubernetes. No workload - container, VM, or Wasm app - runs directly on a cluster; it must be wrapped in a Pod first.

Key characteristics:

• A Pod creates a shared execution environment (network stack, storage volumes, shared memory) for one or more containers
• All containers in a Pod share the same IP address and can reach each other via localhost
• Starting a Pod is atomic - Kubernetes only marks it ready once every container inside it is running
• Pods are mortal and immutable - when a Pod dies it is replaced, never resurrected; the replacement gets a new ID and IP. You never mutate a running Pod; you replace it

Pods are also the unit of scaling: to scale up, Kubernetes adds more Pods; to scale down, it removes Pods. You do not add containers to an existing Pod to scale.

Caution

Deploying standalone Pods directly is almost always wrong. Bare Pods have no self-healing - if they die, nothing recreates them. Use a controller (Deployment, StatefulSet, DaemonSet) instead.

Deployments

A Deployment wraps Pods and adds:

• Self-healing - replaces failed Pods to maintain the desired replica count
• Scaling - declaratively change the replica count
• Rolling updates and rollbacks - replace Pods progressively with zero downtime; revert if something goes wrong

Deployments run as a background watch loop: the Deployment controller continuously compares the observed Pod count against the desired count in the spec and takes corrective action.

Services

Because Pods are mortal, their IP addresses change whenever they are replaced. This IP churn problem makes it impossible to hard-code Pod IPs into client configuration.

A Service solves this by providing a stable network front-end for a dynamic set of Pods:

• Front-end: a stable DNS name, ClusterIP, and port that never changes
• Back-end: a continuously updated list of healthy Pods, selected by labels; traffic is load-balanced across them

As Pods come and go (scaling, rollouts, node failures), the Service tracks the changes automatically - clients always reach a live Pod without any reconfiguration.

---

Controllers and the Reconciliation Loop

Controllers are the engines that bring objects to life. For each object type there is usually a dedicated controller (Deployment controller, ReplicaSet controller, StatefulSet controller, etc.).

Every controller runs the same loop:

1. Read the desired state from the object’s spec
2. Observe the actual state of the cluster
3. Act to close any gap - this may mean creating/deleting objects, talking to cloud APIs, updating node configuration
4. Report the result by updating the object’s status

Controllers never act on infrastructure directly - they write objects to the API server and let downstream components (kubelets, the cloud controller manager) react.

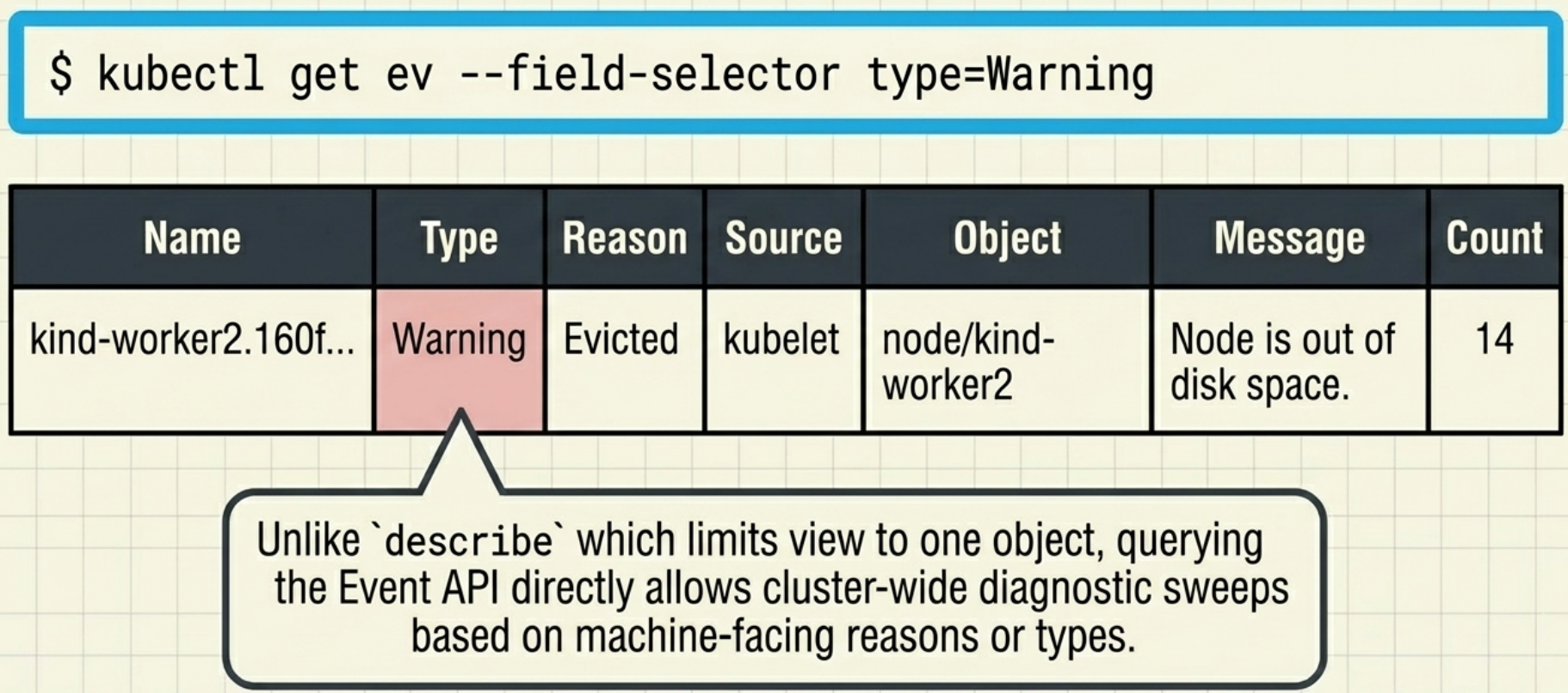

Controllers also generate events. As they work, they emit Event objects that record what they did or warn about failures. Events are:

• Categorised as Normal (informational) or Warning (something prevented reconciliation)
• Short-lived - automatically purged ~1 hour after creation to avoid flooding etcd
• The first place to look when diagnosing cluster problems

Example: Viewing Controller Events

kubectl get events
LAST SEEN   TYPE      REASON              OBJECT                                 MESSAGE
3m45s       Normal    Scheduled           pod/nginx-deployment-7fb96c846b-8q2zm  Successfully assigned default/nginx-deployment-7fb96c846b-8q2zm to node-1
3m44s       Normal    Pulling             pod/nginx-deployment-7fb96c846b-8q2zm  Pulling image "nginx:1.14.2"
3m42s       Normal    Pulled              pod/nginx-deployment-7fb96c846b-8q2zm  Successfully pulled image "nginx:1.14.2"
3m41s       Normal    Created             pod/nginx-deployment-7fb96c846b-8q2zm  Created container nginx
3m41s       Normal    Started             pod/nginx-deployment-7fb96c846b-8q2zm  Started container nginx
3m45s       Normal    SuccessfulCreate    replicaset/nginx-deployment-7fb96c846b Created pod: nginx-deployment-7fb96c846b-8q2zm
3m45s       Normal    ScalingReplicaSet   deployment/nginx-deployment            Scaled up replica set nginx-deployment-7fb96c846b to 1

Note

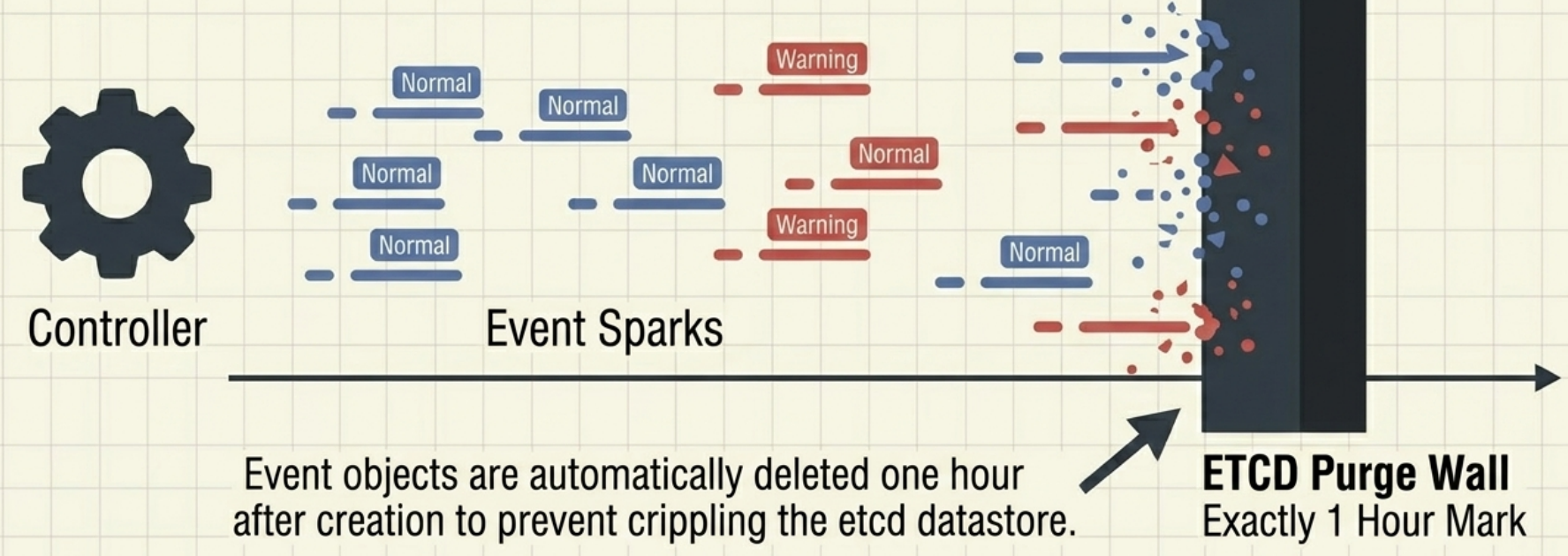

By default, Event objects are purged from etcd after one hour. The exact retention period is configurable via the --event-ttl flag on the API server.

---

Inspecting Objects

kubectl explain - built-in API reference

kubectl explain is an inline documentation tool that lets you explore any object’s fields without leaving the terminal:

kubectl explain pods                         # top-level fields for Pod
kubectl explain pods.spec.containers         # drill into containers list
kubectl explain deployment.spec.strategy.rollingUpdate
kubectl explain nodes --recursive            # full field tree (no descriptions)
kubectl explain nodes --api-version=v1       # pin to a specific schema version

Use it liberally when writing manifests - it prevents typos and tells you whether a field expects a string, a list, or a nested object.

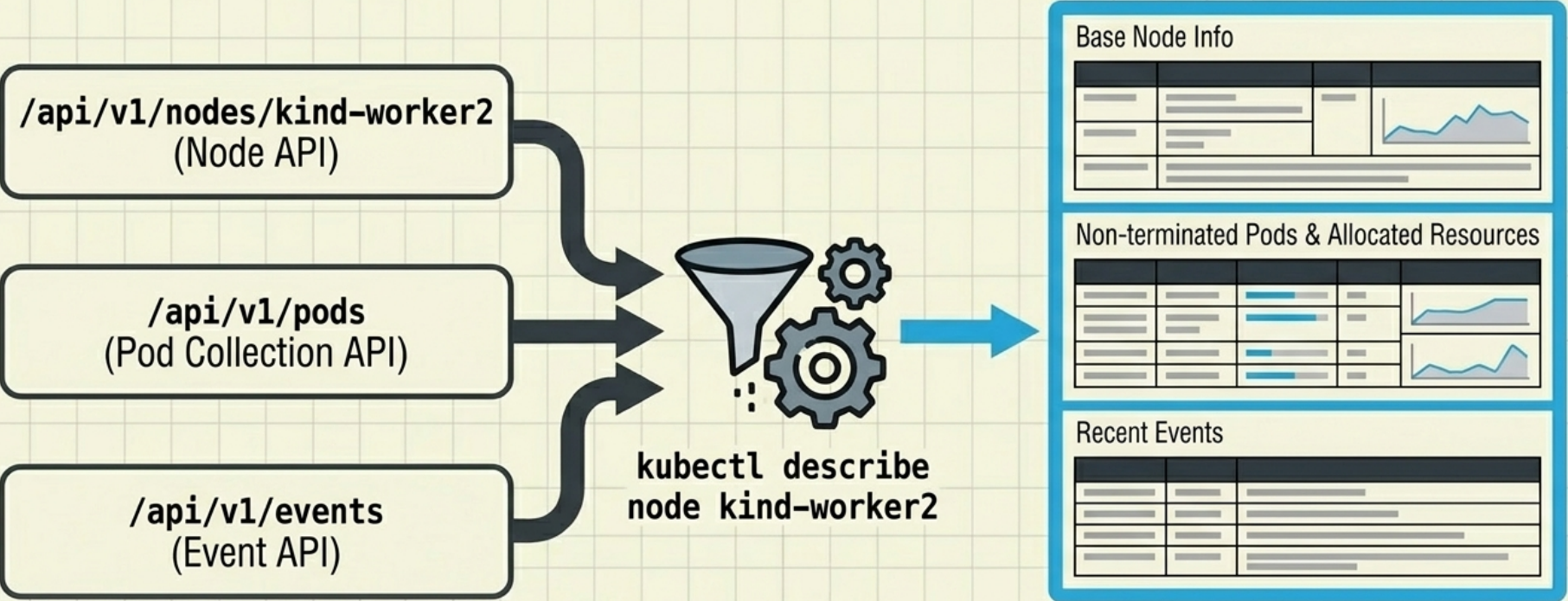

kubectl describe - human-readable summaries

kubectl describe aggregates data from multiple API endpoints into one readable view. For a Node it shows properties, running Pods, and recent events in a single output.

Note

The events displayed by kubectl describe are standalone objects, not part of the resource itself. Because many events can be created for an object in a short time, they are stored separately. You won’t find them in the object’s YAML manifest (kubectl get -o yaml).

kubectl describe node <name>
kubectl describe pod <name>
kubectl describe deployment <name>

Example: kubectl describe command on a Node object

kubectl describe node controlplane
Name:               controlplane
Roles:              control-plane
Labels:             beta.kubernetes.io/arch=amd64
                    beta.kubernetes.io/os=linux
                    kubernetes.io/arch=amd64
                    kubernetes.io/hostname=controlplane
                    kubernetes.io/os=linux
                    node-role.kubernetes.io/control-plane=
                    node.kubernetes.io/exclude-from-external-load-balancers=
Annotations:        node.alpha.kubernetes.io/ttl: 0
                    volumes.kubernetes.io/controller-managed-attach-detach: true
CreationTimestamp:  Mon, 20 Jul 2026 19:13:35 +0000
Taints:             <none>
Unschedulable:      false
Lease:
  HolderIdentity:  controlplane
  AcquireTime:     <unset>
  RenewTime:       Thu, 23 Jul 2026 16:13:57 +0000

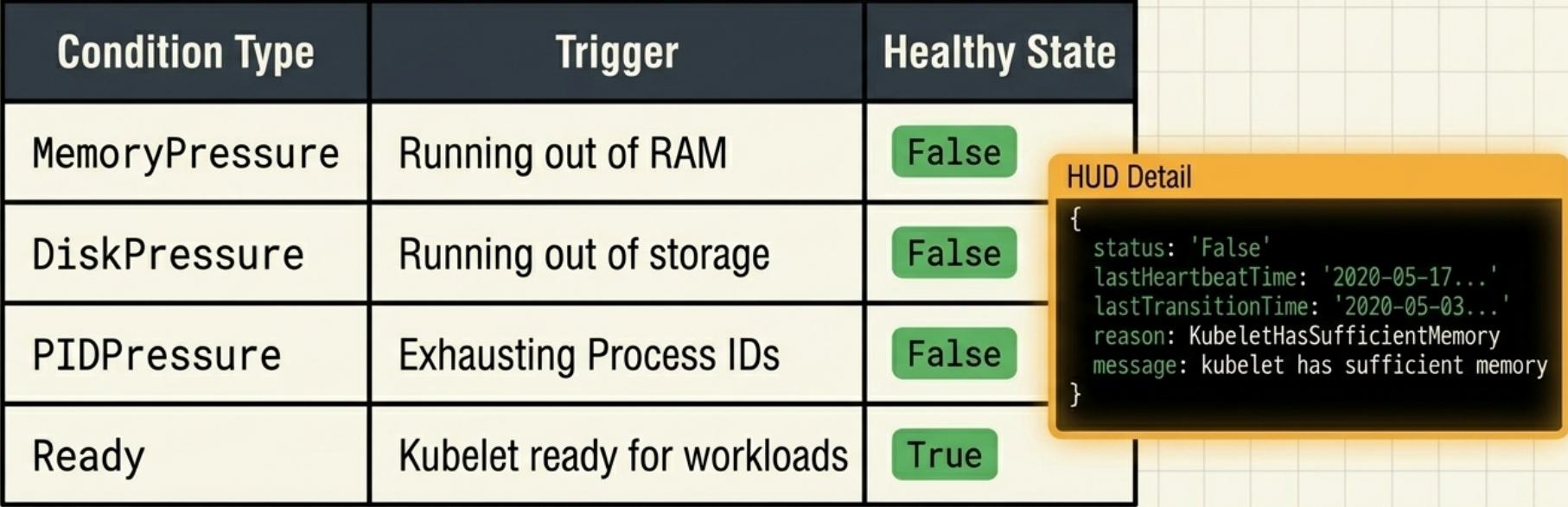

Conditions:
  Type                 Status  LastHeartbeatTime                 LastTransitionTime                Reason                       Message
  ----                 ------  -----------------                 ------------------                ------                       -------
  NetworkUnavailable   False   Mon, 20 Jul 2026 19:14:16 +0000   Mon, 20 Jul 2026 19:14:16 +0000   CiliumIsUp                   Cilium is running on this node
  MemoryPressure       False   Thu, 23 Jul 2026 16:11:45 +0000   Mon, 20 Jul 2026 19:13:34 +0000   KubeletHasSufficientMemory   kubelet has sufficient memory available
  DiskPressure         False   Thu, 23 Jul 2026 16:11:45 +0000   Mon, 20 Jul 2026 19:13:34 +0000   KubeletHasNoDiskPressure     kubelet has no disk pressure
  PIDPressure          False   Thu, 23 Jul 2026 16:11:45 +0000   Mon, 20 Jul 2026 19:13:34 +0000   KubeletHasSufficientPID      kubelet has sufficient PID available
  Ready                True    Thu, 23 Jul 2026 16:11:45 +0000   Mon, 20 Jul 2026 19:13:35 +0000   KubeletReady                 kubelet is posting ready status
Addresses:
  InternalIP:  172.30.1.2
  Hostname:    controlplane
Capacity:
  cpu:                1
  ephemeral-storage:  19221248Ki
  hugepages-2Mi:      0
  memory:             2300144Ki
  pods:               110
Allocatable:
  cpu:                1
  ephemeral-storage:  18698430040
  hugepages-2Mi:      0
  memory:             2197744Ki
  pods:               110
System Info:
  Machine ID:                 b4f277f01b6649c285b0f3d7f640d633
  System UUID:                232503de-96e1-46b1-9460-6b9e6c84006d
  Boot ID:                    0f48326f-48eb-4636-82e1-c7917fba2d61
  Kernel Version:             6.8.0-136-generic
  OS Image:                   Ubuntu 24.04.4 LTS
  Operating System:           linux
  Architecture:               amd64
  Container Runtime Version:  containerd://2.2.1
  Kubelet Version:            v1.35.1
  Kube-Proxy Version:
PodCIDR:                      192.168.0.0/24
PodCIDRs:                     192.168.0.0/24
Non-terminated Pods:          (10 in total)
  Namespace                   Name                                       CPU Requests  CPU Limits  Memory Requests  Memory Limits  Age
  ---------                   ----                                       ------------  ----------  ---------------  -------------  ---
  kube-system                 cilium-7l688                               100m (10%)    1 (100%)    10Mi (0%)        1Gi (47%)      2d21h
  kube-system                 cilium-envoy-tc5rr                         0 (0%)        0 (0%)      0 (0%)           0 (0%)         2d21h
  kube-system                 cilium-operator-768c98966f-9n259           0 (0%)        0 (0%)      0 (0%)           0 (0%)         2d21h
  kube-system                 coredns-5f68d5bd7f-cl5xn                   50m (5%)      0 (0%)      50Mi (2%)        170Mi (7%)     2d20h
  kube-system                 coredns-5f68d5bd7f-qrs4d                   50m (5%)      0 (0%)      50Mi (2%)        170Mi (7%)     2d20h
  kube-system                 etcd-controlplane                          25m (2%)      0 (0%)      100Mi (4%)       0 (0%)         2d20h
  kube-system                 kube-apiserver-controlplane                50m (5%)      0 (0%)      0 (0%)           0 (0%)         2d20h
  kube-system                 kube-controller-manager-controlplane       25m (2%)      0 (0%)      0 (0%)           0 (0%)         2d20h
  kube-system                 kube-scheduler-controlplane                25m (2%)      0 (0%)      0 (0%)           0 (0%)         2d20h
  local-path-storage          local-path-provisioner-644f8b49d7-f2rts    0 (0%)        0 (0%)      0 (0%)           0 (0%)         2d20h
Allocated resources:
  (Total limits may be over 100 percent, i.e., overcommitted.)
  Resource           Requests    Limits
  --------           --------    ------
  cpu                325m (32%)  1 (100%)
  memory             210Mi (9%)  1364Mi (63%)
  ephemeral-storage  0 (0%)      0 (0%)
  hugepages-2Mi      0 (0%)      0 (0%)
Events:              <none>

kubectl get events - cluster event log

Because Event objects are standalone (not embedded in the object they describe), you query them separately:

kubectl get events                            # all recent events
kubectl get events -o wide                    # extra columns (source, count, timestamps)
kubectl get events --field-selector type=Warning   # warnings only
kubectl get node <name> -o json | jq .status.conditions   # isolate Node conditions

Properties of an Event Object:

Property	Description
Name	The name of this Event object instance. Useful only if you want to retrieve the given object directly from the API.
Type	The type of the event. Typically Normal or Warning.
Reason	A machine-facing description of why the event occurred.
Source	The component that reported this event, usually a controller.
Object	The object instance to which the event refers (e.g., pod/nginx).
Sub-object	The specific sub-object to which the event refers (e.g., a specific container within a pod).
Message	The human-facing description of the event.
First seen	The first time this event occurred. Since Event objects are purged over time, this may not be the absolute first time the event actually occurred in the cluster’s history.
Last seen	Events often occur repeatedly. This field indicates when this specific event last occurred.
Count	The number of times the event has occurred.

Status Conditions

Many objects express their health as an array of conditions rather than a single state field. Each condition is independent:

Condition field	Values	Meaning
type	e.g. Ready, MemoryPressure	What aspect is being measured
status	True / False / Unknown	Current evaluation
reason	short machine string	Why it last changed
message	human-readable string	Detailed context

Using an array of orthogonal conditions - rather than a single state - makes the API extensible: new conditions can be added without breaking existing clients that only watch for specific ones.

Example:

kubectl get node controlplane -o json | jq .status.conditions
[
  {
    "lastHeartbeatTime": "2026-03-20T19:14:16Z",
    "lastTransitionTime": "2026-03-20T19:14:16Z",
    "message": "Cilium is running on this node",
    "reason": "CiliumIsUp",
    "status": "False",
    "type": "NetworkUnavailable"
  },
  {
    "lastHeartbeatTime": "2026-03-23T15:56:26Z",
    "lastTransitionTime": "2026-03-20T19:13:34Z",
    "message": "kubelet has sufficient memory available",
    "reason": "KubeletHasSufficientMemory",
    "status": "False",
    "type": "MemoryPressure"
  },
  {
    "lastHeartbeatTime": "2026-03-23T15:56:26Z",
    "lastTransitionTime": "2026-03-20T19:13:34Z",
    "message": "kubelet has no disk pressure",
    "reason": "KubeletHasNoDiskPressure",
    "status": "False",
    "type": "DiskPressure"
  },
  {
    "lastHeartbeatTime": "2026-03-23T15:56:26Z",
    "lastTransitionTime": "2026-03-20T19:13:34Z",
    "message": "kubelet has sufficient PID available",
    "reason": "KubeletHasSufficientPID",
    "status": "False",
    "type": "PIDPressure"
  },
  {
    "lastHeartbeatTime": "2026-03-23T15:56:26Z",
    "lastTransitionTime": "2026-03-20T19:13:35Z",
    "message": "kubelet is posting ready status",
    "reason": "KubeletReady",
    "status": "True",
    "type": "Ready"
  }
]

---

Extending the API

The Kubernetes API is designed to be extended. The primary extension mechanism is CustomResourceDefinitions (CRDs):

• A CRD registers a new resource type in the API - it gets its own REST path, works with kubectl, and is stored in etcd like any native object
• CRDs alone are inert - to make a custom resource do something you must deploy a custom controller that watches for objects of that type and reconciles them
• This controller + CRD pairing is the foundation of the Operator pattern - the standard way to encode operational knowledge about stateful applications into Kubernetes itself
