Services

Every Pod gets an IP address but Pod IPs are volatile. Pods are recreated during rolling updates, scale-downs, node evictions, and crashes. If client code hardcodes a Pod IP, it breaks the moment that Pod is replaced.

Services solve this by providing a stable, permanent network endpoint in front of a dynamic group of Pods. The client talks to the Service; the Service talks to whatever Pods are healthy right now.

	Direct Pod access	Via a Service
Client IP target	Pod IP - changes on every restart	Cluster IP / DNS name - permanent
Load distribution	Manual	Automatic across healthy Pods
Pod failure handling	Client gets connection refused	Service silently reroutes to healthy Pods
Rolling update visibility	Client sees old Pod disappear	Client is unaware - traffic shifts transparently

---

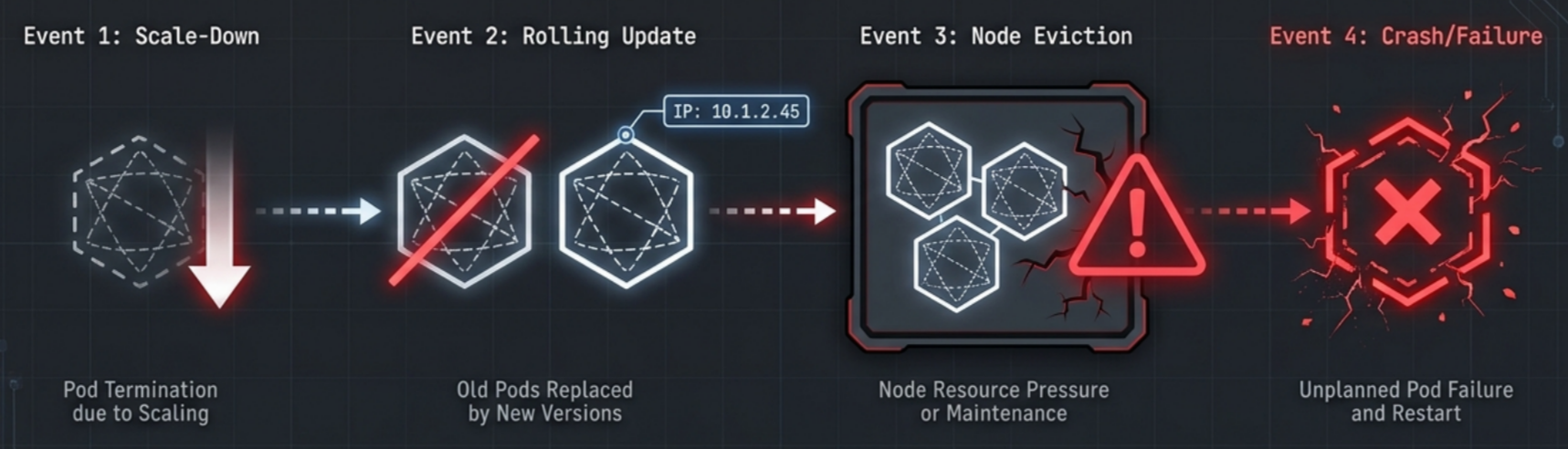

Why Pods Are Unreliable Network Targets

Pods are ephemeral by design. Kubernetes actively replaces them during:

• Rolling updates - old Pods are terminated as new ones come up
• Scale-down - excess replicas are removed to meet desired count
• Rollbacks - the pod template reverts, tearing down the current set
• Node maintenance or eviction - Pods on pressured or cordoned nodes are rescheduled elsewhere
• Container crashes - the pod is deleted and recreated (with a new IP) by the controller

Because Pods are continuously created, destroyed, and rescheduled, their IP addresses change constantly. Any direct Pod-to-Pod connection breaks as soon as one side is replaced.

Note

This is intentional. Kubernetes treats Pods as cattle, not pets - any individual Pod is disposable. The Service layer is where stability lives.

---

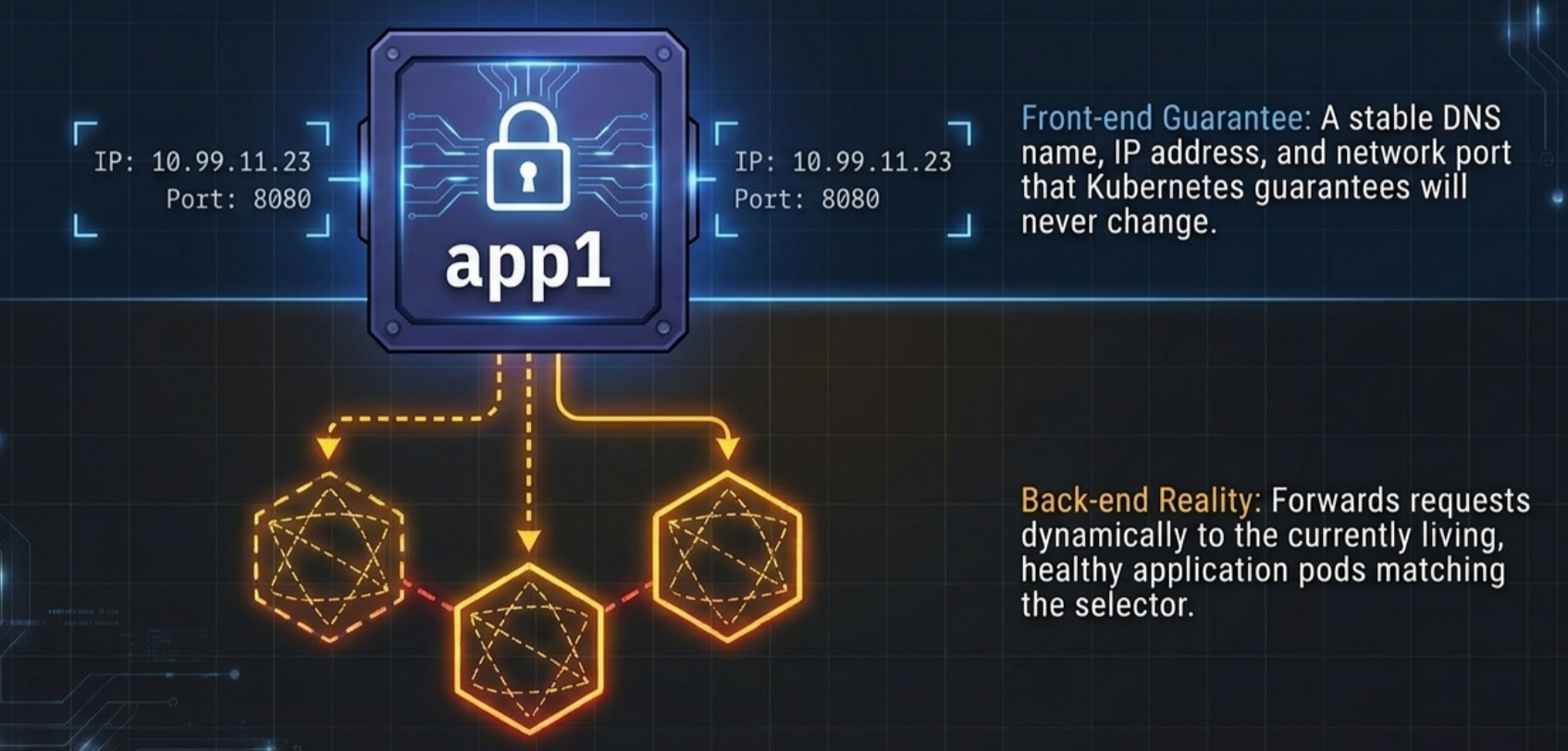

The Service Object

A Service is a first-class Kubernetes API resource that sits in front of one or more Pods and provides a permanent network endpoint.

Every Service is split into two halves:

Half	What it is	Stability
Front-end	DNS name + ClusterIP + port	Permanent - never changes for the lifetime of the Service
Back-end	Label selector → matching Pods	Dynamic - continuously updated as Pods come and go

The front-end never changes. The back-end is automatically kept in sync by the control plane.

---

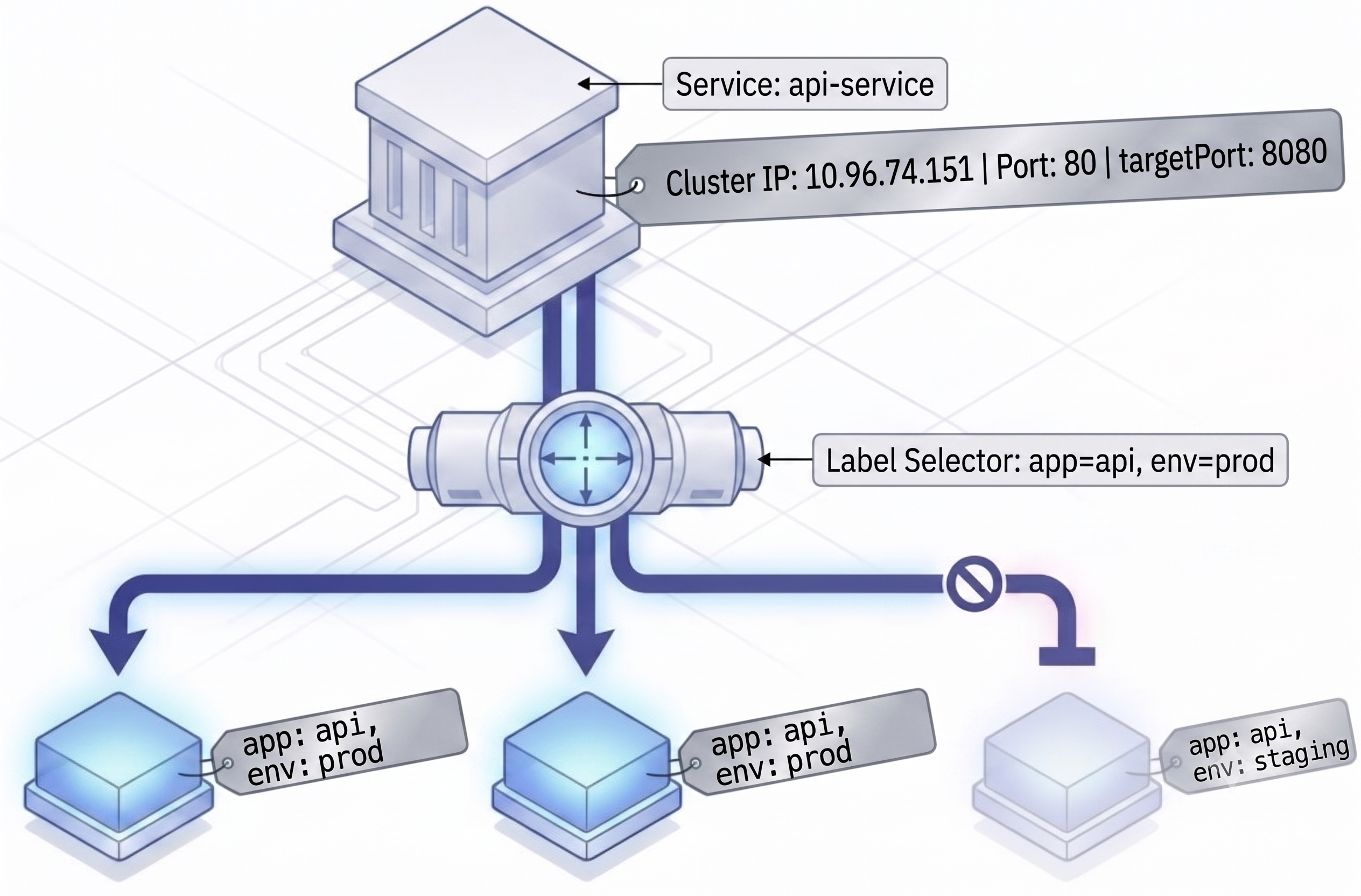

Label Selectors: Loose Coupling

Services do not maintain hardcoded links to specific Pods. They use label selectors - the same mechanism that Deployments use to manage their Pods.

Matching Rules

• AND logic - a Pod must match all labels in the selector to be included
• Extra labels are ignored - a Pod with additional labels beyond the selector still qualifies
• Missing one label = excluded - a Pod missing even one required label receives zero traffic

Example

apiVersion: apps/v1
kind: Deployment
metadata:
  name: web-server
spec:
  replicas: 4
  selector:
    matchLabels:
      app: web
      env: prod
  template:
    metadata:
      labels:
        app: web # ← Service will match on this
        env: prod # ← Service will match on this
        version: "2.1" # ← ignored by the Service selector
    spec:
      containers:
        - name: app
          image: company/web:2.1
          ports:
            - containerPort: 8080
---
apiVersion: v1
kind: Service
metadata:
  name: web-service
spec:
  selector:
    app: web # ← routes to Pods with BOTH of these labels
    env: prod
  ports:
    - port: 80
      targetPort: 8080

Given this setup:

Pod labels	Selected?	Reason
app: web, env: prod	✅ Yes	Exact match
app: web, env: prod, version: 2.1	✅ Yes	Extra label ignored
app: web	❌ No	Missing env: prod
app: web, env: staging	❌ No	env value doesn’t match

Caution

Because Services use the same labels as Deployments, accidentally giving a Pod labels that match the wrong Service’s selector will route traffic to it. Use distinct, specific label sets per workload.

Advantages of Loose Coupling

• Zero-downtime rollouts - during a rolling update, old and new Pods share the same labels; the Service automatically shifts traffic as old Pods terminate and new ones become ready
• Seamless scaling - add or remove replicas; the Service load-balances across all matching Pods without any manual update
• Blue/Green deployments - patch the Service selector to instantly switch traffic from one Deployment to another
• Canary deployments - two Deployments share a label; the Service distributes traffic by replica ratio

---

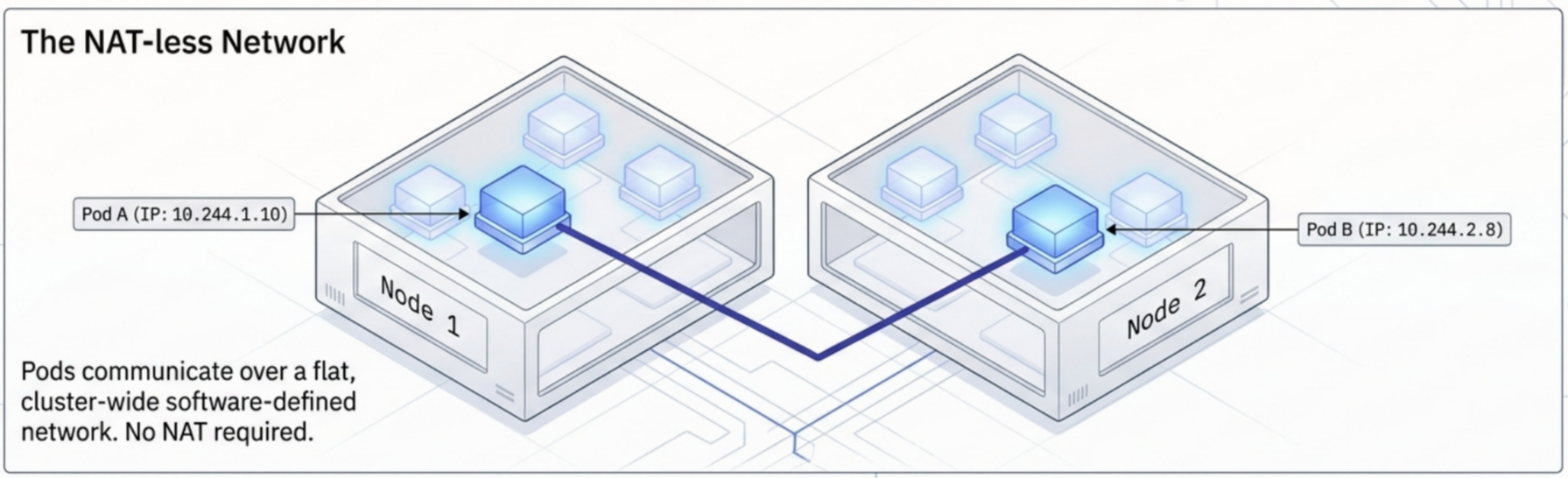

Pod Network Model

The foundation every Service builds on is the flat pod network:

• One IP per Pod - every Pod gets its own unique private IP and dedicated network interface
• Flat address space - every Pod can address every other Pod directly by IP, with no routing boundaries between them; the virtual overlay network abstracts the physical topology completely
• NAT-less communication - direct Pod-to-Pod packets are never SNAT’d or DNAT’d; the receiving Pod always sees the sender’s true IP
• Plugin-agnostic - all CNI plugins (Calico, Cilium, Flannel, etc.) are required to honour the NAT-less model regardless of implementation

The flat model makes Pod networking trivially simple, but it makes Pod IPs fragile network targets - hence Services.

Note

The flat model makes Pod networking trivially simple, but it makes Pod IPs fragile network targets - hence Services.

---

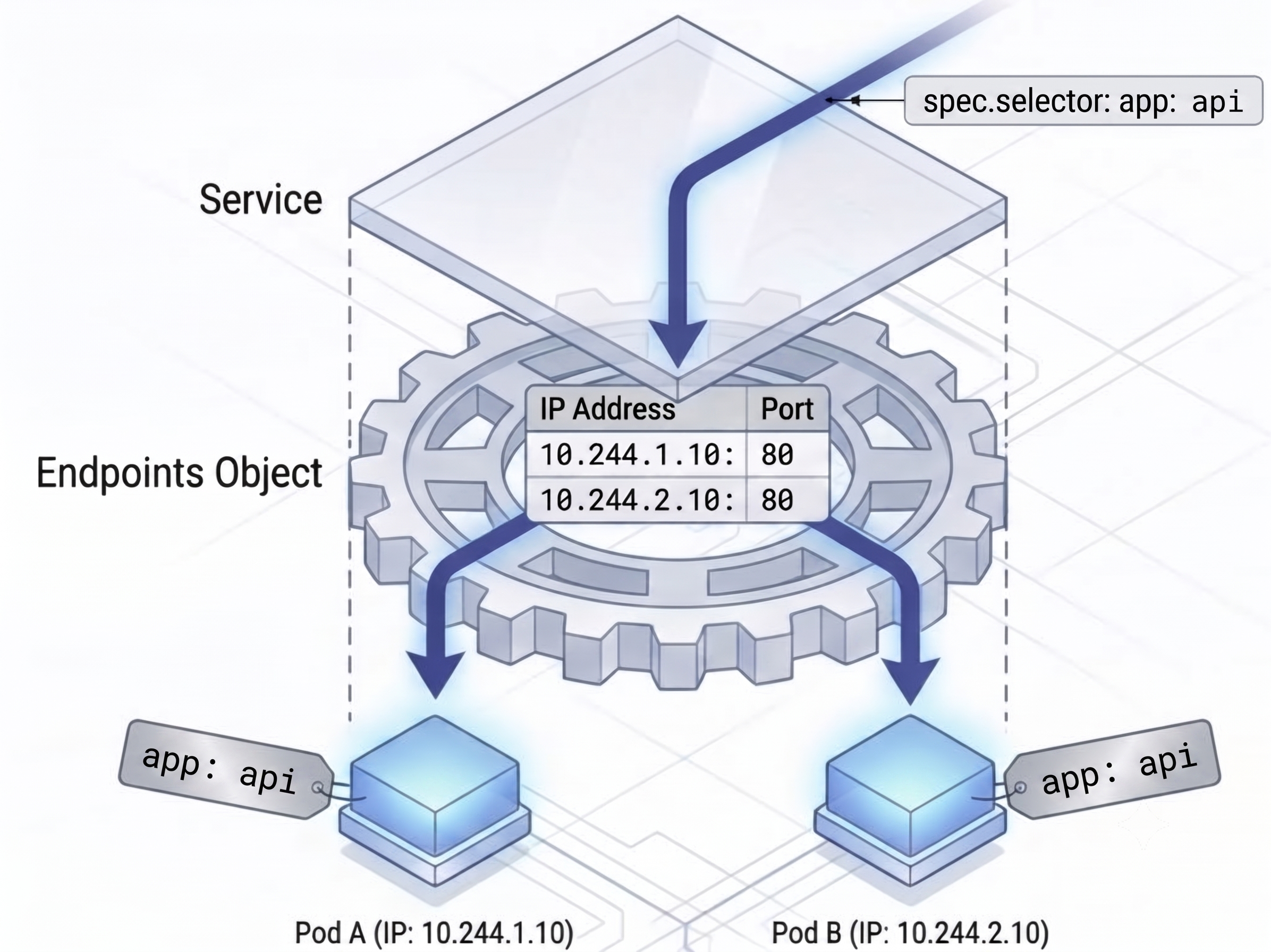

EndpointSlices: The Live Routing Table

The Service front-end (ClusterIP/DNS) is static. But the set of healthy backing Pods is always changing. EndpointSlices bridge the gap by maintaining a real-time list of healthy Pod IPs that match the Service’s selector.

How It Works

1. When a Service is created, the EndpointSlice controller automatically provisions an associated EndpointSlice object
2. The controller continuously watches the cluster for Pods matching the selector
3. New matching Pods are immediately added to the EndpointSlice; terminated or deleted Pods are immediately pruned
4. When a Service is deleted, Kubernetes automatically deletes all associated EndpointSlices

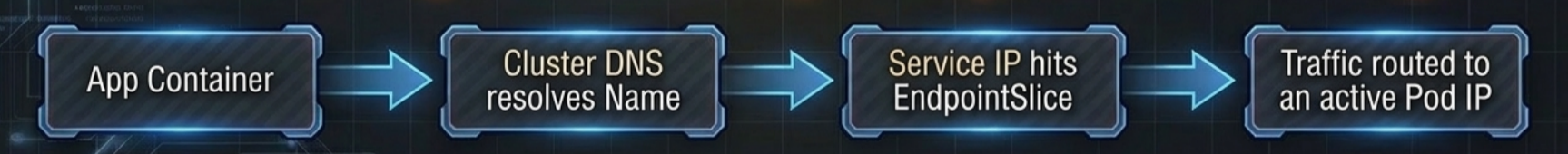

Traffic Flow

flowchart TD
    Client["Client Container"]
    DNS["Cluster DNS (CoreDNS)"]
    Service["Service (ClusterIP Intercept)"]
    EPS[("EndpointSlice<br/>(Healthy Pod Registry)")]
    Pod["Active Pod<br/>(10.42.1.16:8080)"]
    Client -->|"1. DNS query: 'web-service'"| DNS
    DNS -.->|"Resolves to ClusterIP (10.96.45.12)"| Client
    Client -->|"2. Sends traffic to ClusterIP"| Service
    Service -.->|"3. Lookup backend"| EPS
    Service ==>|"Routes packet"| Pod

Inspecting EndpointSlices

# List EndpointSlices in the current namespace
kubectl get endpointslices

# Full details - shows addresses, conditions, node assignments
kubectl describe endpointslice <name>

Unlike Endpoints objects (which share the exact name of their Service), each EndpointSlice has a randomly generated suffix appended to the service name (e.g. my-svc-x4k9p). This is intentional - multiple slices can exist for one Service when Pod count exceeds 100. To list only the slices belonging to a specific Service, use the auto-applied kubernetes.io/service-name label:

# Filter EndpointSlices by Service name
kubectl get endpointslices -l kubernetes.io/service-name=<service-name>

A typical describe output exposes:

Field	What it shows
AddressType	IPv4 or IPv6
Ports	Protocol + port number the container listens on
Addresses	Dynamic Pod IP (e.g. 10.42.1.16)
Conditions	Ready: true - only ready Pods receive traffic
TargetRef	The specific Pod object backing this endpoint
NodeName	Which worker node the Pod is scheduled on

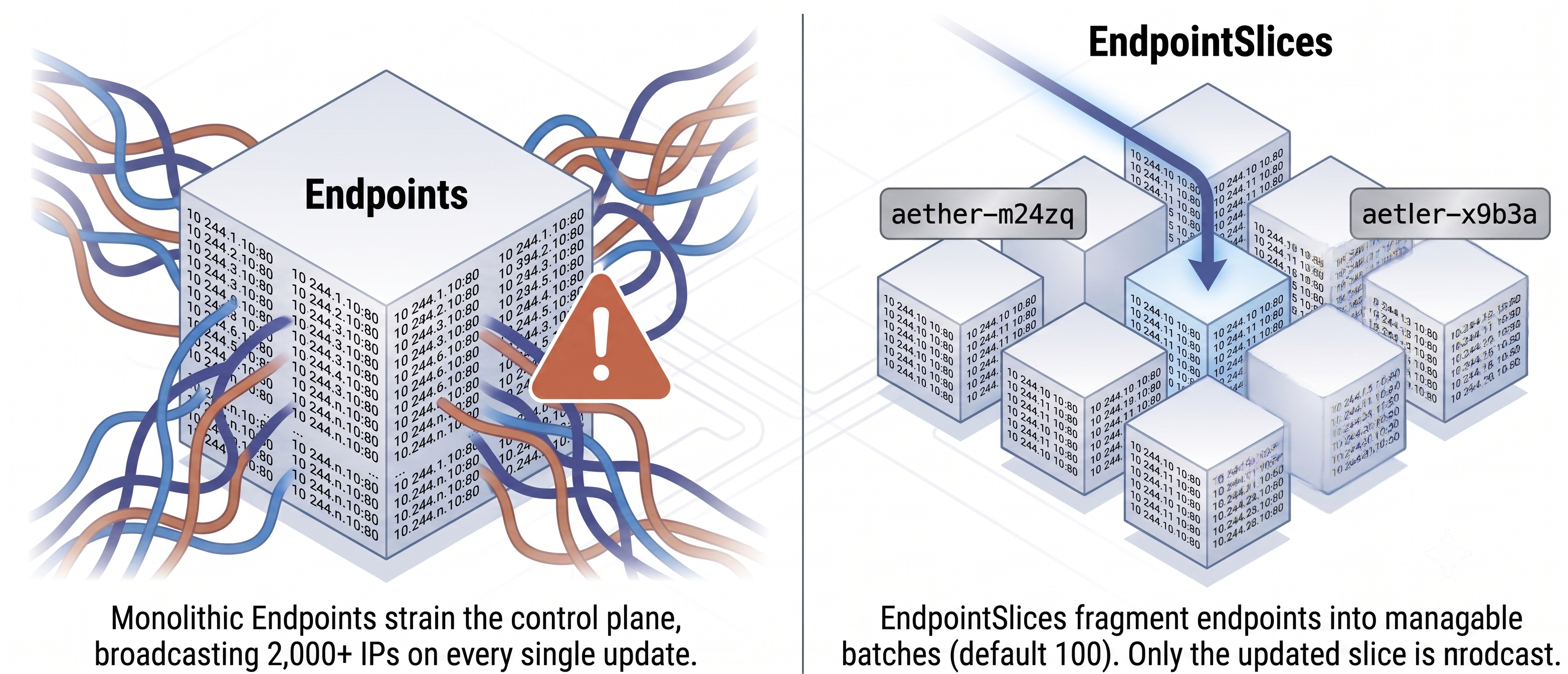

EndpointSlices vs. the Legacy Endpoints Object

	Endpoints (legacy)	EndpointSlices (current)
Structure	Single monolithic object	Split into chunks of ≤ 100 Pods each
Scalability issue	Any Pod state change forces a full re-send of the entire object across the control plane	Only the affected slice is updated - drastically less API churn
Dual-stack	Not supported cleanly	Auto-creates separate slices for IPv4 and IPv6

Note

If a Service maps to more than 100 Pods, Kubernetes automatically generates multiple EndpointSlice objects. Clients and kube-proxy consume all of them transparently.

---

Service Types

Kubernetes provides three primary Service types. They are not separate architectures - they use a stacked design where each type builds on the one below it.

flowchart TD
    subgraph LB ["fa:fa-cloud <b>LoadBalancer</b> (Cloud Integration)"]
        direction TB
        LB_DESC["Public IP & cloud provider LB (AWS NLB, GCP LB, Azure LB)"]

        subgraph NP ["fa:fa-network-wired <b>NodePort</b> (Node Interface)"]
            direction TB
            NP_DESC["Opens port 30000–32767 on every cluster worker node"]

            subgraph CIP ["fa:fa-shield-halved <b>ClusterIP</b> (Base Layer)"]
                direction TB
                CIP_DESC["Internal virtual IP & CoreDNS name (routes to Pods)"]
            end
        end
    end

When you create a LoadBalancer Service, Kubernetes automatically allocates a NodePort and a ClusterIP in the background. You get all three layers.

Type	Access Level	Mechanism	EXTERNAL-IP	Primary Use Case
ClusterIP (default)	Internal only	Stable virtual IP on the cluster network; DNS name auto-registered	<none>	Pod-to-Pod communication - backend DBs, caches, internal APIs
NodePort	Internal + External	Opens a static port (30000-32767) on every node’s physical IP	<none>	Basic external access in bare-metal or dev clusters; underlies LoadBalancer
LoadBalancer	Public (cloud)	Provisions a cloud LB (AWS NLB, GCP LB, Azure LB) targeting the NodePorts	Cloud IP	Standard production ingress for web traffic on ports 80/443
ExternalName	Internal → Outbound	DNS CNAME alias - no proxying, no ClusterIP, no Pods selected	<none>	Aliasing an external service (e.g., external-service.example.com) behind a stable name

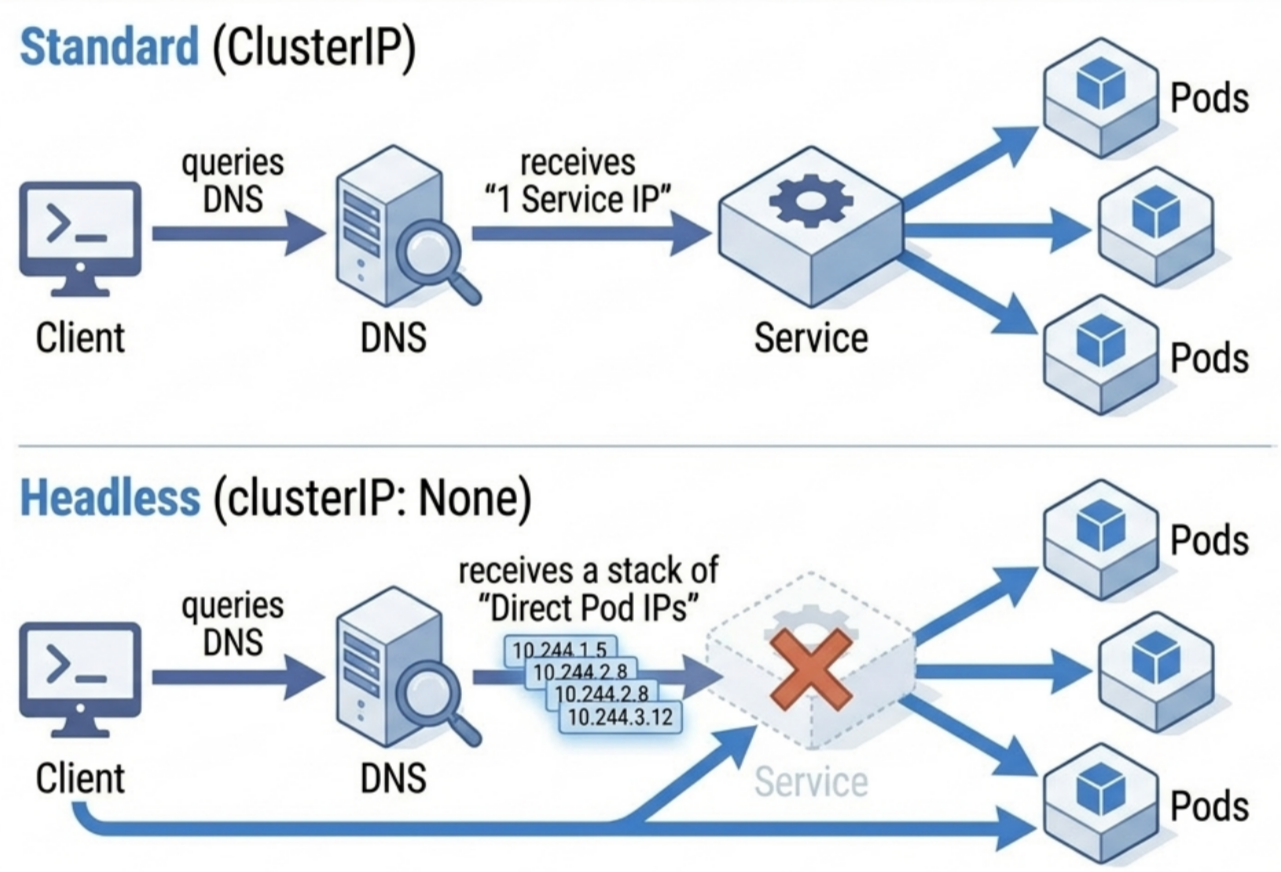

Headless	Internal (direct)	clusterIP: None - DNS returns all Pod IPs directly, no virtual IP	<none>	StatefulSets, client-side LB, peer discovery (Cassandra, Mongo replica sets)

---

ClusterIP: Internal Access Only

ClusterIP is the default type. It provides a stable IP and DNS name that are only reachable from inside the cluster.

apiVersion: v1
kind: Service
metadata:
  name: postgres # DNS name: postgres.default.svc.cluster.local
spec:
  type: ClusterIP # default - can be omitted
  selector:
    app: postgres
  ports:
    - port: 5432 # port the Service listens on
      targetPort: 5432 # port the container listens on

kubectl get svc postgres
# NAME       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)    AGE
# postgres   ClusterIP   10.96.45.12     <none>        5432/TCP   2m

Use when: a backend service (database, internal API, cache) only needs to be reachable by other workloads inside the cluster - not the internet.

Limitation: completely unreachable from outside the cluster. External clients receive no route to the ClusterIP.

Session Affinity

By default Services distribute connections randomly across all healthy Pods. Session affinity enables sticky routing so a specific client always lands on the same Pod.

spec:
  sessionAffinity: ClientIP # None (default) | ClientIP
  sessionAffinityConfig:
    clientIP:
      timeoutSeconds: 10800 # 3 hours - how long stickiness persists

• None - each connection is routed to a randomly selected Pod
• ClientIP - all connections from the same source IP are consistently routed to the same Pod

Caution

Services operate at Layer 4 (TCP/UDP) and are completely blind to HTTP. Cookie-based session affinity is not supported - cookies are an HTTP (Layer 7) concept. For cookie-based stickiness, use an Ingress controller.

---

NodePort: Basic External Access

NodePort builds on ClusterIP. It opens a dedicated high-numbered port on the physical IP of every cluster node, making the Service reachable from outside the cluster.

apiVersion: v1
kind: Service
metadata:
  name: web-nodeport
spec:
  type: NodePort
  selector:
    app: web
  ports:
    - port: 80 # internal ClusterIP port
      targetPort: 8080 # container port
      nodePort: 31080 # external port on every node (30000–32767); omit to auto-assign

Traffic path for an external client:

flowchart LR
    subgraph External["🌐 EXTERNAL NETWORK"]
        Client["👤 External Client"]
    end
    subgraph Cluster["☸️ KUBERNETES CLUSTER"]
        direction LR
        subgraph NodeLayer["🖥️ Worker Node"]
            NodePort["🚪 NodePort<br/><code>&lt;any-node-IP&gt;:31080</code>"]
        end
        subgraph ServiceLayer["⚙️ ClusterIP Service"]
            ClusterIP["🔌 Service Port<br/><code>ClusterIP:80</code>"]
        end
        subgraph PodLayer["📦 Application Pod"]
            PodPort["📥 Container Port<br/><code>Pod:8080</code>"]
        end
    end
    %% Traffic Flow Steps
    Client -->|"1. Request"| NodePort
    NodePort -->|"2. Forward"| ClusterIP
    ClusterIP -->|"3. Route"| PodPort
    %% Aesthetics & Styling
    style External fill:#0f172a,stroke:#38bdf8,stroke-width:2px,color:#e0f2fe
    style Cluster fill:#020617,stroke:#6366f1,stroke-width:2px,color:#e0e7ff
    style NodeLayer fill:#1e1b4b,stroke:#a855f7,stroke-width:1px,color:#f3e8ff
    style ServiceLayer fill:#311042,stroke:#c084fc,stroke-width:1px,color:#f3e8ff
    style PodLayer fill:#064e3b,stroke:#34d399,stroke-width:1px,color:#ecfdf5
    style Client fill:#1e293b,stroke:#38bdf8,stroke-width:2px,color:#ffffff
    style NodePort fill:#2e1065,stroke:#c084fc,stroke-width:2px,color:#ffffff
    style ClusterIP fill:#2e1065,stroke:#c084fc,stroke-width:2px,color:#ffffff
    style PodPort fill:#065f46,stroke:#34d399,stroke-width:2px,color:#ffffff

Use when: you need basic external access in a non-cloud environment (bare metal, on-premises) and can expose node IPs directly.

Limitations:

Limitation	Detail
Non-standard ports	Clients must connect on ports 30000–32767 - not usable for HTTP/HTTPS on port 80/443 without a load balancer in front
Node awareness required	Clients must know the node IPs; they must handle node failures themselves
No HA	If a node goes down, clients targeting that node’s IP lose connectivity until they retry another node

Caution

NodePort is rarely used directly in production. It is the underlying mechanism that LoadBalancer Services rely on. Expose it directly only for development, testing, or bare-metal clusters where a cloud load balancer isn’t available.

---

LoadBalancer: Production External Access

LoadBalancer is the recommended way to expose applications to the internet. It builds on NodePort and ClusterIP, then integrates with the underlying cloud platform to automatically provision a public load balancer.

apiVersion: v1
kind: Service
metadata:
  name: web-public
spec:
  type: LoadBalancer
  selector:
    app: web
  ports:
    - port: 443 # public-facing port on the load balancer
      targetPort: 8080 # container port

kubectl get svc web-public
# NAME         TYPE           CLUSTER-IP     EXTERNAL-IP     PORT(S)         AGE
# web-public   LoadBalancer   10.96.12.34    34.90.120.55    443:31234/TCP   3m
#                                            ↑ cloud LB IP automatically assigned

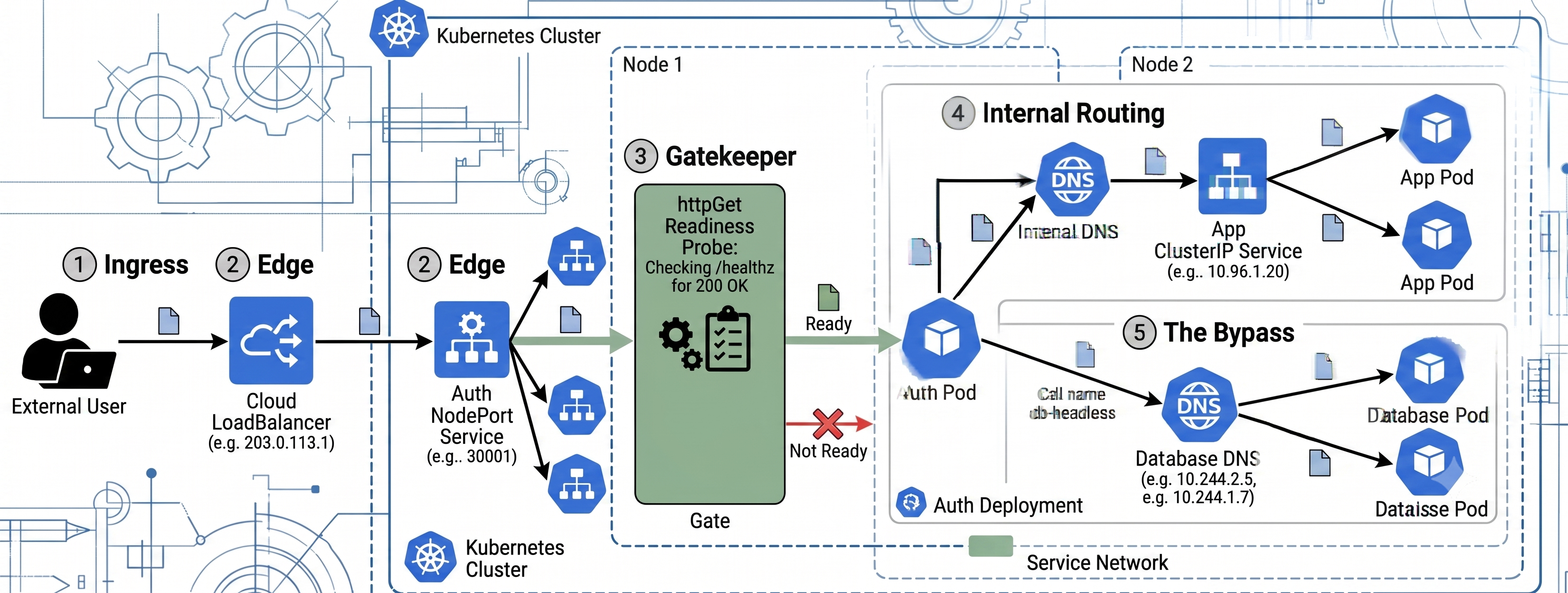

Full traffic path:

flowchart TD
    Client(["fa:fa-globe <b>Internet Client</b>"]):::extStyle

    subgraph Cloud [" <b>Cloud Provider Infrastructure</b> "]
        LB["fa:fa-cloud <b>Cloud Load Balancer</b><br/>AWS ALB / GCP LB / Azure LB<br/><small>Public IP: 34.90.120.55:443</small>"]:::cloudStyle
    end

    subgraph Cluster [" <b>Kubernetes Cluster</b> "]
        direction TB
        Node["fa:fa-server <b>Cluster Worker Node</b><br/><code>NodePort 31234</code> (kube-proxy)"]:::nodeStyle
        Svc["fa:fa-network-wired <b>Service</b> (ClusterIP 10.96.12.34)<br/>+ <b>EndpointSlice</b> lookup"]:::svcStyle
        Pod["fa:fa-cube <b>Healthy Pod</b><br/>Target Container: <code>port 8080</code>"]:::podStyle

        Node -->|"3. Translates to ClusterIP"| Svc
        Svc -->|"4. Selects active endpoint"| Pod
    end

    Client -->|"1. HTTPS request to :443"| LB
    LB -->|"2. Forwards to NodePort :31234"| Node

    classDef extStyle fill:#0284c7,stroke:#0369a1,stroke-width:2px,color:#ffffff;
    classDef cloudStyle fill:#0f172a,stroke:#38bdf8,stroke-width:2px,color:#f8fafc;
    classDef nodeStyle fill:#1e293b,stroke:#a855f7,stroke-width:2px,color:#f8fafc;
    classDef svcStyle fill:#1e293b,stroke:#eab308,stroke-width:2px,color:#f8fafc;
    classDef podStyle fill:#064e3b,stroke:#22c55e,stroke-width:2px,color:#f8fafc;

Use when: you need production-ready, highly available external access on standard ports (80, 443).

Note

On local development clusters (Kind, minikube, Docker Desktop), EXTERNAL-IP may show <pending> indefinitely - there is no cloud integration to provision a real LB. Use kubectl port-forward or a tool like MetalLB for local LB simulation.

On-Premises: MetalLB

Kubernetes has no native LoadBalancer implementation for bare-metal or on-premises clusters - the LoadBalancer type is a cloud-provider integration. On non-cloud clusters, EXTERNAL-IP stays <pending> forever.

MetalLB fills this gap by acting as a software load balancer controller:

• Watches for LoadBalancer Services and allocates IPs from a configured address pool
• Announces those IPs to the network via ARP (Layer 2 mode) or BGP (Layer 3 mode)
• Works on any bare-metal node, VM cluster, or local development cluster

Cost/architecture alternative: A single Ingress controller (one LoadBalancer Service) routes external traffic to many internal ClusterIP Services by hostname/path rules - far cheaper than provisioning one cloud LB per Service.

LoadBalancer Spec Fields

Four additional optional fields in spec control how the cloud LoadBalancer is provisioned:

Field	Type	Description
loadBalancerClass	string	Selects which LB controller handles this Service when multiple controllers are installed (e.g. metallb.universe.tf/metallb)
loadBalancerSourceRanges	[]string	Restricts inbound traffic to the listed CIDRs at the LB level - not supported by all providers
allocateLoadBalancerNodePorts	boolean	If false, skips NodePort allocation - for LB implementations that forward directly to Pod IPs without NodePorts (default: true)

spec:
  type: LoadBalancer
  loadBalancerClass: metallb.universe.tf/metallb  # pick a specific LB controller
  loadBalancerIP: 203.0.113.10                    # request a static IP (if provider supports it)
  loadBalancerSourceRanges:
    - 10.0.0.0/8      # allow only internal corporate network
    - 203.0.113.5/32  # plus one specific external IP
  allocateLoadBalancerNodePorts: false            # skip NodePorts; LB routes directly to Pods

Caution

loadBalancerIP is deprecated in Kubernetes v1.24+ for many cloud providers which now use provider-specific annotations for static IP assignment (e.g., service.beta.kubernetes.io/aws-load-balancer-eip-allocations). Use the appropriate annotation for your cloud instead.

ExternalName: DNS Alias for External Resources

An ExternalName Service maps an internal cluster DNS name to an external FQDN via a CNAME record. No ClusterIP is allocated, no Pods are selected, and no proxy is involved.

apiVersion: v1
kind: Service
metadata:
  name: time-svc # internal name pods use
spec:
  type: ExternalName
  externalName: external-service.example.com # target FQDN

DNS resolution path when a Pod calls http://time-svc:

time-svc.backend.svc.cluster.local
    → CNAME → external-service.example.com
    → A → 213.188.196.246

The Pod connects directly to the external IP. No kube-proxy, no virtual IP.

Why use it:

• Abstract external dependencies behind a stable internal name
• Swap from dev API to production by updating externalName alone - no app redeployment needed
• Clean migration: start with ExternalName pointing to an external host; later add a selector to switch to internal Pods

---

Headless Services: Direct Pod IP Access

Setting spec.clusterIP: None creates a headless Service - no virtual IP is allocated.

apiVersion: v1
kind: Service
metadata:
  name: db-headless
spec:
  clusterIP: None # disables virtual IP
  selector:
    app: postgres
  ports:
    - port: 5432
      targetPort: 5432

kubectl get svc db-headless
# NAME          TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)    AGE
# db-headless   ClusterIP   None         <none>        5432/TCP   1m

DNS behaviour changes completely:

	Standard ClusterIP Service	Headless Service
DNS A record returns	Single ClusterIP	Multiple A records - one per ready Pod IP
Client connects to	Virtual proxy IP	Pod IP directly
Ping works?	No - virtual IP, no interface	Yes - real Pod IP

# Standard service - single IP
nslookup postgres
# Address: 10.96.45.12    ← virtual ClusterIP

# Headless - multiple IPs, one per Pod
nslookup db-headless
# Address: 10.244.1.10    ← Pod 1 IP
# Address: 10.244.2.3     ← Pod 2 IP
# Address: 10.244.1.14    ← Pod 3 IP

When to use headless Services:

• StatefulSets - each Pod needs a stable direct address (the StatefulSet controller creates a headless Service automatically)
• Client-side load balancing - smart clients (e.g. database drivers, gRPC) read all Pod IPs and implement their own routing logic
• Peer discovery - distributed systems (Cassandra, MongoDB replica sets) need pods to connect directly to each other

publishNotReadyAddresses

By default, unready Pods are excluded from DNS records. Setting spec.publishNotReadyAddresses: true forces DNS to include all Pods regardless of readiness state. Useful for clustered databases that can’t pass readiness until they’ve found their peers - the bootstrap paradox.

---

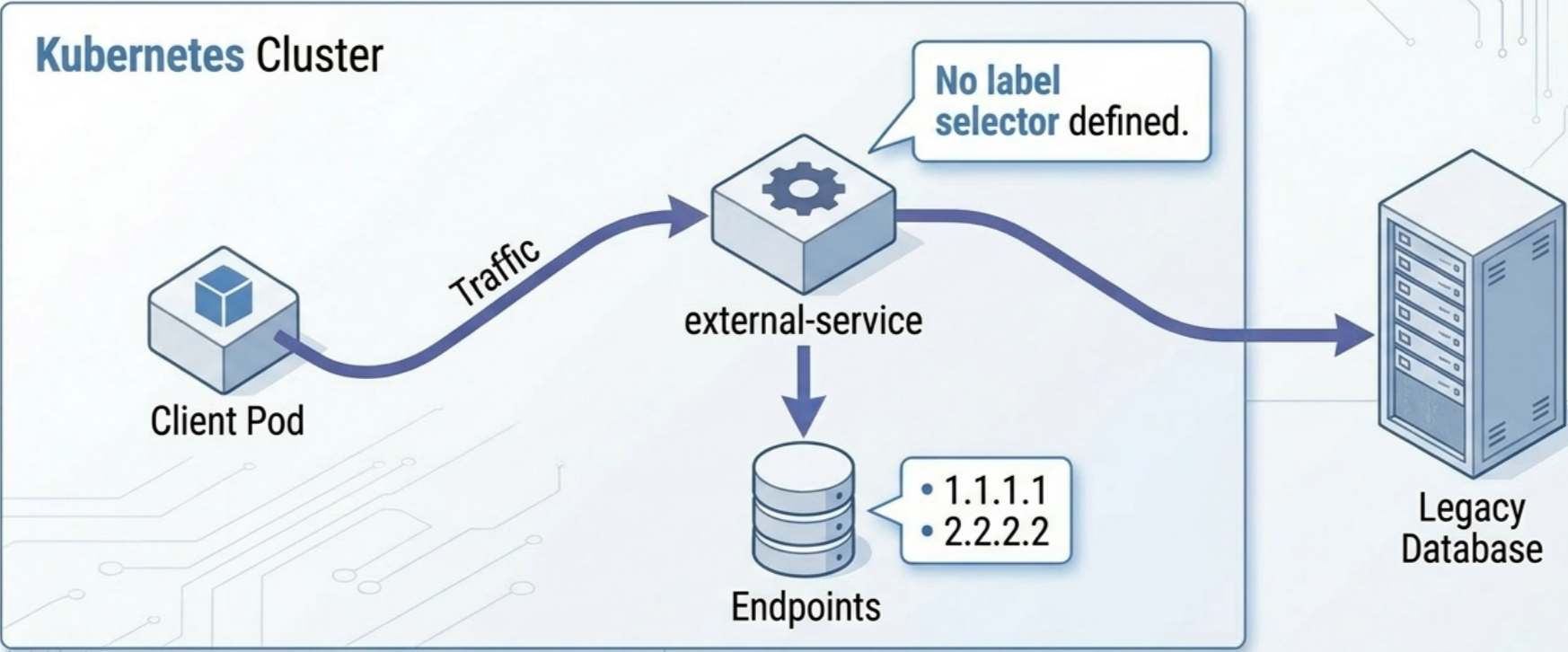

Manual Endpoints: Services Without Selectors

Omitting spec.selector lets you point a Service at any IP addresses manually - inside or outside the cluster.

Step 1 - Selectorless Service:

apiVersion: v1
kind: Service
metadata:
  name: external-db
spec:
  ports:
    - name: postgres
      port: 5432
  # no selector

Step 2 - Manual Endpoints object (same name):

apiVersion: v1
kind: Endpoints
metadata:
  name: external-db # must match Service name exactly
subsets:
  - addresses:
      - ip: 192.168.10.20 # external DB server 1
      - ip: 192.168.10.21 # external DB server 2
    ports:
      - name: postgres
        port: 5432

Note

You only need to create the Endpoints object - never the EndpointSlice. Kubernetes automatically derives the EndpointSlice from the Endpoints object. Traffic sent to the Service’s ClusterIP is then distributed across these endpoints exactly like any other Service.

Use cases:

• External databases / VMs / third-party APIs - expose them behind a stable cluster-internal DNS name without changing any client code
• Zero-downtime migration - update the Endpoints IPs to shift traffic between external and internal backends without touching any client configuration
• Transitioning to Pods - add a spec.selector to the Service and the control plane takes over Endpoints management automatically; remove the manual object

---

Port Fields and Traffic Flow

Traffic from a client to a Pod traverses three distinct port layers that must be correctly aligned:

flowchart TD
    subgraph ClientLayer["🌐 CLIENT LAYER"]
        Client["👤 External / Internal Client"]
    end

    subgraph ServiceLayer["⚙️ KUBERNETES SERVICE"]
        ServicePort["🔌 Service Port<br/><code>spec.ports[].port</code>"]
        TargetPort["🎯 Target Port<br/><code>spec.ports[].targetPort</code>"]
        ServicePort -->|"forwards to"| TargetPort
    end

    subgraph PodLayer["📦 POD / CONTAINER"]
        ContainerPort["📥 Container Port<br/><code>containers[].ports[].containerPort</code>"]
    end

    %% Traffic Flow
    Client -->|"connects to"| ServicePort
    TargetPort -->|"routes to"| ContainerPort

    %% Port Matching Relationship
    TargetPort -.->|"must match ⚡"| ContainerPort

    %% Styling & Color Aesthetics
    style ClientLayer fill:#0f172a,stroke:#38bdf8,stroke-width:2px,color:#e0f2fe
    style ServiceLayer fill:#1e1035,stroke:#a855f7,stroke-width:2px,color:#f3e8ff
    style PodLayer fill:#064e3b,stroke:#34d399,stroke-width:2px,color:#ecfdf5

    style Client fill:#1e293b,stroke:#38bdf8,stroke-width:2px,color:#ffffff
    style ServicePort fill:#2e1065,stroke:#c084fc,stroke-width:2px,color:#ffffff
    style TargetPort fill:#2e1065,stroke:#c084fc,stroke-width:2px,color:#ffffff
    style ContainerPort fill:#065f46,stroke:#34d399,stroke-width:2px,color:#ffffff

• port - the port the Service exposes on its ClusterIP; what clients connect to
• targetPort - the port the Service forwards traffic to on the Pod; defaults to port if omitted
• containerPort - the port the application inside the container actually listens on

Caution

Traffic silently fails if targetPort doesn’t match containerPort. The Service will show healthy endpoints but all connections will be refused.

ports:
  - port: 80 # Service listens on this (ClusterIP port)
    targetPort: 8080 # Forwards to this port on the Pod
    nodePort: 31080 # Opened on every node (NodePort/LoadBalancer only; auto-assigned if omitted)
    protocol: TCP # TCP (default), UDP, or SCTP
    name: http # Optional; required when multiple ports are declared

Field	Who uses it	Required?
port	Clients → Service	✅ Always
targetPort	Service → Pod	Defaults to port value if omitted
nodePort	External → Node	Auto-assigned if omitted (NodePort/LoadBalancer)

Note

In YAML specs, NodePort (capital N) is the Service type, while nodePort (lowercase n) is the port field inside spec.ports. They are different things.

---

Creating Services: Imperative Commands

For quick creation (CKA exam, prototyping, debugging) prefer imperative commands over writing YAML from scratch.

Create a standalone Service

# ClusterIP - --tcp flag format is <service-port>:<target-port>
kubectl create service clusterip my-svc --tcp=80:8080

# NodePort (port auto-assigned from 30000-32767)
kubectl create service nodeport my-svc --tcp=80:8080

# LoadBalancer
kubectl create service loadbalancer my-svc --tcp=443:8443

Expose an existing workload

# Expose a Deployment - inherits its labels as selector automatically
kubectl expose deployment my-app --port=80 --target-port=8080

# Expose as NodePort with a specific node port
kubectl expose deployment my-app --port=80 --target-port=8080 --type=NodePort

# Expose a specific Pod
kubectl expose pod my-pod --port=80 --target-port=8080 --name=my-pod-svc

Create Pod + Service simultaneously

# --expose creates the Service in one shot; --port sets both containerPort and service port
kubectl run echoserver --image=k8s.gcr.io/echoserver:1.10 --port=8080 --expose
# Output: service/echoserver created  +  pod/echoserver created

Change selector on a live Service

# Instantly redirect traffic (e.g., canary cutover, blue/green)
kubectl set selector service my-svc app=new-version

---

Service Discovery

DNS Service Discovery

Kubernetes runs an internal DNS server (CoreDNS by default) that automatically registers records for every Service.

Resolution Hierarchy

A Service named web in namespace backend is resolvable under four names, in order of specificity:

Name	Usable from
web	Same namespace only
web.backend	Any namespace
web.backend.svc	Any namespace
web.backend.svc.cluster.local	Any namespace (FQDN)

Pods in the same namespace can use the bare name because the Kubelet injects a /etc/resolv.conf search path:

search backend.svc.cluster.local svc.cluster.local cluster.local
nameserver 10.96.0.10
options ndots:5

The DNS resolver appends the search domains in order until a match is found, making web resolve transparently to the FQDN.

Pod DNS Policy

The Pod’s DNS server can be configured if needed using the dnsPolicy field in the Pod spec. spec.dnsPolicy controls how Kubernetes writes a Pod’s /etc/resolv.conf - it defaults to ClusterFirst if omitted.

Value	Behaviour	When to use
ClusterFirst (default)	Queries CoreDNS first; falls back to the node’s upstream DNS for non-cluster names	All standard workloads
Default	Uses the node’s DNS config directly - CoreDNS is not queried	Pods that must resolve external names the same way nodes do
None	Kubernetes writes no DNS config at all; you must supply it via spec.dnsConfig	Custom DNS setups, sidecar DNS proxies
ClusterFirstWithHostNet	Same as ClusterFirst but for Pods running with hostNetwork: true	DaemonSets or system Pods that share the host network stack

Caution

dnsPolicy: Default does not mean “use cluster defaults” - it means use the node’s OS-level DNS, bypassing CoreDNS entirely. Most workloads should stay on ClusterFirst.

spec.dnsConfig lets you append extra search domains, nameservers, or resolver options on top of whatever dnsPolicy sets:

spec:
  dnsPolicy: ClusterFirst
  dnsConfig:
    nameservers:
      - 1.1.1.1          # additional upstream, queried after CoreDNS
    searches:
      - extra.domain.com  # appended to the search list in resolv.conf
    options:
      - name: ndots
        value: "3"        # override the default ndots:5

DNS Record Types

For every standard Service, CoreDNS generates:

• A / AAAA records - map the Service name to its ClusterIP (or IPv6 equivalent). Even for LoadBalancer or NodePort Services, internal DNS always returns the internal ClusterIP - internal traffic never leaves the SDN
• SRV records - one record per named port, format: _<port-name>._<protocol>.<svc>.<ns>.svc.cluster.local. Lets smart clients discover ports dynamically without hardcoding them

# Verify DNS resolution from inside a Pod
kubectl exec <pod> -- nslookup web.backend

# Query a SRV record for port discovery
kubectl exec <pod> -- nslookup -query=SRV _http._tcp.web.backend

# Discover all services in a namespace
kubectl exec <pod> -- nslookup -query=SRV any.backend.svc.cluster.local

Note

Pinging a ClusterIP results in 100% packet loss. The ClusterIP is a virtual address managed by iptables/IPVS rules - it has no physical interface and does not respond to ICMP. Use curl or nc to verify connectivity.

---

Service Discovery via Environment Variables (Legacy)

When a container starts, the Kubelet injects environment variables for every Service active in that namespace at startup time.

For a Service named web on port 80:

WEB_SERVICE_HOST=10.96.45.12
WEB_SERVICE_PORT=80
WEB_PORT=tcp://10.96.45.12:80
WEB_PORT_80_TCP=tcp://10.96.45.12:80
WEB_PORT_80_TCP_PROTO=tcp
WEB_PORT_80_TCP_PORT=80
WEB_PORT_80_TCP_ADDR=10.96.45.12

Critical limitations:

• Race condition - variables are injected at container start only. If the Service is created after the Pod, the Pod has no vars for it. Restart the container (kubectl exec <pod> -- kill 1) to refresh
• Scale bottleneck - in large namespaces with hundreds of Services, injecting thousands of variables at container startup can exceed the OS argument list limit, crashing the container with:

  exec user process caused: argument list too long

Mitigation - disable injection for Pods that don’t need it:

spec:
  enableServiceLinks: false # Pod spec field

DNS is the preferred discovery method. Env vars exist for backward compatibility only.

---

External Traffic Policies

When external traffic arrives via NodePort or LoadBalancer, the receiving node may or may not host the destination Pod. The spec.externalTrafficPolicy field controls this.

	Cluster (default)	Local
Routing scope	Any Pod anywhere in the cluster	Only Pods on the node that received the connection
Extra network hop	Possible - node forwards to a remote Pod	None - connection stays node-local
Client IP visible to Pod	No - SNAT replaces client IP with node IP	Yes - client IP is preserved
Traffic distribution	Even across all Pods	Uneven - depends on Pod placement per node
If node has no local Pods	Forwards to another node	Connection fails/hangs

spec:
  externalTrafficPolicy: Local
  healthCheckNodePort: 32100 # LB uses this port to health-check nodes

Caution

With Local policy, if a node has no backend Pods for the Service, connections to that node hang. Configure healthCheckNodePort so the external load balancer can health-check nodes and stop routing to empty ones.

Local policy: two problems to know

• Problem 1 - dead-end nodes: if the node that received the connection has no local backend Pods, the connection hangs. Mitigate with healthCheckNodePort so the external LB health-checks nodes and stops routing to empty ones (see Caution above).

• Problem 2 - uneven Pod traffic: the external LB distributes connections evenly across nodes, but Pods are not always spread evenly across nodes. A node running 1 Pod receives the same share of node-level traffic as a node running 3 Pods - so the single Pod on the sparse node gets 3x the load per Pod.

  Node A: 1 Pod  → receives 33% of node traffic → Pod A gets 33%
  Node B: 3 Pods → receives 33% of node traffic → each Pod gets 11%

With Cluster policy, kube-proxy load-balances across all 4 Pods equally (each gets 25%). With Local, distribution depends entirely on how many Pods happen to land on each node.

When to choose Local:

• You need the client’s true source IP in application logs (web servers, audit logging)
• Pods are evenly spread across nodes (so problem 2 is negligible) and latency matters

When to stay with Cluster:

• Pods are not evenly distributed across nodes
• Even per-Pod traffic distribution is more important than source IP visibility

---

Internal Traffic Policy

spec.internalTrafficPolicy governs pod-to-pod traffic inside the cluster (as opposed to traffic from external clients).

spec:
  internalTrafficPolicy: Local # Cluster (default) | Local

• Cluster (default) - internal traffic is load-balanced across all healthy backend Pods cluster-wide
• Local - internal traffic is routed only to Pods on the same node as the calling Pod; if no local Pods exist, the connection fails immediately

Primary use case - DaemonSet device managers: a DaemonSet runs one device-controller Pod per node. Client Pods on the same node must send commands only to the local agent (not cross-node), since the commands are tied to that node’s physical hardware. internalTrafficPolicy: Local enforces this without custom routing.

---

Topology-Aware Routing

In multi-zone clusters, cross-zone traffic adds latency and cloud egress costs. Topology-aware hints steer Service traffic to endpoints in the same availability zone preferentially.

Enable:

apiVersion: v1
kind: Service
metadata:
  name: web-zone-aware
  annotations:
    service.kubernetes.io/topology-aware-hints: Auto
spec:
  selector:
    app: web
  ports:
    - port: 80

Prerequisites:

• All nodes must have the kubernetes.io/zone label set
• The Service must have enough endpoints (the controller skips hint generation for very small pools to avoid overloading one Pod)

How it works:

1. The EndpointSlice controller reads node kubernetes.io/zone labels and allocates endpoints to zones proportional to the zone’s total CPU capacity — a zone with more allocatable CPU cores is assigned more endpoints than a smaller zone
2. Hints are injected into each EndpointSlice entry as a hints.forZones field:

# EndpointSlice entry with topology hint injected by the controller
endpoints:
  - addresses:
      - 10.244.2.2
    conditions:
      ready: true
    hints:
      forZones:           # zones that should consume this endpoint
        - name: zone-a
    nodeName: node-worker-1
    zone: zone-a          # zone where this Pod is running

3. kube-proxy on each node reads the hints and programs iptables/IPVS rules to route traffic only to endpoints whose forZones includes that node’s zone — endpoints without the node’s zone in their hints are ignored

When hints are absent: if no hints exist in the EndpointSlice (e.g. the Service has too few endpoints), nodes fall back to cluster-wide routing and all endpoints receive traffic regardless of zone.

Caution

Topology hints are all-or-nothing per EndpointSlice — if any endpoint is missing a hint, the entire slice falls back to cluster-wide routing. You cannot manually influence the hint calculation; the only control is turning topology-aware routing on (Auto) or off (removing the annotation).

---

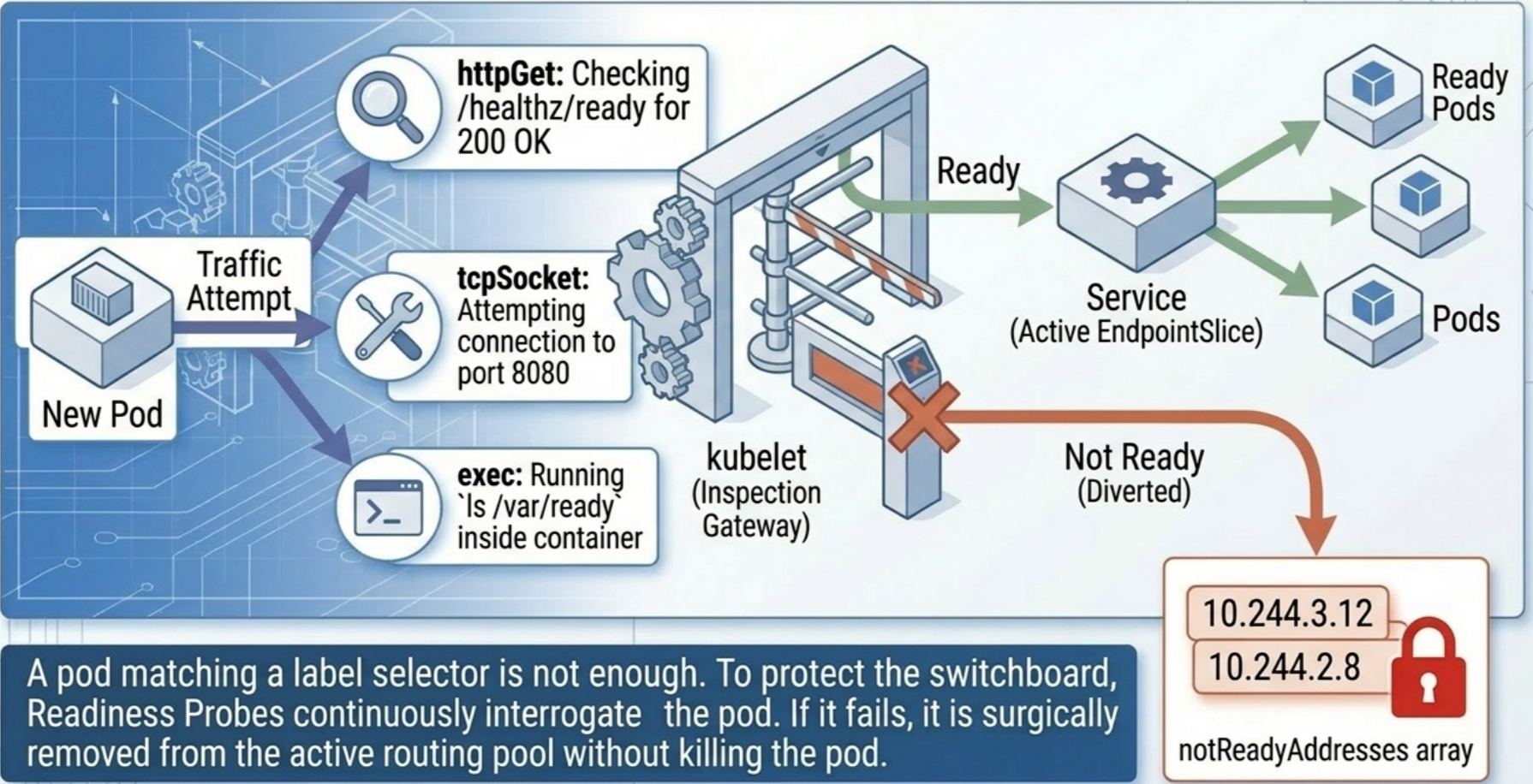

Readiness Probes and Service Endpoints

A Pod matching a Service’s selector is only added to the EndpointSlice when it passes its readiness probe. This tightly couples Service traffic routing to application health.

How Readiness Affects Endpoints

Pod state	Endpoints object	EndpointSlice	Traffic received?
Readiness probe passing	In addresses list	conditions.ready: true	Yes
Readiness probe failing	In notReadyAddresses	conditions.ready: false	No
Pod being deleted	Removed immediately	Removed immediately	No

Note

On deletion, the control plane removes the Pod from endpoints simultaneously with sending SIGTERM - you do not need custom code to force readiness probe failure on shutdown. The native coordination handles it.

Probe Types

Type	Mechanism	Success condition	Best for
exec	Runs a command inside the container	Exit code 0	File-based flags, CLI utilities
httpGet	HTTP GET to a path:port	Response code ≥ 200 and < 400	REST APIs, web apps
tcpSocket	TCP connection attempt	Port opens successfully	Databases, message queues, non-HTTP

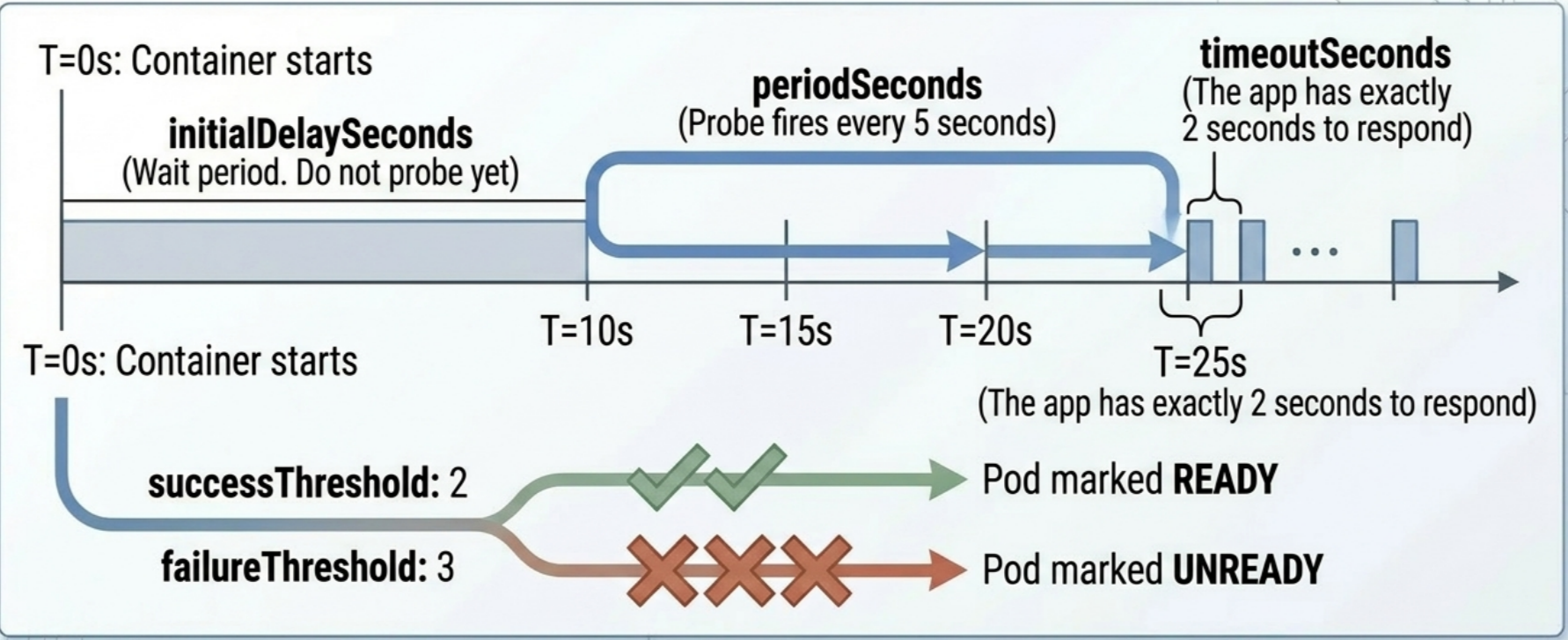

Configuration Fields

readinessProbe:
  httpGet:
    path: /healthz/ready # dedicated readiness endpoint recommended
    port: 8080
  initialDelaySeconds: 10 # wait before first check (after startup probe passes)
  periodSeconds: 5 # check interval
  timeoutSeconds: 2 # max response time (default: 1s)
  successThreshold: 1 # consecutive successes to mark ready
  failureThreshold: 3 # consecutive failures to mark not-ready

8080/healthz/ready

# View probe config in a condensed format
kubectl describe pod <name>
#            delay=10s timeout=2s period=5s #success=1 #failure=3

Best Practices

• Always define a readiness probe on user-facing containers. Without one, Kubernetes assumes the container is ready as soon as the process starts
• Use a dedicated /healthz/ready endpoint that checks only internal dependencies (local DB socket, shared volume, local sidecar) - not external Services
• Never test external dependencies in readiness probes. A 1-second timeout default means any brief network jitter can simultaneously fail all replicas, taking the entire service offline. Recovery requires successThreshold * periodSeconds seconds to restore - easily dozens of seconds for a subsecond glitch

---

Dual-Stack Networking

Kubernetes supports IPv4/IPv6 dual-stack natively. The ipFamilyPolicy field controls how a Service is assigned addresses:

Policy	Behaviour
SingleStack (default)	One IP family, matching the cluster’s primary family
PreferDualStack	Both IPv4 and IPv6 if the cluster supports it; falls back to single-stack
RequireDualStack	Both families required; Service creation fails if cluster is single-stack

spec:
  type: ClusterIP
  ipFamilyPolicy: RequireDualStack
  ipFamilies:
    - IPv6 # primary family listed first
    - IPv4

For dual-stack Services, spec.clusterIP holds the primary IP only; spec.clusterIPs holds both. The order of clusterIPs matches the order of ipFamilies. The EndpointSlice controller creates separate slices for IPv4 and IPv6.

---

End-to-End Traffic Flow

---

Quick Reference

# List / inspect
kubectl get svc
kubectl get svc -o wide                                     # shows selector
kubectl describe svc <name>                                 # selector, ports, endpoints, events

# Create
kubectl create service clusterip my-svc --tcp=80:8080       # --tcp format: <port>:<targetPort>
kubectl expose deployment my-app --port=80 --target-port=8080
kubectl expose deployment my-app --port=80 --target-port=8080 --type=NodePort
kubectl run my-pod --image=nginx --port=80 --expose         # Pod + Service in one shot

# EndpointSlices
kubectl get endpointslices -l kubernetes.io/service-name=<svc>
kubectl describe endpointslice <name>                       # ready status, node, zone

# Local access (no LB needed)
kubectl port-forward svc/<name> 8080:80

# Live connectivity test from inside cluster
kubectl run tmp --image=busybox:1.36.1 --restart=Never -it --rm -- wget <svc-name>:<port>

# Selector / env var inspection
kubectl set selector service <svc> app=new-version
kubectl exec <pod> -- env | grep -i <SERVICE_NAME>
kubectl get pods --show-labels

---

Troubleshooting

Five-Field kubectl describe svc Triage

When a Service is misbehaving, kubectl describe svc <name> is always the first step. These five fields tell the full story:

Field	What to check
Selector	Must exactly match the labels on target Pods
IP	The stable ClusterIP - use this for direct verification, not ping
Port	What clients connect to on the Service
TargetPort	Must match containerPort in the Pod spec
Endpoints	Pod IPs currently receiving traffic; <none> = selector mismatch or no ready Pods

Symptom → Cause → Fix

Symptom	Likely cause	Diagnostic	Fix
EXTERNAL-IP stuck at <pending>	No cloud LB integration (bare-metal cluster)	kubectl describe svc <name> → Events	Install MetalLB; use port-forward for local dev
Endpoints shows <none>	Selector mismatch - no matching Pods	kubectl describe svc <name> → Selector; kubectl get pods --show-labels	Align Service selector with Pod labels
Endpoints populated but traffic refused	targetPort / containerPort mismatch	kubectl describe svc → TargetPort; check app port in container	Fix targetPort to match the port the app actually listens on
Some Pod IPs show Ready: false in EndpointSlice	Pod failing readiness probe	kubectl describe endpointslice <name>	Fix readiness probe; check app startup time
Client gets 502 / connection refused	No healthy Pods receiving traffic	kubectl get endpointslices -l kubernetes.io/service-name=<svc>	Check readiness probes, Pod logs
DNS name doesn’t resolve	Cross-namespace resolution using bare name	kubectl exec <pod> -- nslookup <svc>	Use FQDN: <svc>.<namespace>.svc.cluster.local
ping <svc-name> → 100% loss	ClusterIP is virtual - no ICMP interface	Expected; not an error	Use curl or wget to test connectivity
New Pod can’t see Service via env vars	Service created after Pod started	kubectl exec <pod> -- env | grep <SVC>	Kill container to restart: kubectl exec <pod> -- kill 1; or use DNS
Local traffic policy: connection hangs	No backend Pods on receiving node	kubectl get pods -o wide	Set healthCheckNodePort so LB skips empty nodes

Live Connectivity Test

The fastest way to verify Service routing from inside the cluster:

# Spin up a temporary Pod and hit the Service by DNS name
kubectl run tmp --image=busybox:1.36.1 --restart=Never -it --rm -- wget -qO- <svc-name>:<port>

# Test cross-namespace
kubectl run tmp --image=busybox:1.36.1 --restart=Never -it --rm -- wget -qO- <svc>.<namespace>:<port>

# Use curl for HTTP status code details
kubectl run tmp --image=curlimages/curl --restart=Never -it --rm -- curl -sv http://<svc-name>:<port>

If the DNS resolution succeeds and the response comes back, CoreDNS, EndpointSlices, and kube-proxy are all working correctly.
